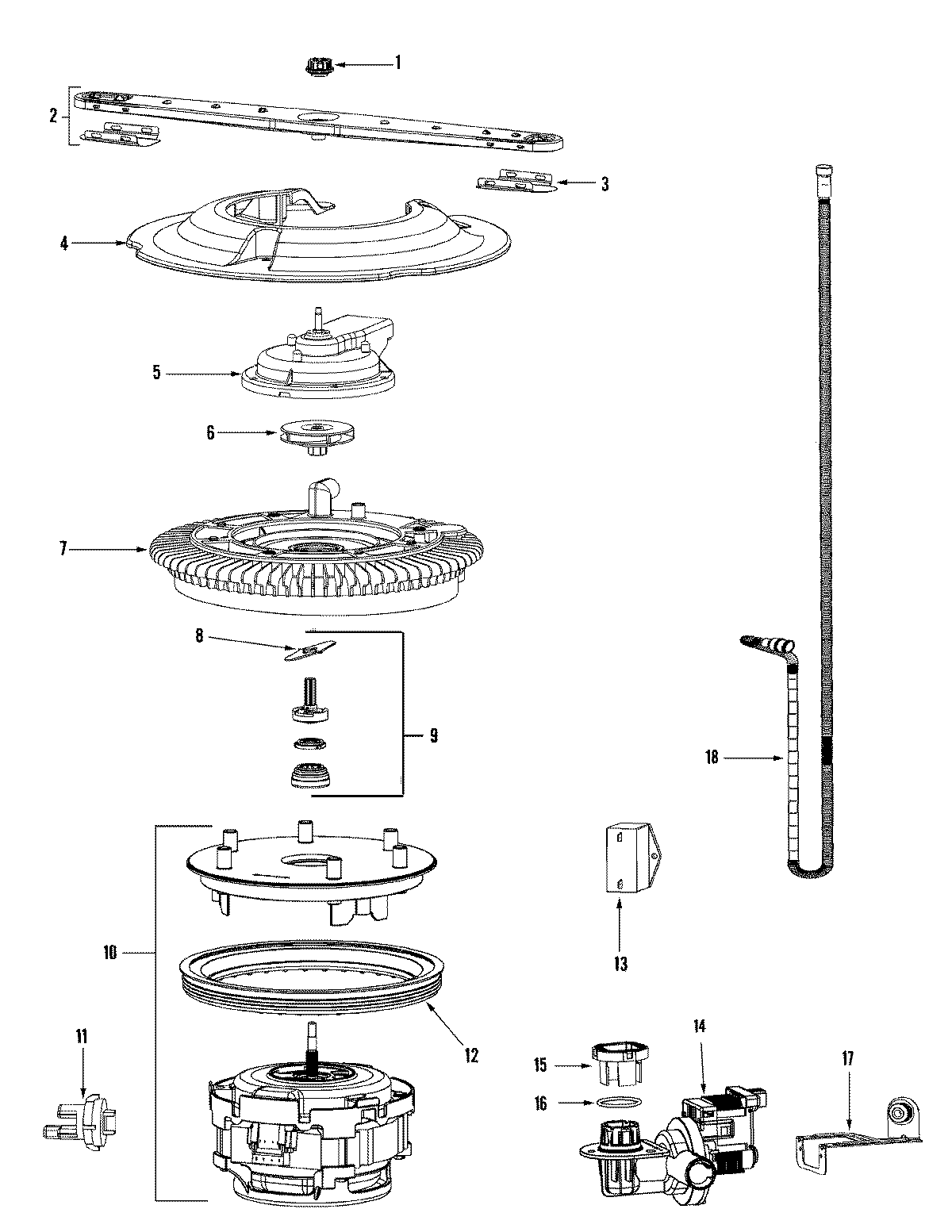

MDBTT70AWB 03 – PUMP & MOTOR

MDBTT70AWB 03 – PUMP & MOTOR

Written by

in

MDBTT70AWB 03 – PUMP & MOTOR

Products

PositionProduct
1WP99002654 Whirlpool Nut
2WP6-917642 Whirlpool Dishwasher Wash Arm
3MAY 99002653
4MAY 99002666
4WPW10166788 Whirlpool Dishwasher Filter Frame
5SCREW, DISCHARGE HOUSING
5DISCHARGE HOUSING ASSY (UPR)
6WP99002659 Whirlpool Impeller
6MAY 99002660
6MAY 99003482
7WPW10192799 Whirlpool Dishwasher Accumulator
7SCREW, STAINLESS PAN HEAD
7SCREW, No.8X1/2 HEX WASHER HEAD
76-918900 Whirlpool Dishwasher Bracket
8MAY 99003427
8MAY 99002270
9MAY 99003341
9Dispenser, Rinse Aid
10WP99002614 Whirlpool Dishwasher Rinse Knob
10WASH MOTOR ASSY SEAL NOT INCL
11MAY 99002586
11MAY 99002186
1299002590 Whirlpool Dishwasher Door Vent Bezel
14MAY W10200518
14MAY W10119816
14MAY 99002750
15MAY 99003309
16MAY 99002857
17MAY 99002752
17MAY 99002657
18WP99002652 Whirlpool Drain Hose
18WP99002656 Whirlpool Dishwasher Drain Clamp
