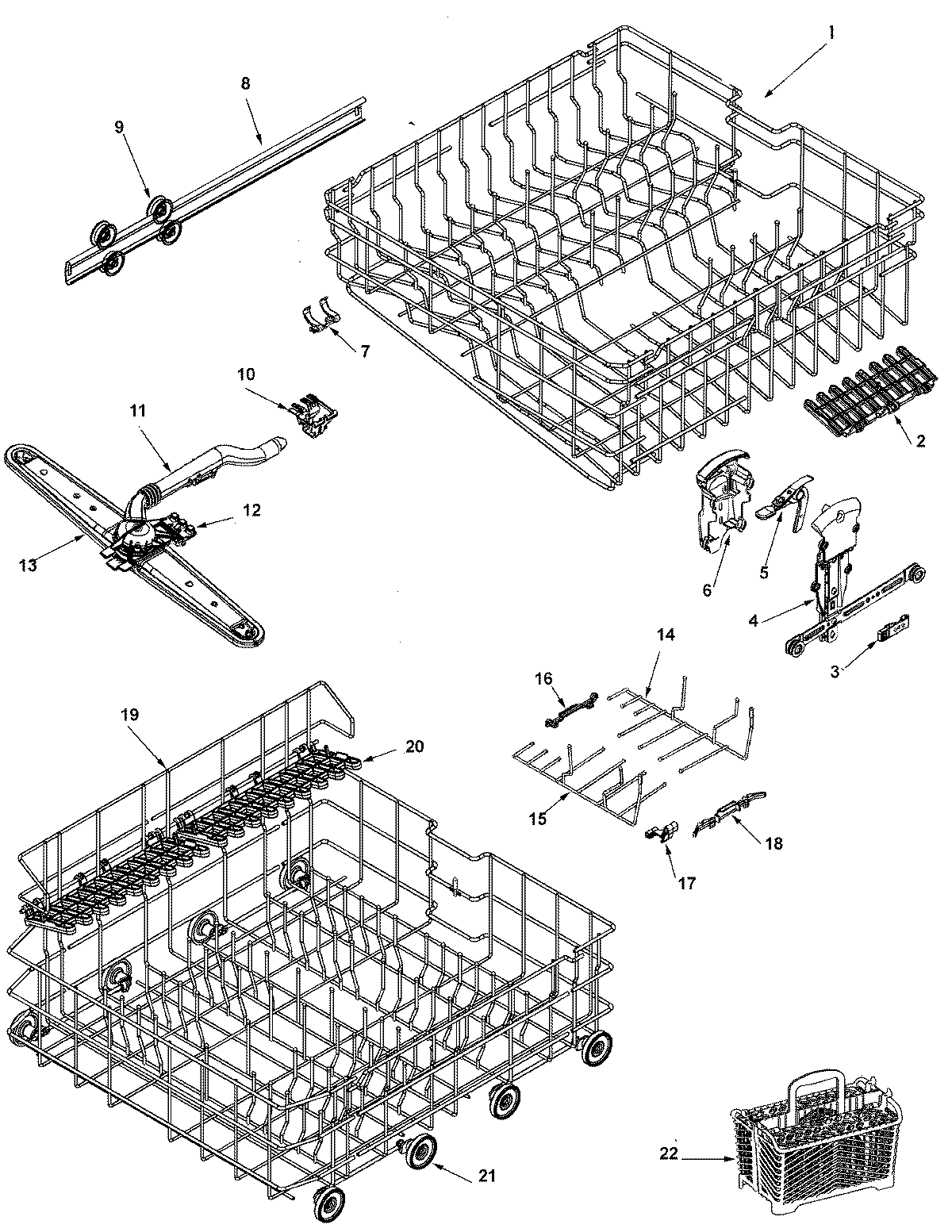

MDBTT70AWQ 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003460
1	MAY 99002905
1	MAY 99003459
1	MAY 99003480
2	MAY 99002671
3	MAY 99003020
4	MAY 99003008
4	MAY 99003009
4	MAY 99003010
5	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
6	MAY 99003011
8	TRACK, RACK
8	MAY 99003476
9	WP99002947 Whirlpool Tub Wheel
9	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
10	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
11	WASH MANIFOLD ASSY (UPR)
12	CLIP, UPR WASH MANIFOLD (FRT)
13	WP99003070 Whirlpool Dishwasher Wash Arm
13	SCREW, TRUSS HEAD (10-18X.75)
14	WP99003497 Whirlpool Dishwasher Tine Row
15	WP99003496 Whirlpool Convertible Row Tine
17	WP99002687 Whirlpool Tine Pivot Clip
18	MAY 99002689
18	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
19	MAY 99003461
20	MAY 99002672
21	WP99002780 Whirlpool Lower Wheel Assembly
22	MAY 99002683
22	WP6-918873 Whirlpool Silverware Basket
22	MAY 99002697
