MDBTT70AWS 02 – DOOR

MDBTT70AWS 02 – DOOR

Written by

in

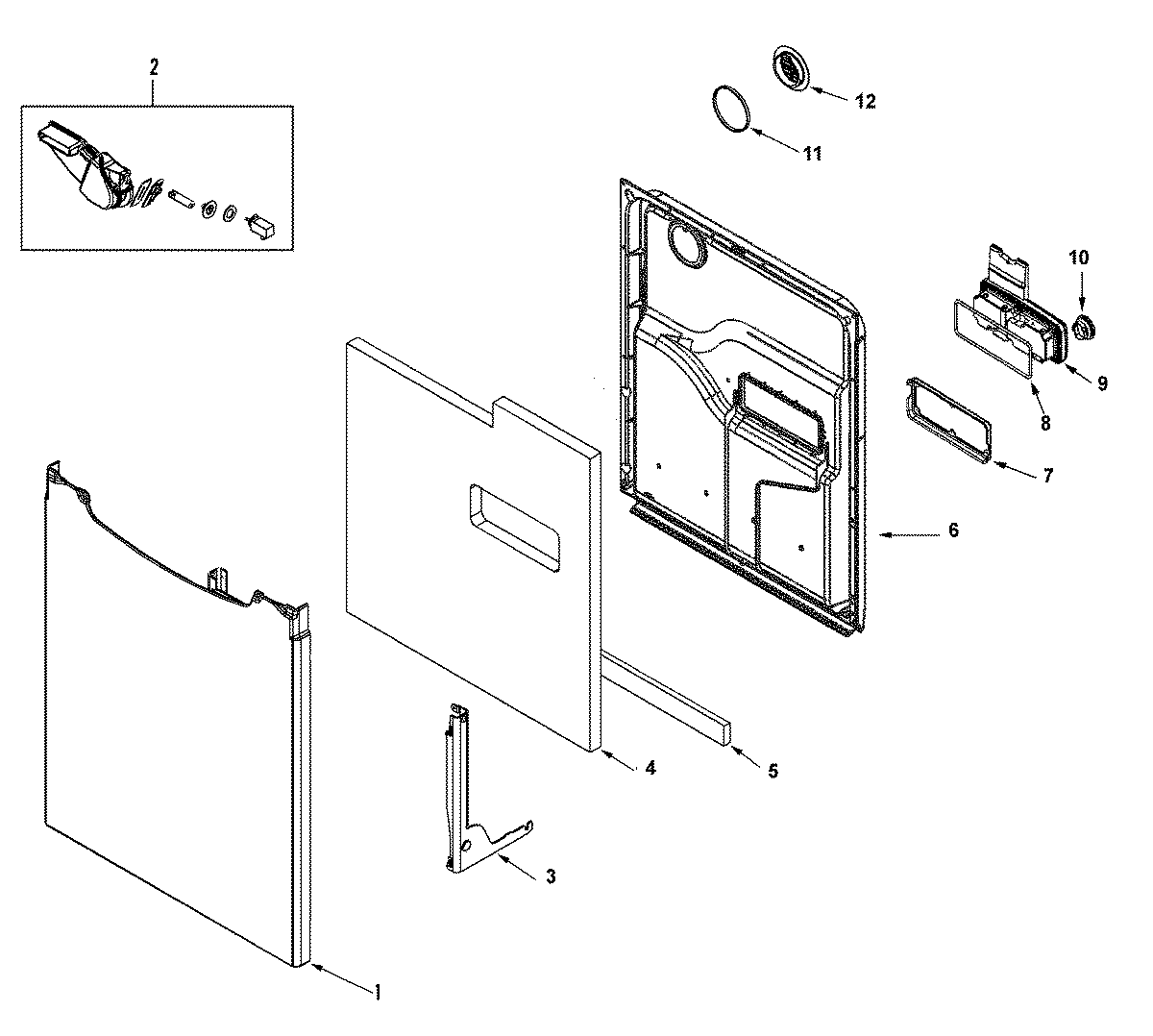

MDBTT70AWS 02 – DOOR

Products

PositionProduct
1MAY 99002771
2VENT HOUSING ASSEMBLY
3WPW10118637 Whirlpool Dishwasher Bracket
3MAY 99001075
3MAY 99002929
4INSULATION, DOOR
5WPW10117748 Whirlpool Dishwasher Insulation Pad
6Foam Strip(Long)
6MAY 99003482
6MAY 99003541
6DOOR, INNER (W/DAMPER)
6DOOR LINER, SECONDARY
6WPY912620 Whirlpool Dishwasher Screw
7SCREW, No.8X1/2 HEX WASHER HEAD
76-918900 Whirlpool Dishwasher Bracket
8MAY 99002270
9Dispenser, Rinse Aid
10WP99002614 Whirlpool Dishwasher Rinse Knob
11MAY 99002186
1299002590 Whirlpool Dishwasher Door Vent Bezel
