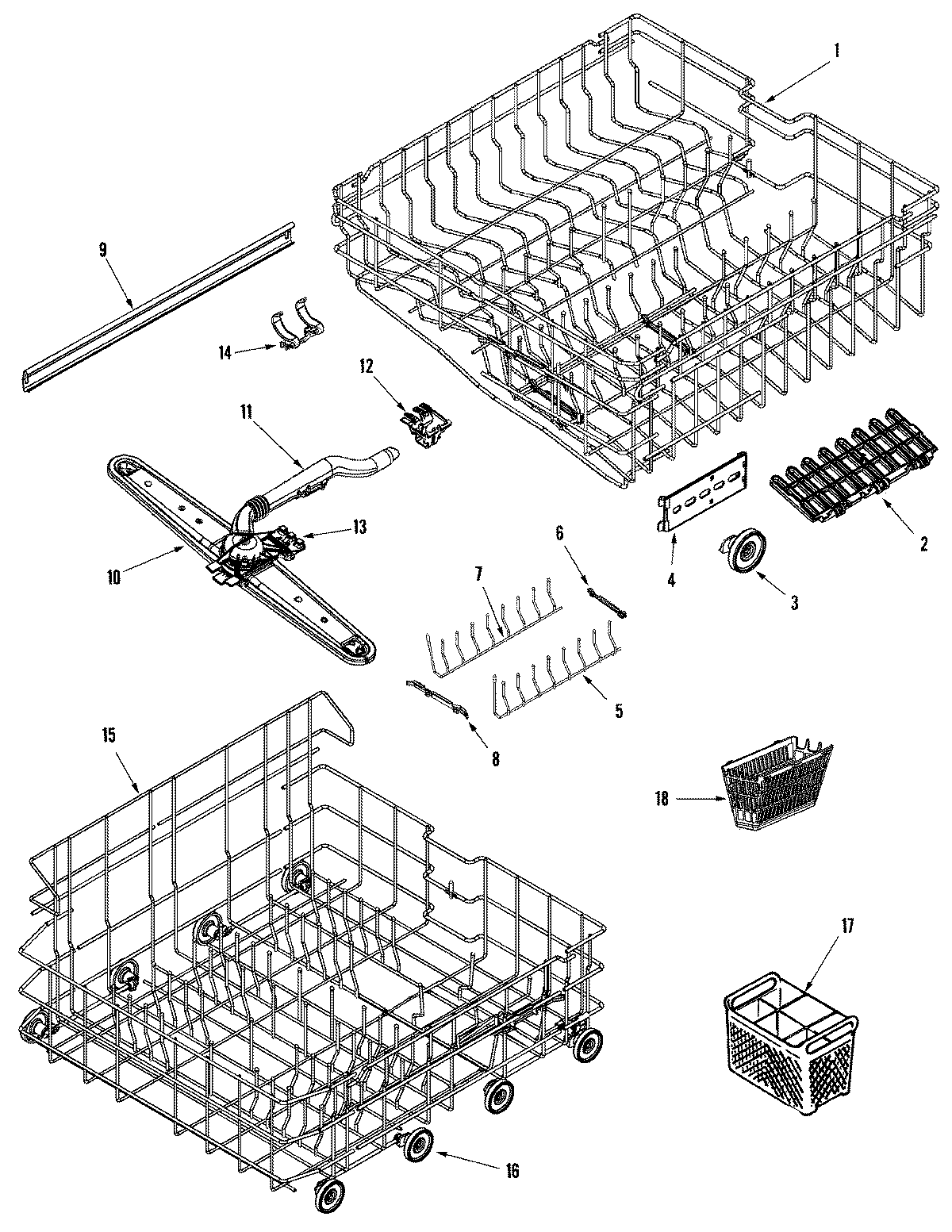

MDBTT75AWS 04 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003315
2	MAY 99002671
3	WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4	MAY 99003053
4	MAY 99003052
5	WP99003496 Whirlpool Convertible Row Tine
6	WP99002709 Whirlpool Tine Pivot Clip
8	WP99002710 Whirlpool Dishwasher Fold-Down Latch
9	WP99003281 Whirlpool Gray Rail Stop
9	MAY 99003069
9	MAY 99003066
9	WP99003068 Whirlpool Dishwasher Bearing
10	WP99003070 Whirlpool Dishwasher Wash Arm
11	WASH MANIFOLD ASSY (UPR)
12	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
13	CLIP, UPR WASH MANIFOLD (FRT)
15	MAY 99002905
15	MAY 99003311
16	WP99002780 Whirlpool Lower Wheel Assembly
17	WP6-918873 Whirlpool Silverware Basket
18	W11175758 Whirlpool Dishwasher Basket Ware
