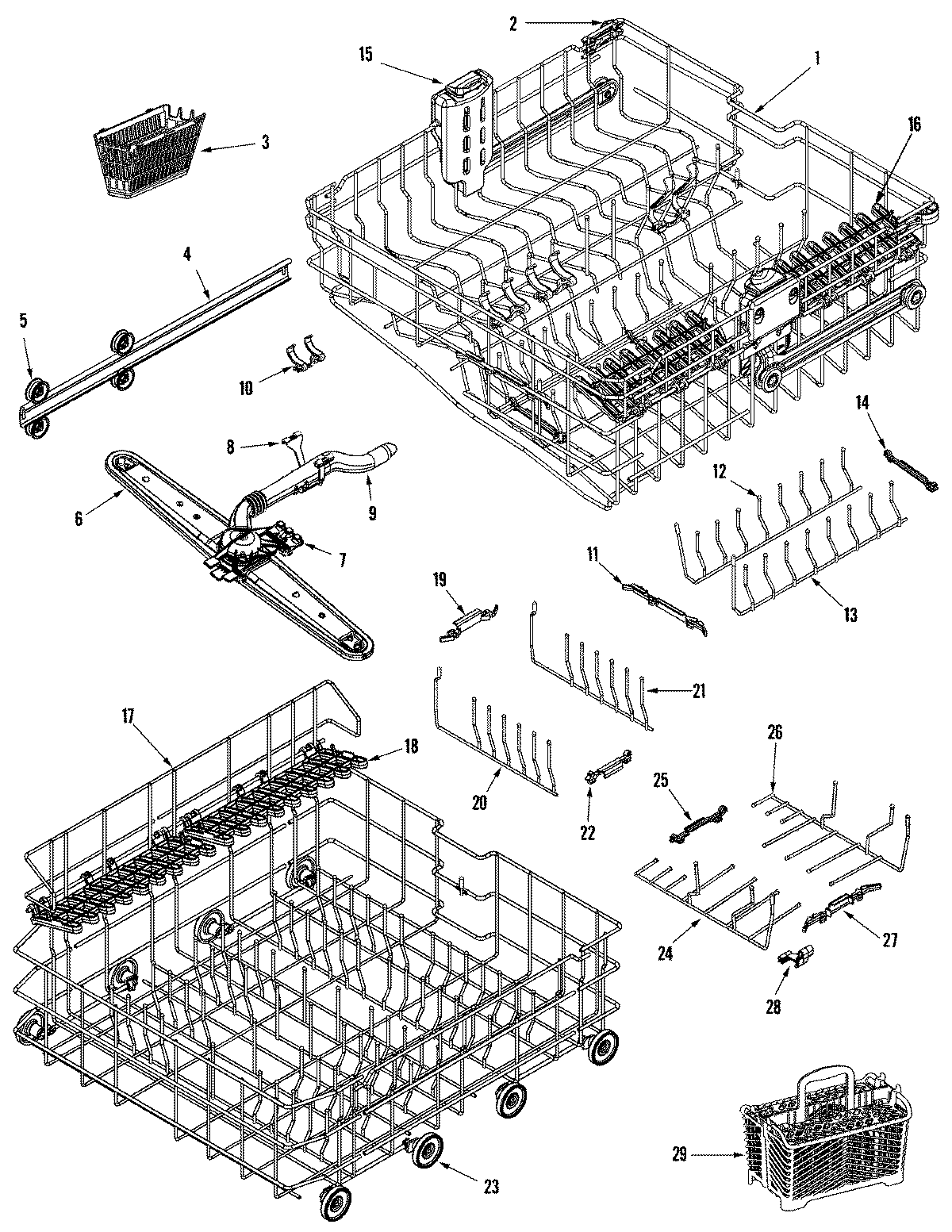

MDBTT79AWW 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002816
1	MAY 99003232
2	MAY 99002853
3	W11175758 Whirlpool Dishwasher Basket Ware
4	WPW10261227 Whirlpool Dishwasher Stop Assembly
4	TRACK, RACK
5	WP99002947 Whirlpool Tub Wheel
6	WP99003070 Whirlpool Dishwasher Wash Arm
6	SCREW, TRUSS HEAD (10-18X.75)
7	CLIP, UPR WASH MANIFOLD (FRT)
8	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
9	WASH MANIFOLD ASSY (UPR)
11	WP99002710 Whirlpool Dishwasher Fold-Down Latch
13	MAY 99002820
14	WP99002709 Whirlpool Tine Pivot Clip
15	MAY 99002782
15	MAY 99002783
15	MAY 99003011
15	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
15	MAY 99003009
15	MAY 99003008
15	MAY 99003020
15	MAY 99003010
16	MAY 99002716
17	MAY 99002817
17	MAY 99002967
17	MAY 99002017
18	MAY 99002672
19	WP99003496 Whirlpool Convertible Row Tine
23	WP99002780 Whirlpool Lower Wheel Assembly
24	12002750 Whirlpool Dishwasher Convertible Tine Kit
25	WP99002687 Whirlpool Tine Pivot Clip
27	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
28	MAY 99002689
29	WP6-918873 Whirlpool Silverware Basket
29	MAY 99002683
29	MAY 99002697
