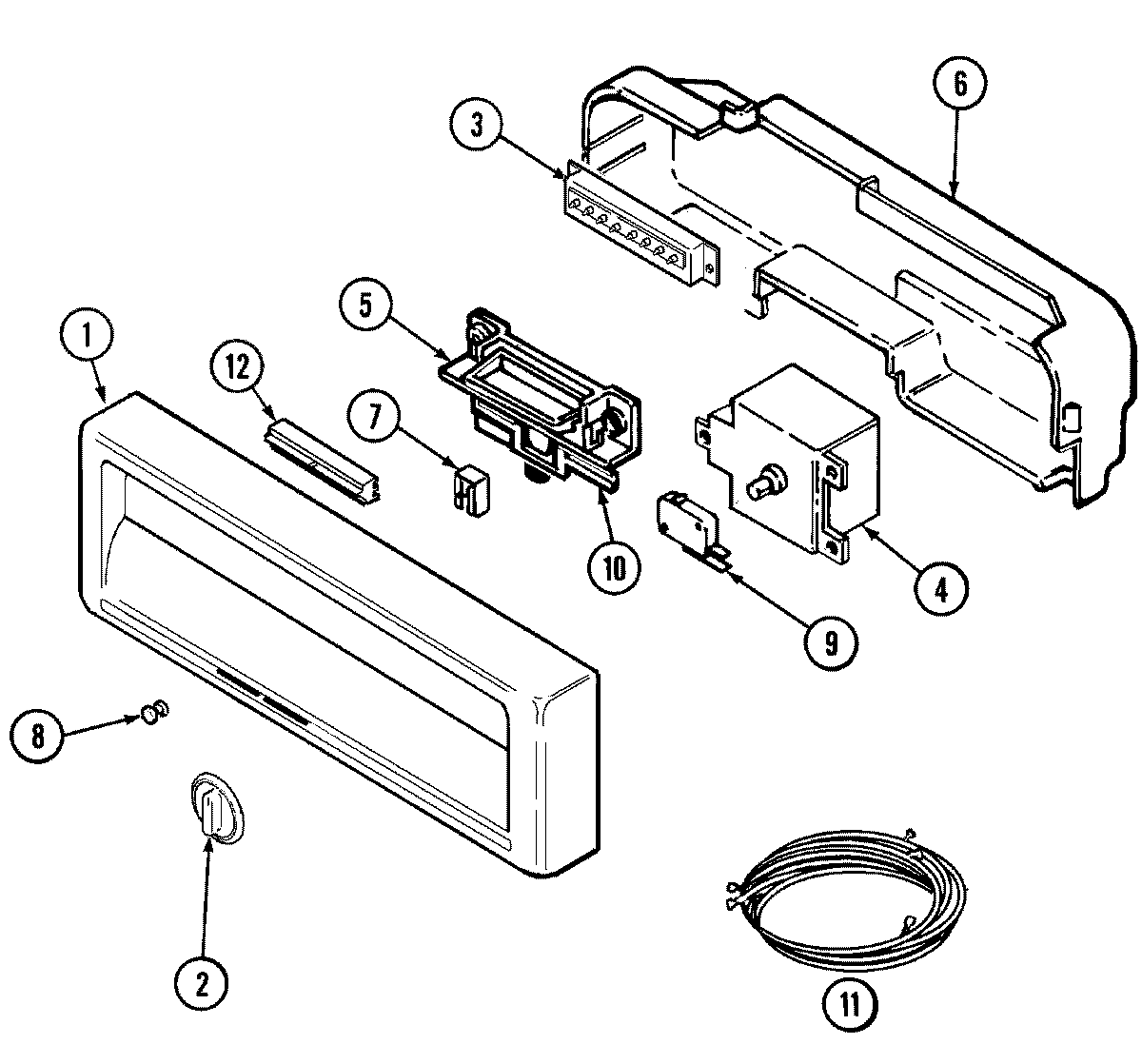

MDC4100AWX 02 – CONTROL PANEL

MDC4100AWX 02 – CONTROL PANEL

Written by

in

MDC4100AWX 02 – CONTROL PANEL

Products

PositionProduct
1MAY 99002094
2MAY 99001780
3MAY 99001855
4MAY 99002057
5SCREW, No.8X1/2 HEX WASHER HEAD
5WP99002240 Whirlpool Dishwasher Bracket
599002254 Whirlpool Dishwasher Door Switch with Holder
6MAY 99001545
7WP903115 Whirlpool Dishwasher Indicator Light
8MAY 99001860
9MAY 903086
9WP99002207 Whirlpool Dishwasher Door Switch
10W10834433 Whirlpool Dishwasher Handle
10MAY 99001402
10MAY 99001401
11MAY 99002104
11MAY 99002045
12MAY 99002009
13MAY 99002024
