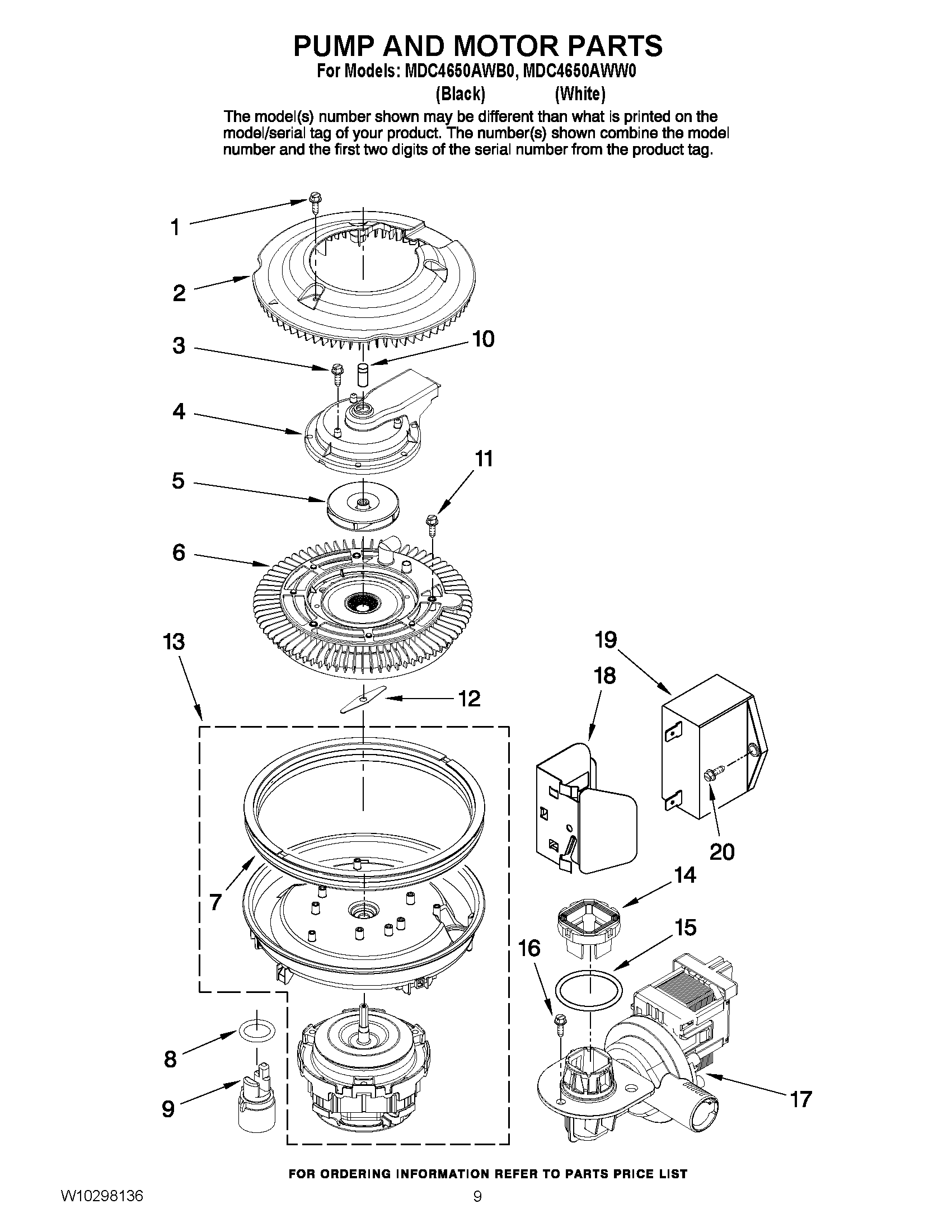

MDC4650AWW0 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	MAY W10166788
3	SCREW, STAINLESS PAN HEAD
4	MAY W10296525
5	WP99002659 Whirlpool Impeller
6	MAY W10192799
7	GASKET, PUMP
8	MAY 6-916444
9	MAY W10120019
10	MAY 6-916824
11	SCREW, DISCHARGE HOUSING
12	MAY 6-919353
13	MAY W10118627
14	MAY 99003309
15	MAY 6-917029
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY W10119816
18	MAY W10167912
19	CAPACITOR, MOTOR
20	SCREW 10-32X.400 (T-20 HEAD)
