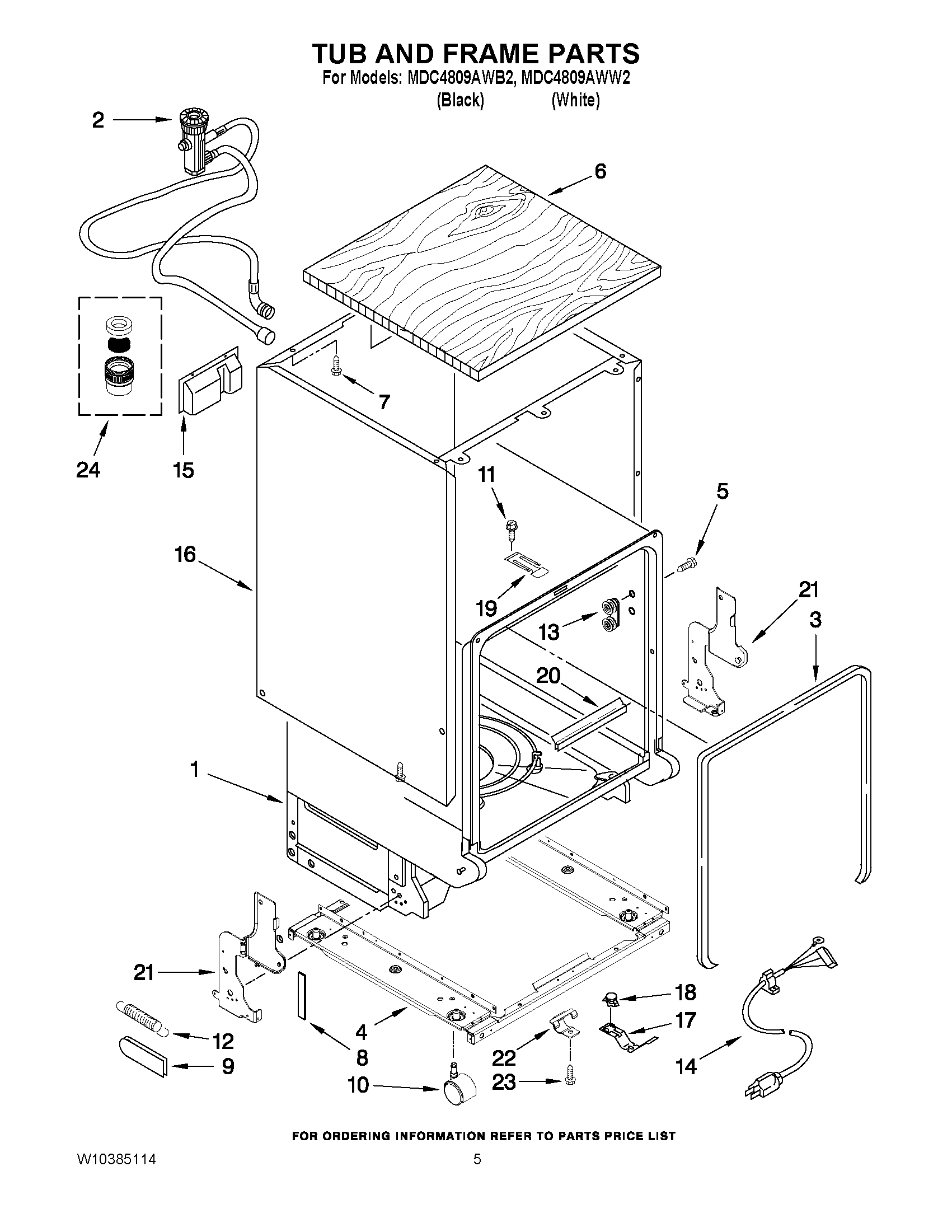

MDC4809AWB2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10254860
2	COUPLER ASSY
3	MAY W10284090
4	FRAME ASSY
5	SCREW
6	PANEL-TOP
7	SCREW
8	SLEEVE, FRICTION
9	MAY 8268990
10	MAY 8559933
11	MAY W10165274
12	MAY 8524473
13	MAY 8270016
14	CORD-POWER
15	MAY W10219673
16	SHELL ASSY (BLACK)
16	SHELL ASSY (WHITE)
17	MAY 3378595
18	MAY 661566
19	STRIKE, LATCH
20	PROTECTOR, EDGE (LONG)
20	PROTECTOR, EDGE (SHORT)
21	MAY W10185369
21	MAY W10185368
22	MAY W10254857
23	MAY 3364926
24	ADAPTER ASSY
