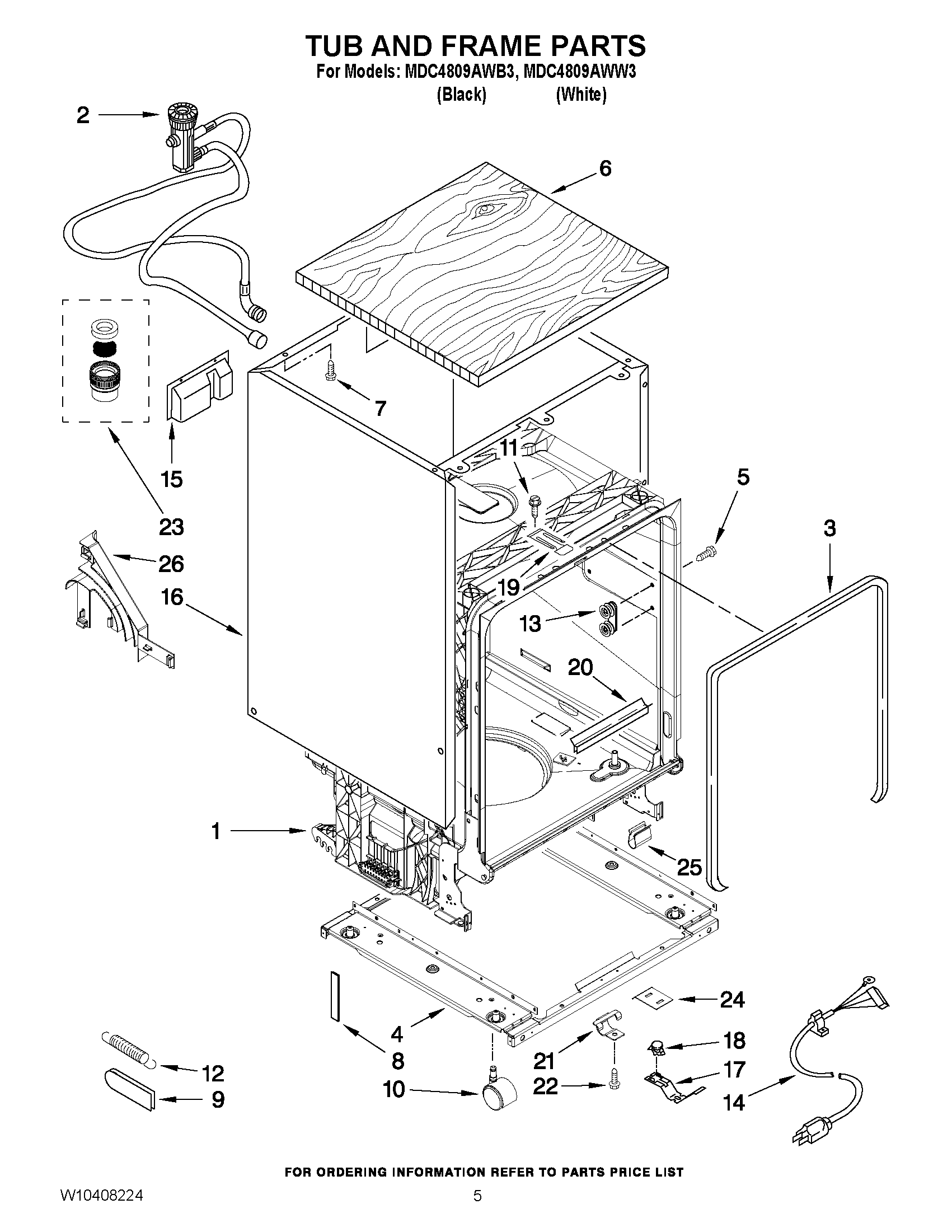

MDC4809AWB3 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2COUPLER ASSY
3MAY W10284090
4FRAME ASSY
5MAY W10341745
6PANEL-TOP
7SCREW
8SLEEVE, FRICTION
9MAY 8268990
10MAY 8559933
11MAY W10165274
12MAY 8524473
13MAY 8270016
14CORD-POWER
15MAY W10219673
16SHELL ASSY (BLACK)
16SHELL ASSY (WHITE)
17MAY 3378595
18MAY 661566
19STRIKE, LATCH
20PROTECTOR, EDGE (LONG)
20PROTECTOR, EDGE (SHORT)
21MAY W10254857
22MAY 3364926
23ADAPTER ASSY
24SHIELD, THERMOSTAT
25MAY W10267528
26MAY W10253614
