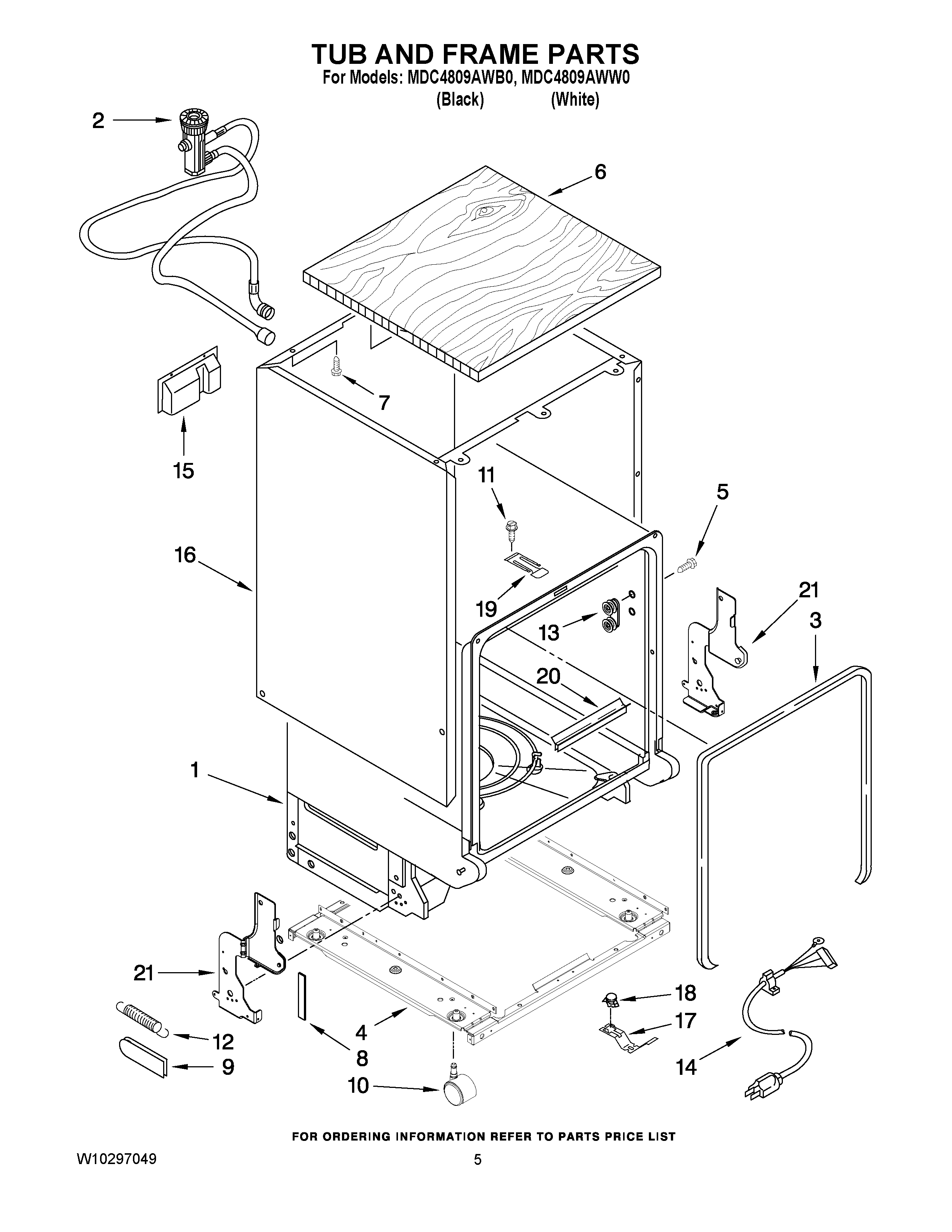

MDC4809AWW0 05 – TUB AND FRAME PARTS

MDC4809AWW0 05 – TUB AND FRAME PARTS

Written by

in

MDC4809AWW0 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10254860
2COUPLER ASSY
3MAY 8268888
4FRAME ASSY
5SCREW
6PANEL-TOP
7SCREW
8SLEEVE, FRICTION
9MAY 8268990
10MAY 8559933
11MAY W10165274
12MAY 8524473
13MAY 8270016
14CORD-POWER
15MAY W10219673
16SHELL ASSY (WHITE)
16SHELL ASSY (BLACK)
17MAY 3378595
18MAY 661566
19STRIKE, LATCH
20PROTECTOR, EDGE (LONG)
20PROTECTOR, EDGE (SHORT)
21MAY W10185369
21MAY W10185368
