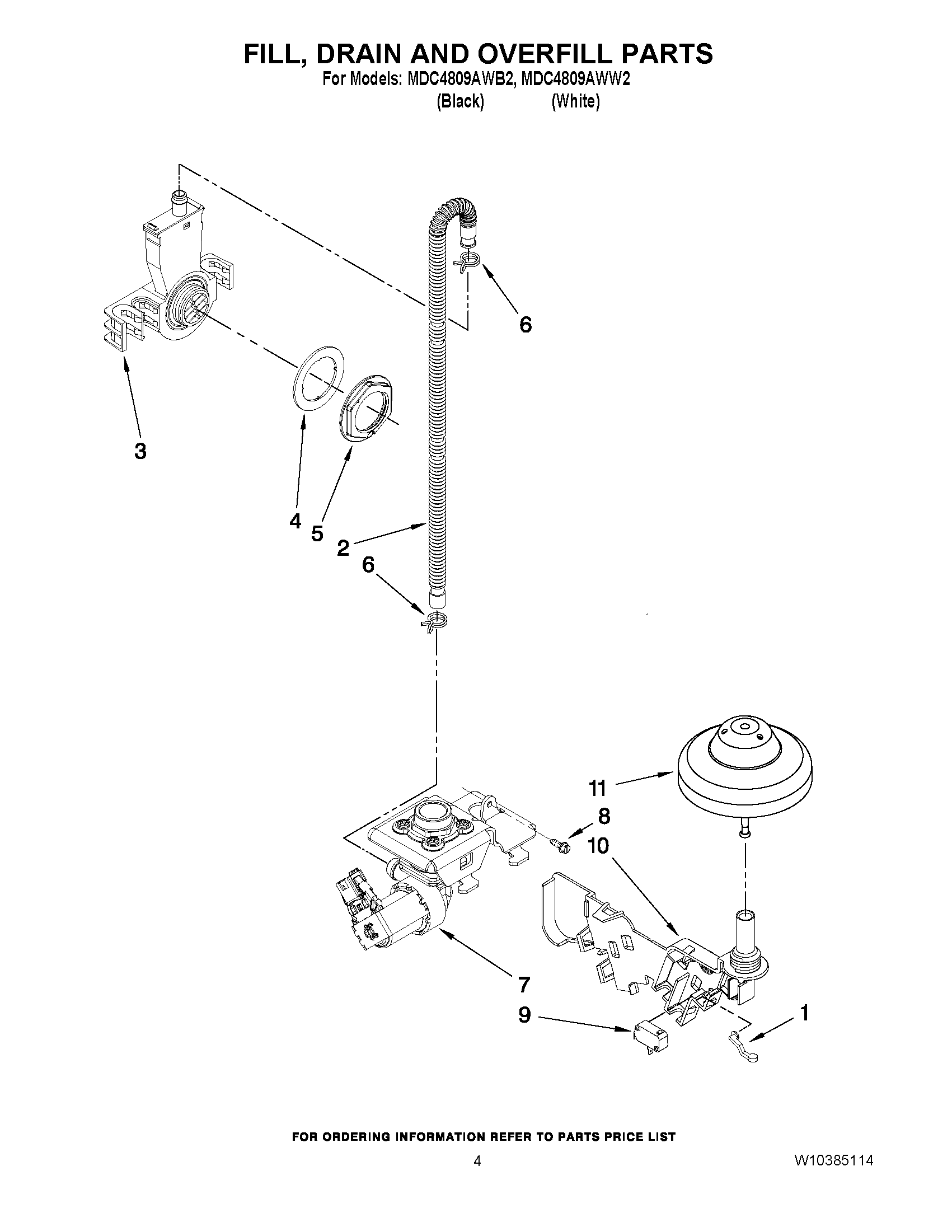

MDC4809AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

MDC4809AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

MDC4809AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFLOW SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5MAY 8531326
6MAY 371505
7MAY W10195049
8Screw
9SWITCH, OVERFILL
10STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
11MAY 8268913
