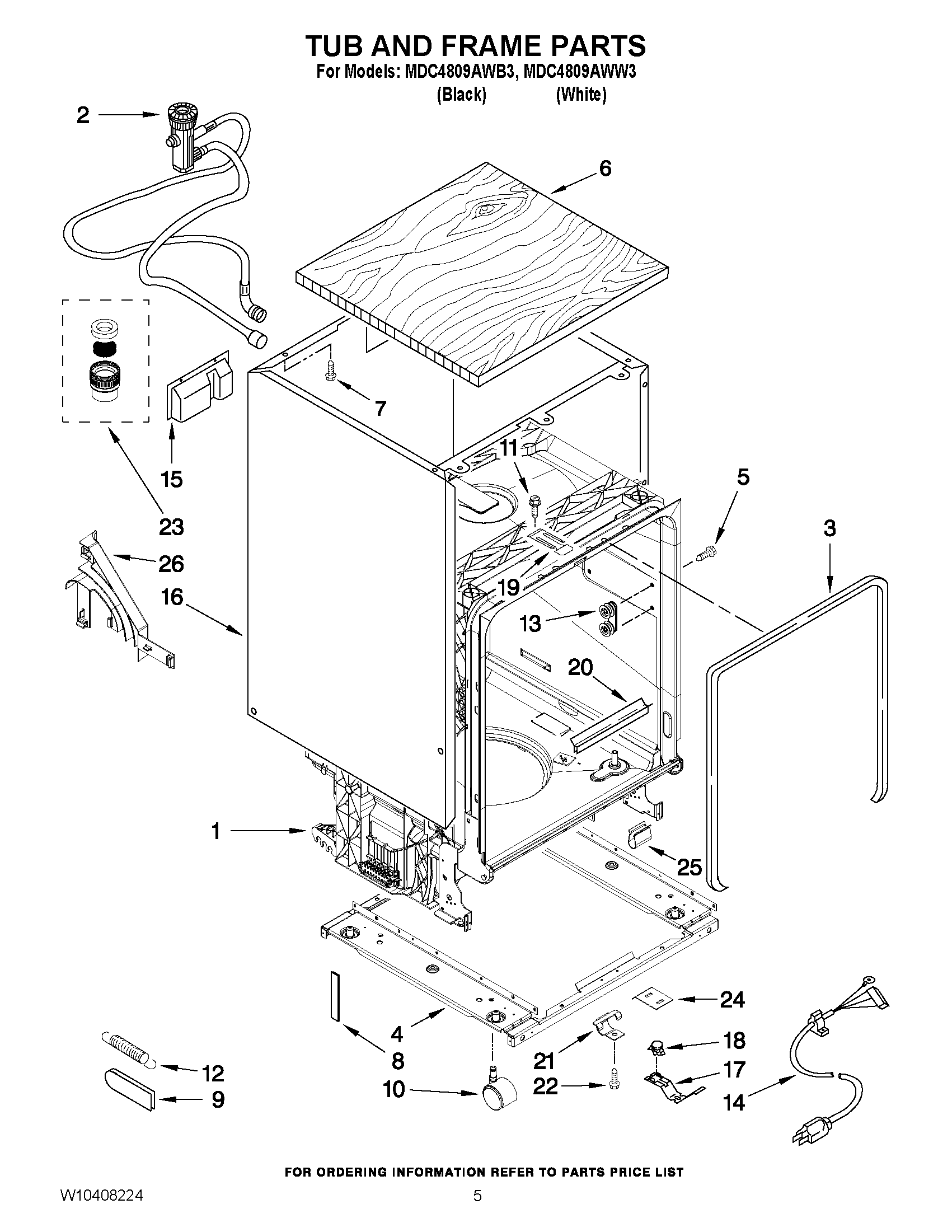

MDC4809AWW3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	COUPLER ASSY
3	MAY W10284090
4	FRAME ASSY
5	MAY W10341745
6	PANEL-TOP
7	SCREW
8	SLEEVE, FRICTION
9	MAY 8268990
10	MAY 8559933
11	MAY W10165274
12	MAY 8524473
13	MAY 8270016
14	CORD-POWER
15	MAY W10219673
16	SHELL ASSY (BLACK)
16	SHELL ASSY (WHITE)
17	MAY 3378595
18	MAY 661566
19	STRIKE, LATCH
20	PROTECTOR, EDGE (LONG)
20	PROTECTOR, EDGE (SHORT)
21	MAY W10254857
22	MAY 3364926
23	ADAPTER ASSY
24	SHIELD, THERMOSTAT
25	MAY W10267528
26	MAY W10253614
