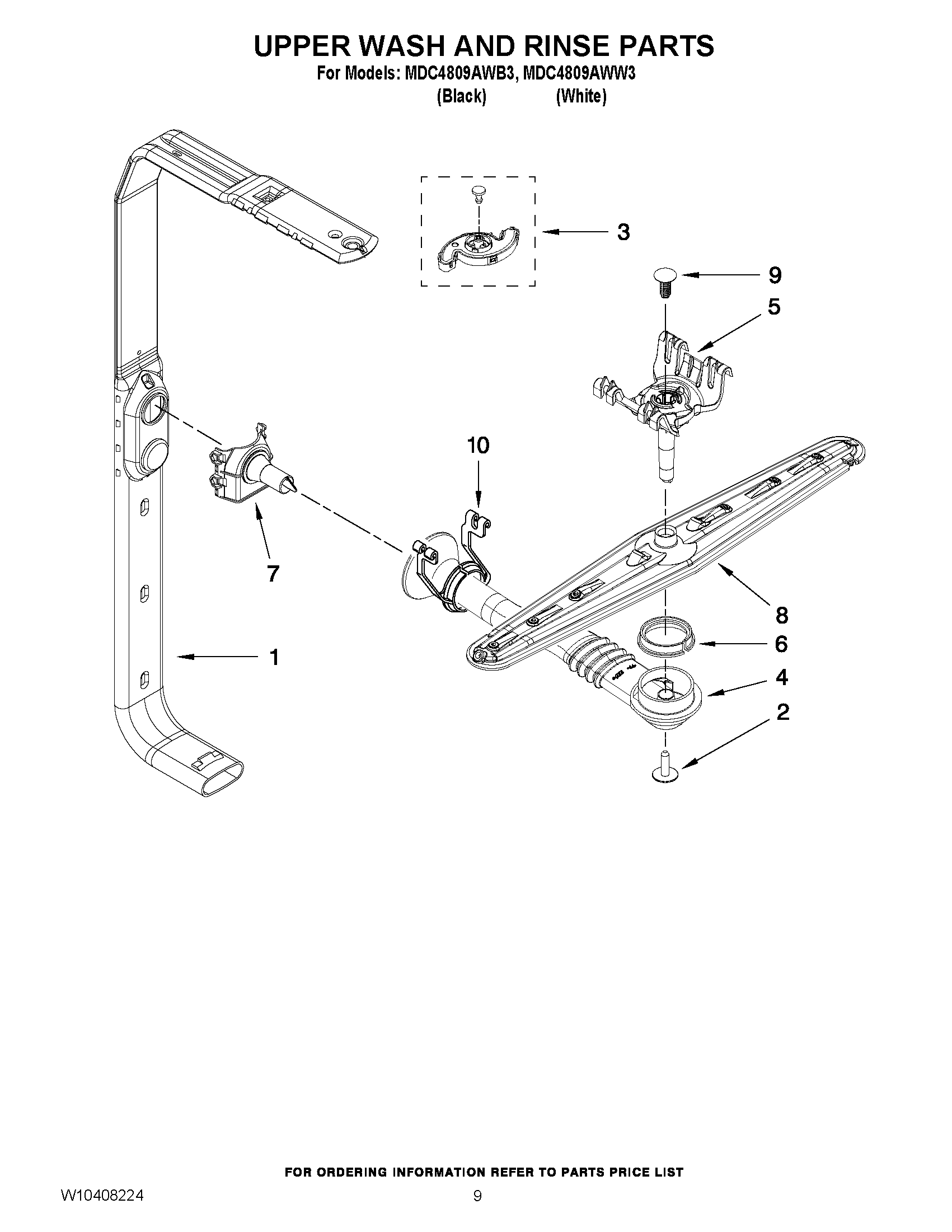

MDC4809AWW3 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	FEED TUBE SILVERWARE ZONE (ALSO INC. No.3)
2	MAY 8533889
3	SPRAYARM, 3RD LEVEL
4	MAY W10258149
5	MOUNT,SPRAY ARM
6	MAY 8268433
7	NOZZLE-FEED
8	MAY 8535083
9	RETAINER, PUSH-IN
10	MAY 3385160
