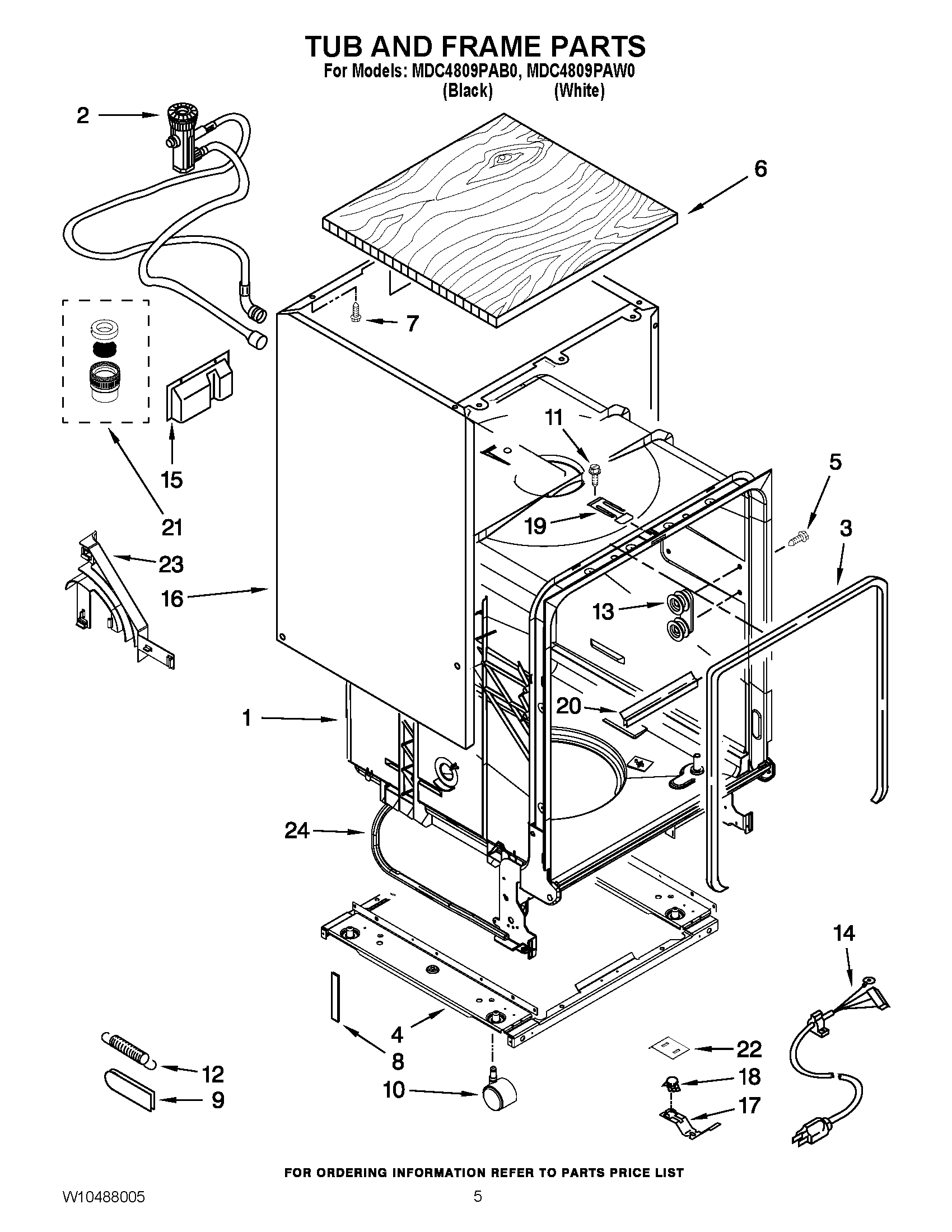

MDC4809PAB0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY W10354998
3	MAY W10284090
4	FRAME ASSY
5	MAY W10341745
6	PANEL-TOP
7	SCREW
8	SLEEVE, FRICTION
9	MAY 8268990
10	MAY 8559933
11	MAY W10165274
12	MAY W10337934
13	MAY 8270016
14	CORD-POWER
15	MAY W10219673
16	SHELL ASSEMBLY (WHITE)
16	SHELL ASSEMBLY (BLACK)
17	MAY 3378595
18	MAY W10339474
19	STRIKE, LATCH
20	PROTECTOR, EDGE (LONG)
20	PROTECTOR, EDGE (SHORT)
21	ADAPTER ASSY
22	SHIELD, THERMOSTAT
23	MAY 3378109
24	SUPPORT ASSEMBLY, BOTTOM
