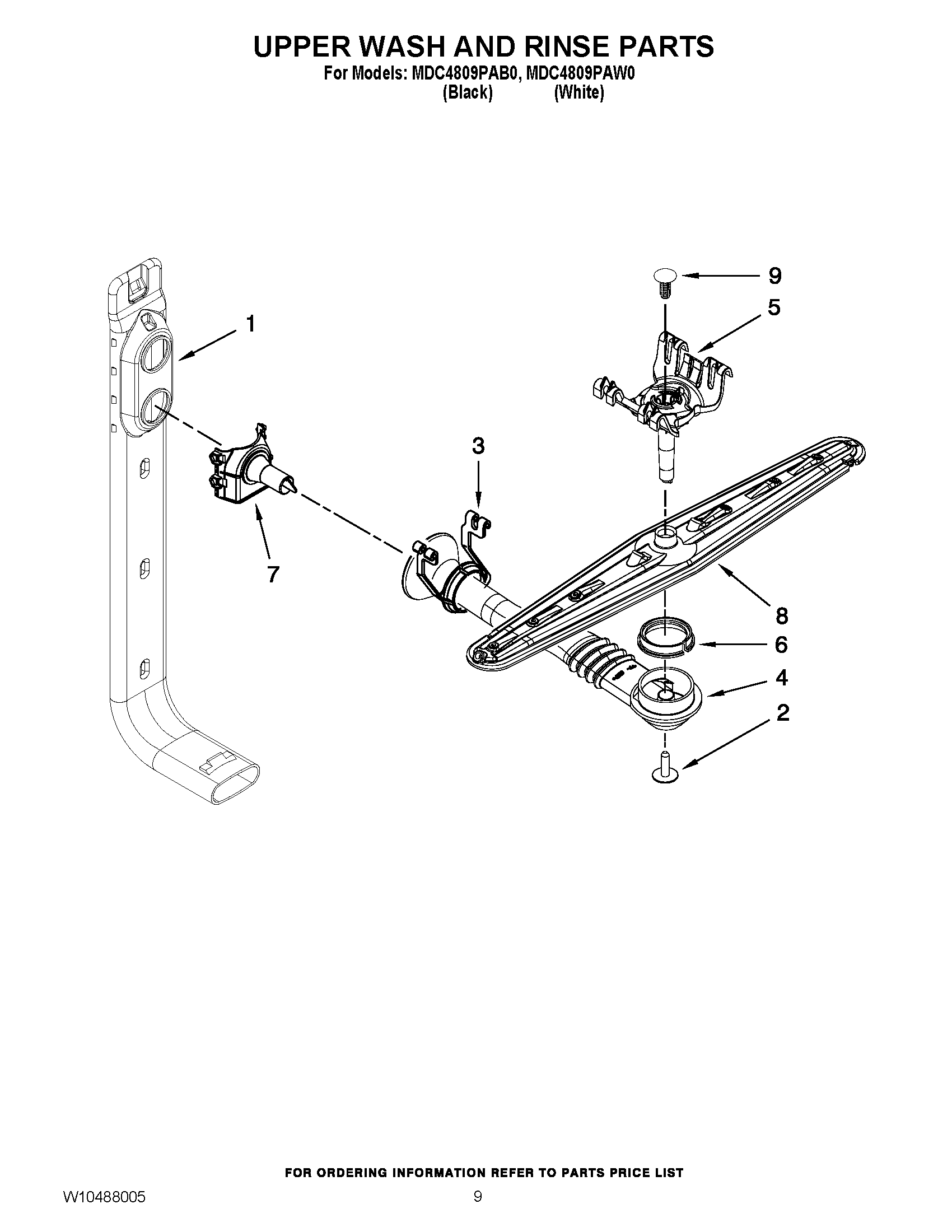

MDC4809PAW0 07 – UPPER WASH AND RINSE PARTS
Written by
in
MDC4809PAW0 07 – UPPER WASH AND RINSE PARTS
Products
| Position | Product |
|---|---|
| 1 | FEED TUBE ASSEMBLY |
| 2 | MAY W10349488 |
| 3 | MAY 3385160 |
| 4 | MAY W10258149 |
| 5 | MOUNT,SPRAY ARM |
| 6 | MAY 8268433 |
| 7 | NOZZLE-FEED |
| 8 | SPRAY ARM |
| 9 | RETAINER, PUSH-IN |
