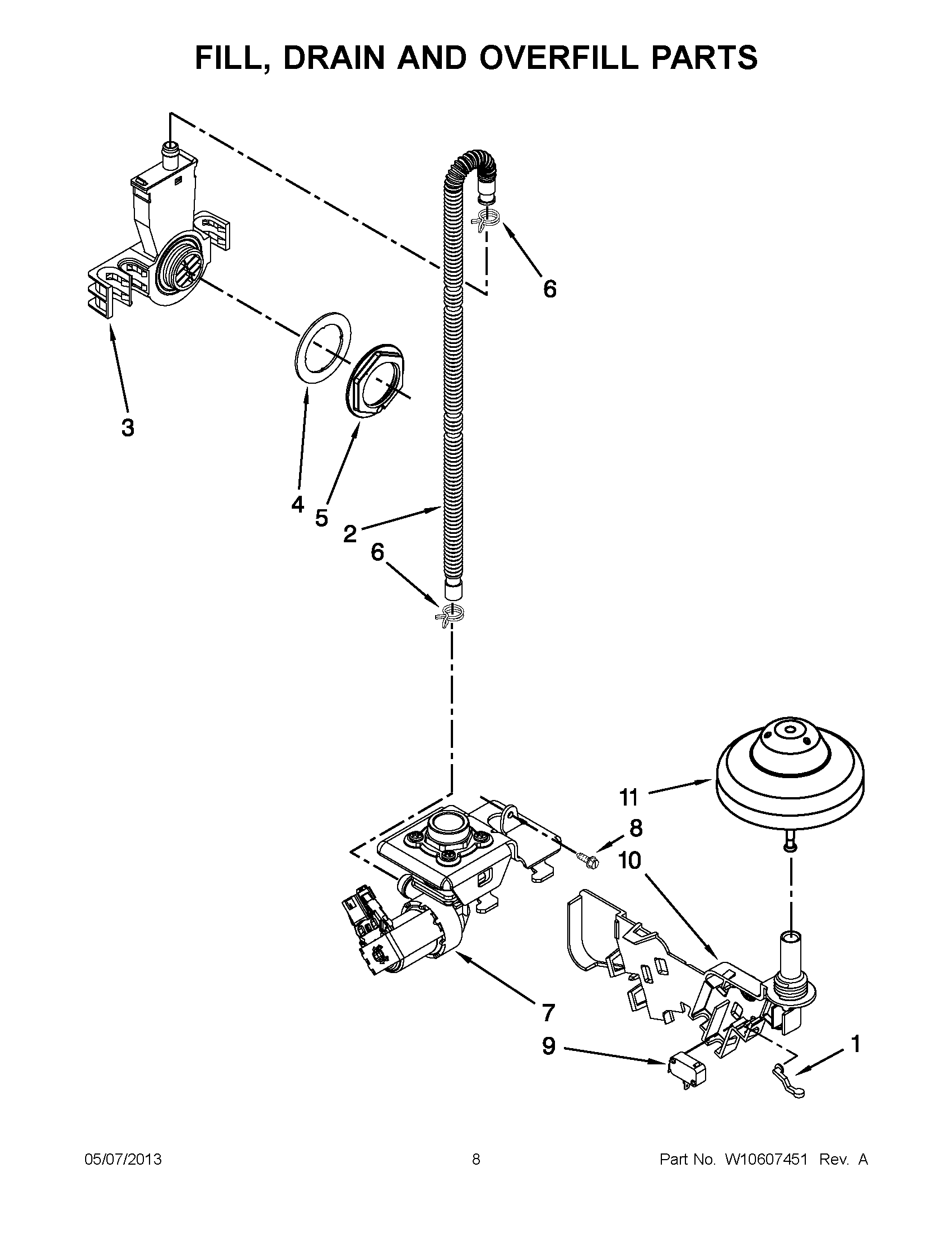

MDC4809PAW1 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

Products

Position	Product
1	LEVER, OVERFLOW SWITCH
2	MAY 8531412
3	WATER INLET (ALSO ORDER ITEMS 4)
4	MAY 8531323
5	MAY W10508676
6	MAY 371505
7	MAY W10195047
8	Screw
9	SWITCH, OVERFILL
10	STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
11	MAY 8268913
