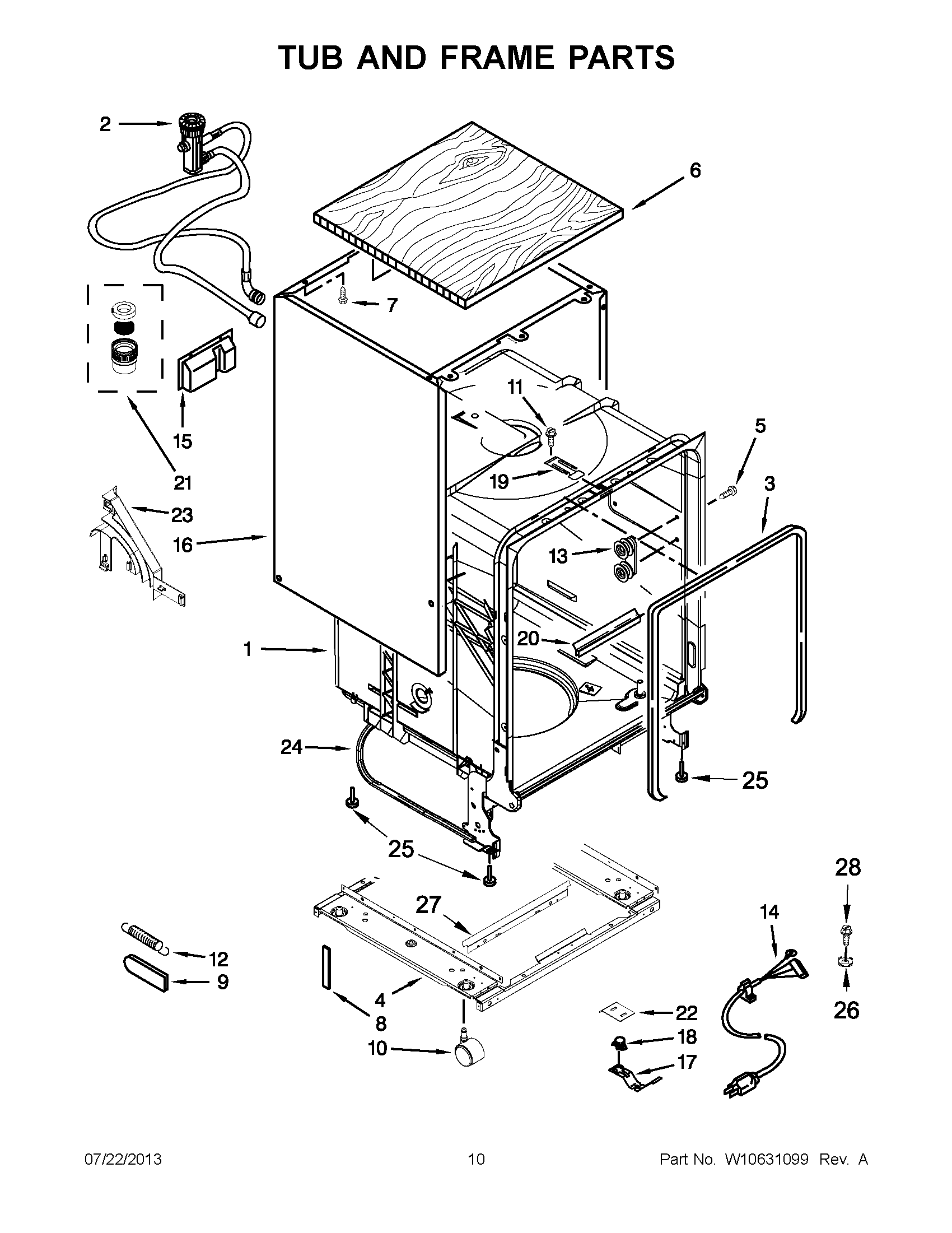

MDC4809PAW2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY W10354998
3	MAY W10524469
4	FRAME ASSY
5	MAY W10341745
6	PANEL-TOP
7	SCREW
8	SLEEVE, FRICTION
9	MAY 8268990
10	MAY 8559933
11	MAY W10165274
12	MAY W10337934
13	MAY 8270016
14	CORD-POWER
15	MAY W10219673
16	MAY W10356266
16	MAY W10356267
17	MAY W10539489
18	MAY W10339474
19	STRIKE, LATCH
20	PROTECTOR, EDGE (SHORT)
20	PROTECTOR, EDGE (LONG)
21	ADAPTER ASSY
22	SHIELD, THERMOSTAT
23	MAY 3378109
24	SUPPORT ASSEMBLY, BOTTOM
25	MAY W10304228
26	WASHER, PRONGED CUP
27	BAR, BLOCKER
28	MAY 3400014
