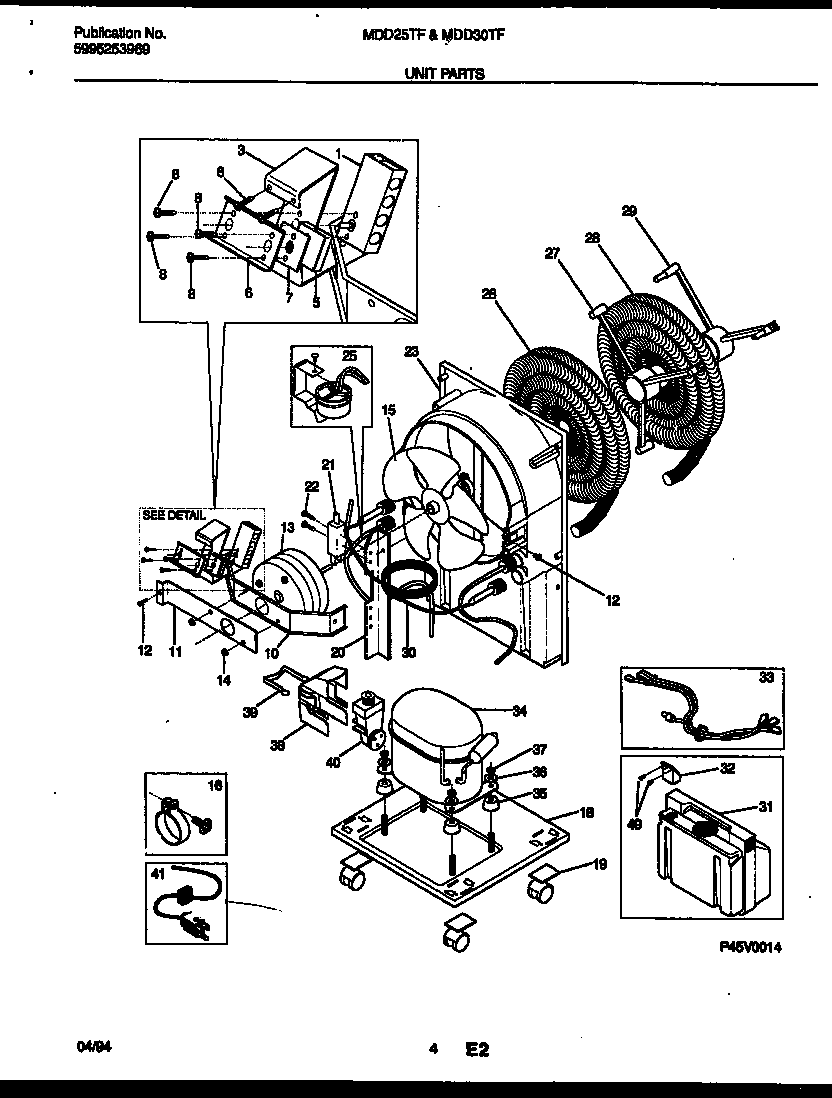

MDD25TF1 03 – UNIT PARTS

MDD25TF1 03 – UNIT PARTS

Written by

in

MDD25TF1 03 – UNIT PARTS

Products

PositionProduct
1WCI 5303296823
3BRACKET-CONTROL
5WCI 5303012345
6WCI 5303296824
7WCI 3016093
8WCI 5303304774
10WCI 5303296828
11WCI 5303296829
12WCI 3002801
13WCI 5303279144
14WCI 08007481
15FAN BLADE
16WCI 5303303699
18BASE W/ CASTERS
19WCI 5303275278
20BRACKET
21WCI 5308016437
22SCREW-SWITCH, SHUT OFF
23SHROUD
24WCI 5303286239
25WCI 5303279149
26WCI 3017458
27CLAMP-EVAPORATOR INNER
28WCI 3017954
29CLAMP-EVAPORATOR OUTER
30CAPILLARY TUBE-CUT TO 25“
31WCI 5303281288
32WCI 5303272520
33WCI 5303279145
34WCI 5303271878
35WCI 5303001777
36WASHER-COMPRESSOR
37NUT-COMPRESSOR
38COVER-TERMINAL
39STRAP-COVER
40WCI 5303003020
41CORD-POWER
49WCI 5303296826
