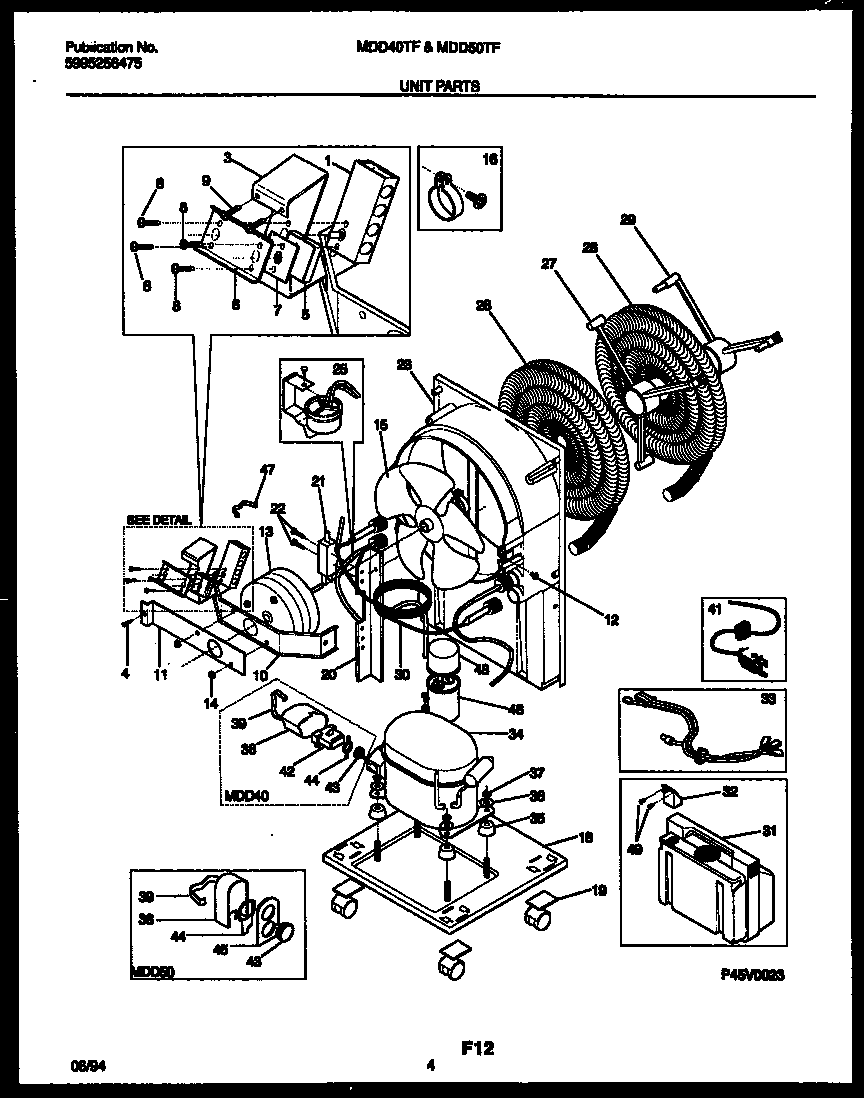

MDD40TF1 03 – UNIT PARTS

Products

Position	Product
1	WCI 5303296823
3	BRACKET-CONTROL
4	134178901 Frigidaire Screw
5	WCI 5303012345
6	WCI 5303296824
7	WCI 3016093
8	WCI 5303007620
9	3201861 Frigidaire Screw
10	WCI 5303296828
11	WCI 5303296829
12	WCI 3002801
13	WCI 5303279144
14	WCI 08007481
15	FAN BLADE
16	WCI 5303303699
18	BASE W/ CASTERS
19	WCI 5303275278
20	BRACKET
21	WCI 5308016437
22	SCREW-SWITCH, SHUT OFF
23	SHROUD
25	WCI 5303279149
26	WCI 3017458
27	CLAMP-EVAPORATOR INNER
28	WCI 5303279277
29	CLAMP-EVAPORATOR OUTER
30	Capillary Tube,45 inch long ,cut to length
31	WCI 5303281288
32	WCI 5303272520
33	WCI 5303279145
34	WCI 5303925101
35	WCI 5303001777
36	WASHER-COMPRESSOR
37	NUT-COMPRESSOR
38	WCI 5303273999
39	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	WCI 5303279151
42	216594300 Frigidaire Refrigerator Starter
43	WCI 5303273996
44	OVERLOAD RETAINER
