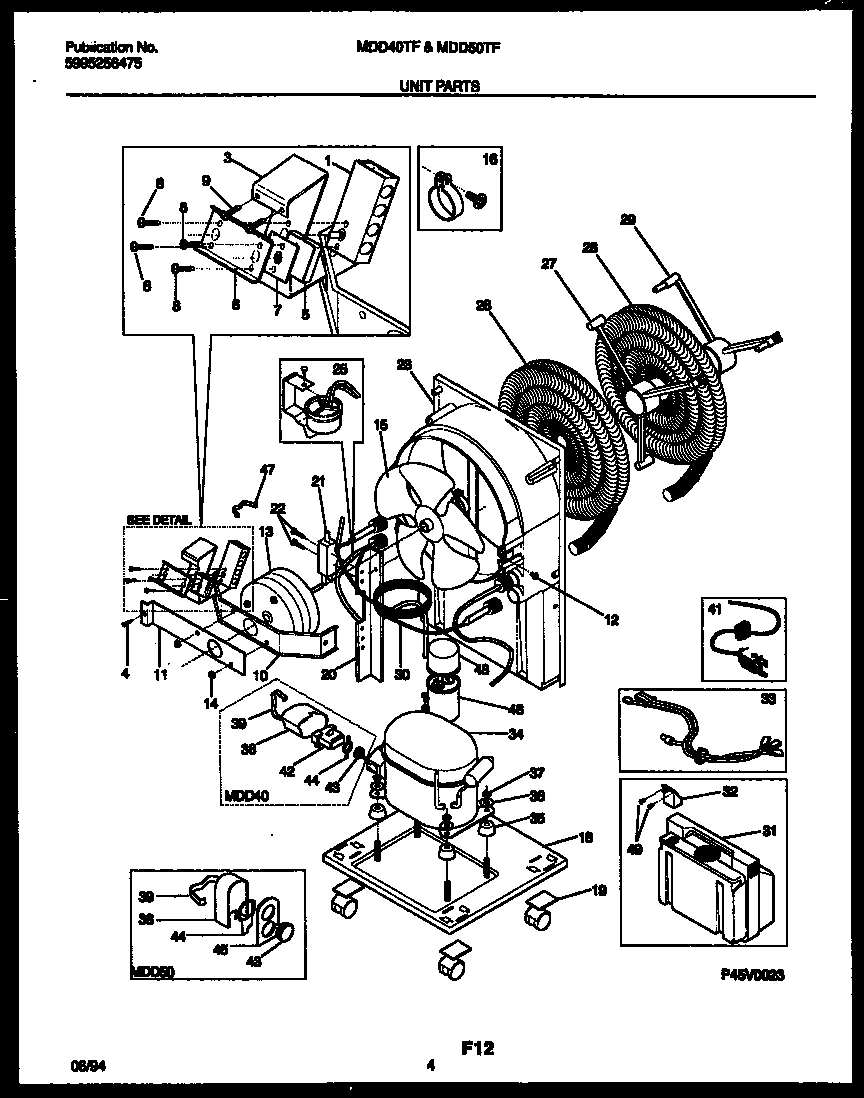

MDD50TF1 03 – UNIT PARTS

MDD50TF1 03 – UNIT PARTS

Written by

in

MDD50TF1 03 – UNIT PARTS

Products

PositionProduct
1WCI 5303296823
3BRACKET-CONTROL
4134178901 Frigidaire Screw
5WCI 5303012345
6WCI 5303296824
7WCI 3016093
8WCI 5303007620
93201861 Frigidaire Screw
10WCI 5303296828
11WCI 5303296829
12WCI 3002801
13WCI 5303279144
14WCI 08007481
15FAN BLADE
16WCI 5303303699
18BASE W/ CASTERS
19WCI 5303275278
20BRACKET
21WCI 5308016437
22SCREW-SWITCH, SHUT OFF
23SHROUD
25WCI 5303300829
26WCI 5303300822
27CLAMP-EVAPORATOR INNER
28WCI 3015172
29CLAMP-EVAPORATOR OUTER
30CAPILLARY TUBE
31WCI 5303281288
32WCI 5303272520
33WCI 5303300823
34WCI 3017370
35WCI 5303001777
36WASHER-COMPRESSOR
37NUT-COMPRESSOR
38WCI 3017774
39WCI 5308002985
41WCI 3017371
43WCI 3017369
44WCI 3012010
45WCI 3017773
