MDE10CSACL 05 – CABINET (REAR) – Aparts

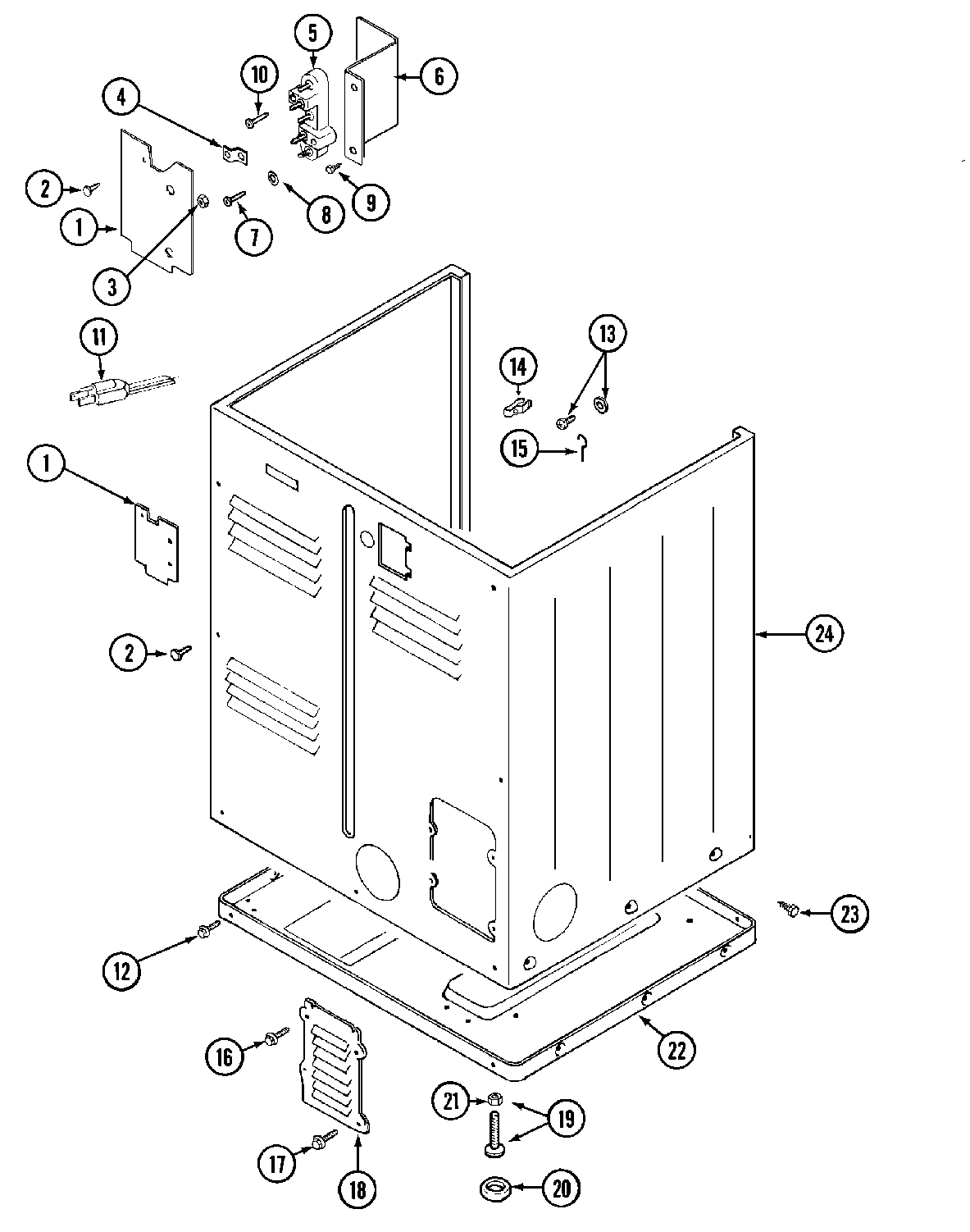

MDE10CSACL 05 – CABINET (REAR)

Products

Position	Product
001	MAY Y312905
003	WP112432 Whirlpool Nut Assembly
004	PART NOT USED
005	PART NOT USED
006	PART NOT USED
007	SCREW, No.10-24 X 3/4 INCH-----O
008	WPY311270 Whirlpool Washer TE
008	WP311093 Whirlpool Washer 7
011	MAY 33001425
011	MAY 305168
012	MAY Y313561
012	MAY Y310632
014	MAY 301548
015	MAY 204807
016	MAY Y313559
017	WP90767 Whirlpool Screw
018	MAY Y312951
019	W10176519 Whirlpool Leveling Feet
020	WPY314137 Whirlpool Rubber Foot
021	WP62739 Whirlpool Nut
022	MAY Y303361
023	213007 Whirlpool Screw #12
024	DOWEL PIN FOR HANDLE
