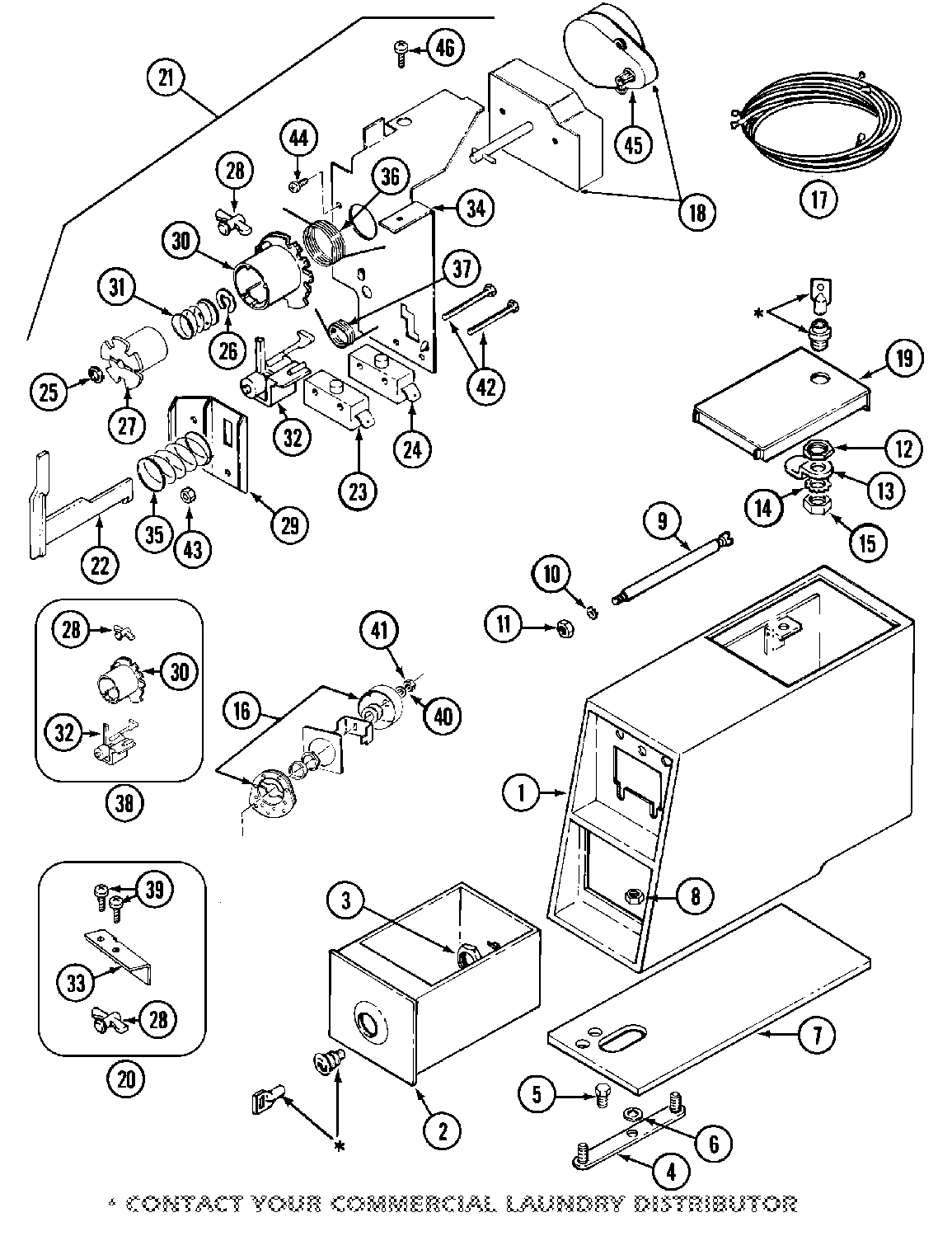

MDE10CSADL 02 – CONTROL CENTER

Products

Position	Product
001	MAY 206952L
001	CASE, COIN METER (WHT)
002	MAY 207913
005	WP90767 Whirlpool Screw
006	MAY 910309
007	MAY 214660
008	WP62739 Whirlpool Nut
009	MAY 215559
010	MAY 910387
011	Y052721 Whirlpool Nut
012	W11395752 Whirlpool Nut
013	W11165684 Whirlpool Cam
016	LOCKWASHER, DOUBLE ``D``
017	MAY 33001195
018	MAY 33001155
019	MAY 204216L
019	MAY 204216
020	Y308109 Whirlpool Slide & Adjuster Bracket
021	MAY 33001275
022	33002968 Whirlpool Slider
023	MAY 305798
024	MAY Y305799
026	MAY Y312270
027	MAY 314330
028	TIME ADJUSTMENT PEG
028	MAY 314547
029	MAY 314339
030	MAY 314546
031	WP211065 Whirlpool Timer Spring
032	MAY 314548
033	BRACKET FOR COIN SLIDE
034	MAY 33001207
035	DOWEL PIN FOR HANDLE
037	MAY 314332
038	MAY 306104
039	W11684507 Whirlpool Screw
040	LOCKWASHER, LOCK CAM
041	MAY 22001355
042	MAY 315277
043	MAY Y052634
044	MAY 910708
045	MAY Y308991
046	WPW10139210 Whirlpool Screw
