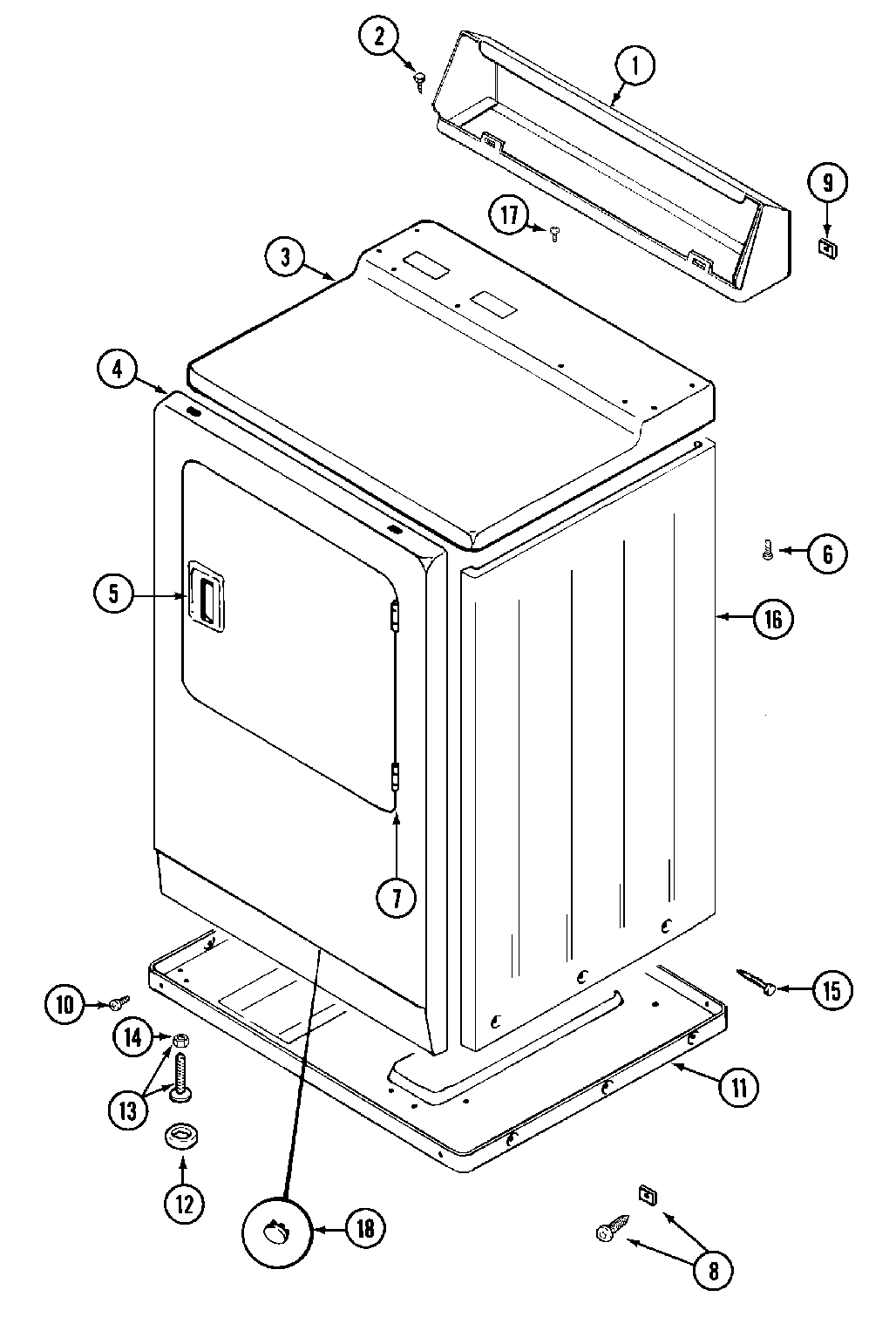

MDE10CSADL 03 – CABINET (FRONT) – Aparts

MDE10CSADL 03 – CABINET (FRONT)

Products

Position	Product
002	MAY 212276
003	MAY 33001164
003	MAY 33001163
005	MAY 33001254
006	MAY 214354
007	MAY 33001230
008	SCREW & FSTNER ASSY (FT. PNL)
009	MAY 215075
010	MAY Y310632
010	MAY Y313561
011	MAY Y303361
012	WPY314137 Whirlpool Rubber Foot
013	W10176519 Whirlpool Leveling Feet
014	WP62739 Whirlpool Nut
015	213007 Whirlpool Screw #12
016	DOWEL PIN FOR HANDLE
017	MAY 210186
018	MAY 33001132
018	MAY 33001168
