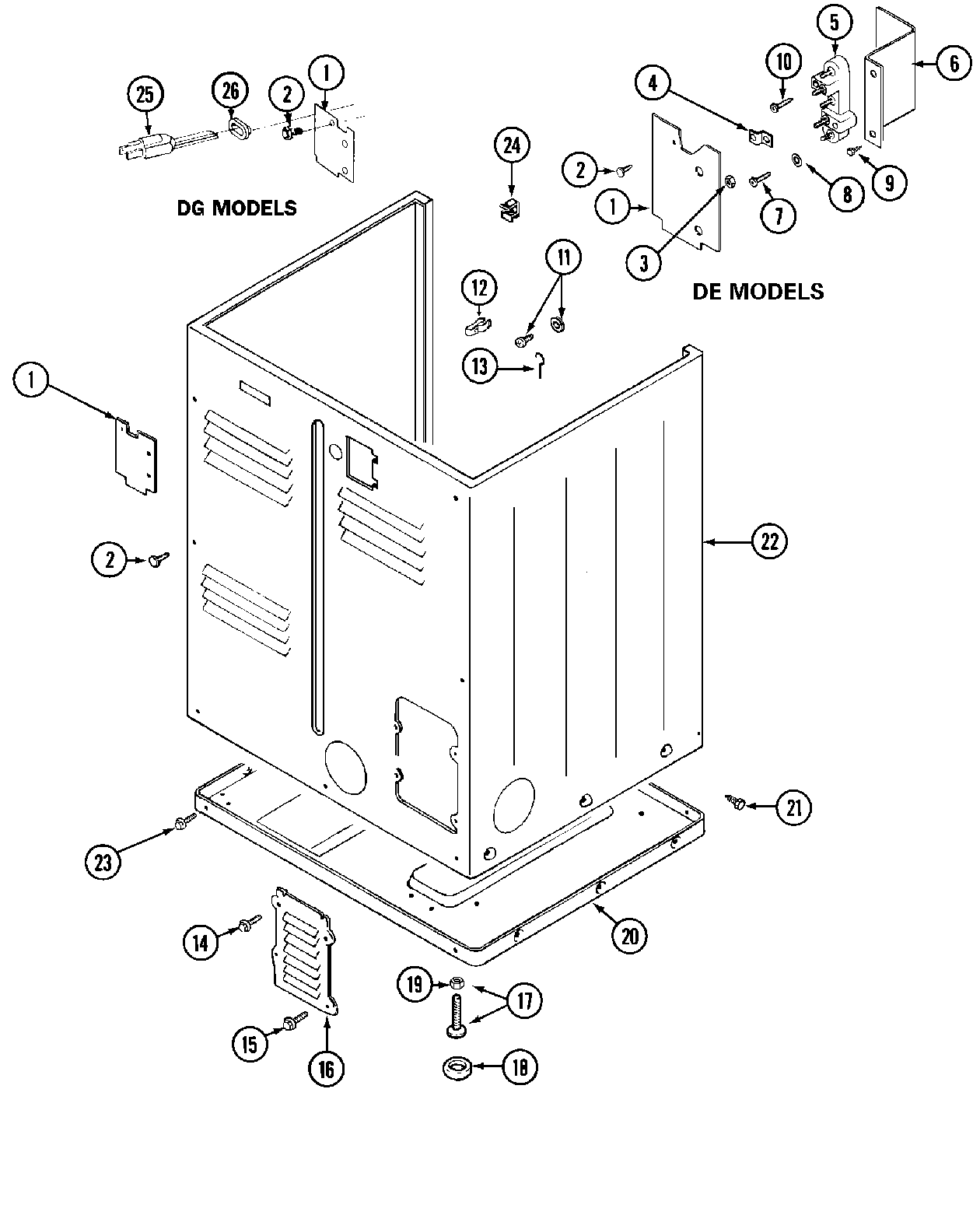

MDE10CSAKL 08 – CABINET-REAR

MDE10CSAKL 08 – CABINET-REAR

Written by

in

MDE10CSAKL 08 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005PART NOT USED
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008WP311093 Whirlpool Washer 7
008WPY311270 Whirlpool Washer TE
012MAY 301548
013MAY 204807
014MAY Y313559
015WP90767 Whirlpool Screw
016MAY Y312951
017W10176519 Whirlpool Leveling Feet
018WPY314137 Whirlpool Rubber Foot
019WP62739 Whirlpool Nut
020MAY Y303361
021213007 Whirlpool Screw #12
023MAY Y310632
023MAY Y313561
024MAY Y310376
025DOWEL PIN FOR HANDLE
025MAY 210186
026MAY 216183
