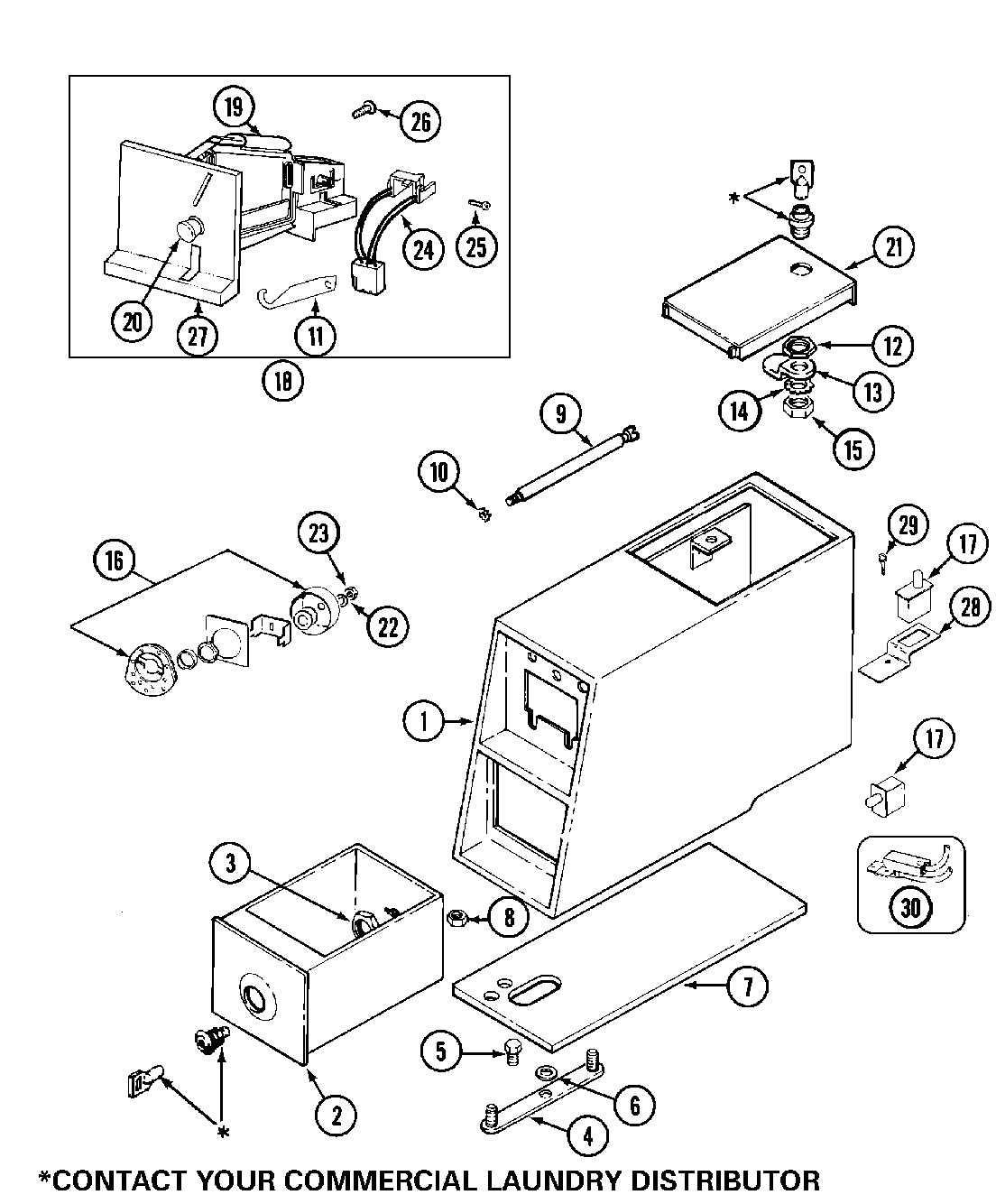

MDE10DAACL 09 – CONTROL CNTR (SERIAL SUFFIX KB & AFTER)

MDE10DAACL 09 – CONTROL CNTR (SERIAL SUFFIX KB & AFTER)

Written by

in

MDE10DAACL 09 – CONTROL CNTR (SERIAL SUFFIX KB & AFTER)

Products

PositionProduct
001MAY 22001408
001COIN METER CASE (WHT)
002BOX, COIN (WHT)
002(ALM)
005WP90767 Whirlpool Screw
006MAY 910309
007MAY 214660
008WP62739 Whirlpool Nut
009MAY 213035
010MAY 910181
011MAY 216011
012W11395752 Whirlpool Nut
013W11165684 Whirlpool Cam
017WPW10131838 Whirlpool Voltage Switch
018MAY 207948
018DOWEL PIN FOR HANDLE
019MAY 207949
019COIN REJECTOR (.25 CENTS)
020MAY 216200
021MAY 204216L
021MAY 204216
022LOCKWASHER, LOCK CAM
023MAY 22001355
023LOCKWASHER, DOUBLE “D“
024MAY 206799
025WP3395530 Whirlpool Screw
026MAY 216068
027MTG. PLATE, SINGLE
028MAY 22001404
029MAY 212276
030HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
