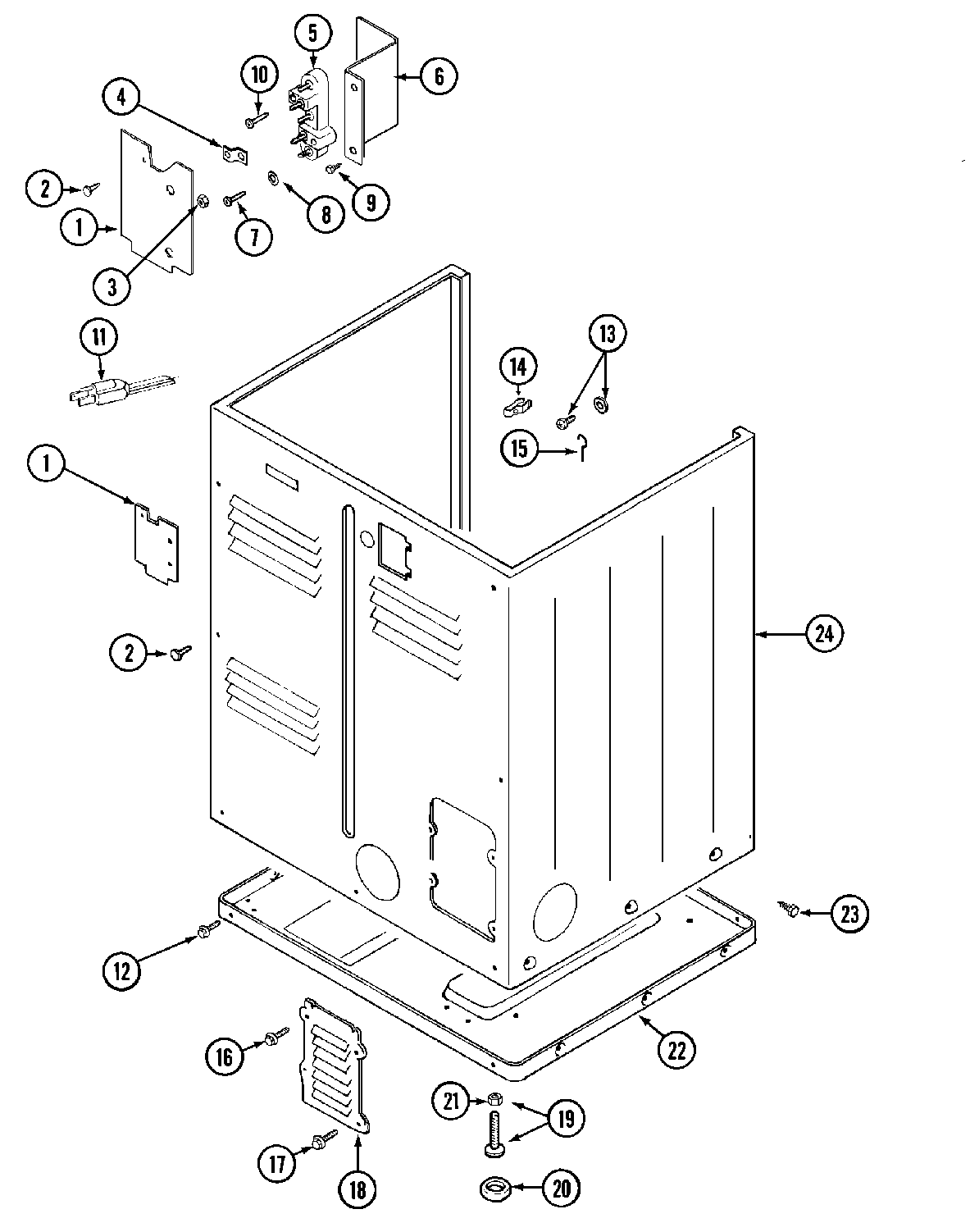

MDE10DAACW 05 – CABINET (REAR)

MDE10DAACW 05 – CABINET (REAR)

Written by

in

MDE10DAACW 05 – CABINET (REAR)

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005PART NOT USED
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008WPY311270 Whirlpool Washer TE
008MAY 910181
011MAY 305168
012MAY Y313561
012MAY Y310632
014MAY 301548
015MAY 204807
016MAY Y313559
017WP90767 Whirlpool Screw
018MAY Y312951
019W10176519 Whirlpool Leveling Feet
020WPY314137 Whirlpool Rubber Foot
021WP62739 Whirlpool Nut
022MAY Y303361
023213007 Whirlpool Screw #12
024DOWEL PIN FOR HANDLE
