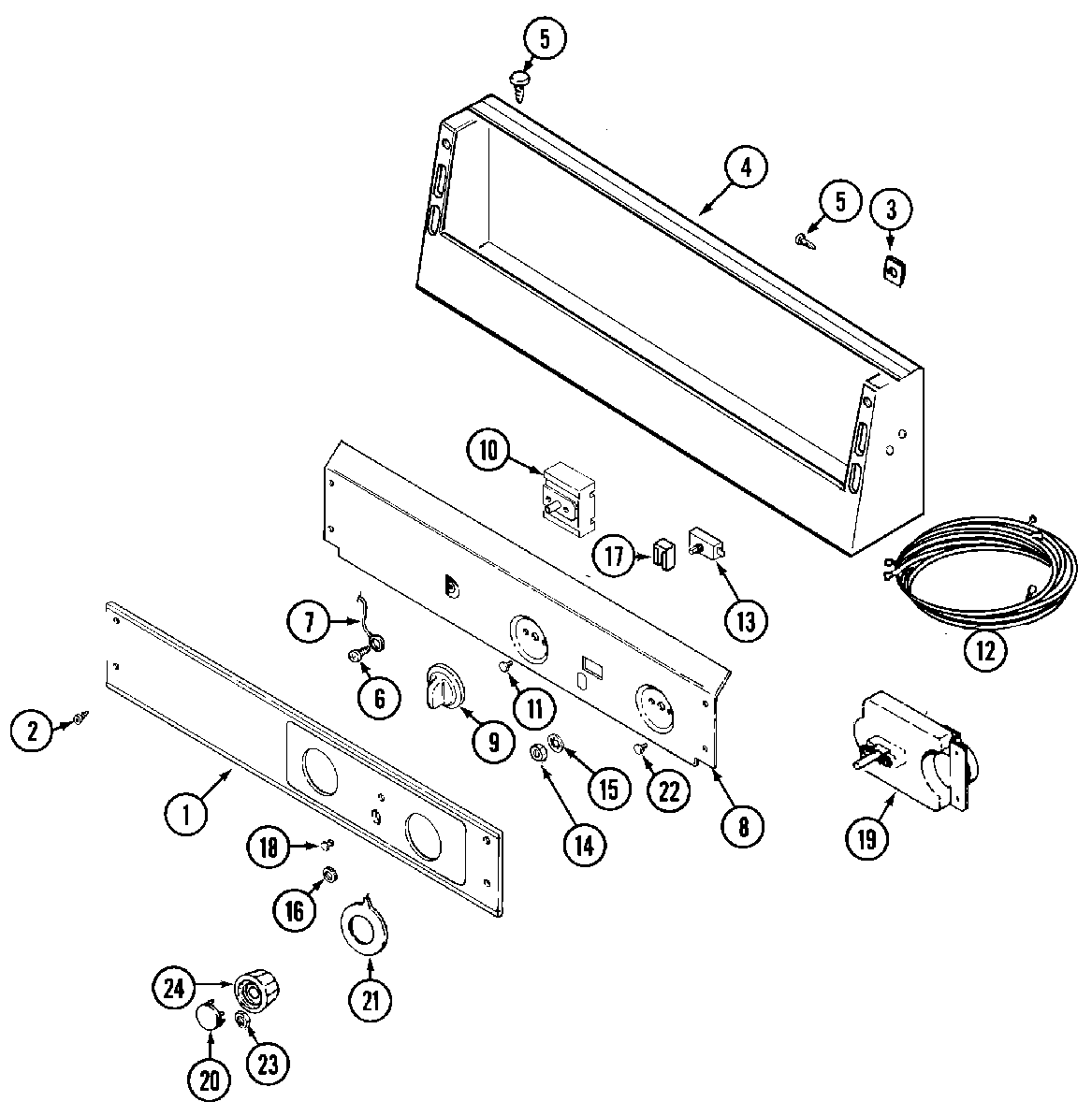

MDE10MNACW 01 – CONTROL PANEL

MDE10MNACW 01 – CONTROL PANEL

Written by

in

MDE10MNACW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 33001021
002WPW10131119 Whirlpool Screw
003MAY 215003
004MAY 33001280
005MAY 212276
006WP489399 Whirlpool Refrigerator Screw
007MAY 205810
009MAY 306938
010WPW10327105 Whirlpool Cycle Switch
012MAY 33001506
012MAY 33001514
012DOWEL PIN FOR HANDLE
012MAY 33001562
013WPW10149462 Whirlpool Push-to-Start Switch
014MAY Y312706
015WPW10139799 Whirlpool Washer
016MAY Y312702
017LIGHT, INDICATOR
017W10139459 Whirlpool Light Assembly
018WP215564 Whirlpool Indicator Lens
019TIMER
019MAY Y305758
019MAY 305214
020WPW10133501 Whirlpool Cap
021MAY 33001500
021MAY 314725
022WP488234 Whirlpool Air Conditioner Screw
023W10155650 Whirlpool Nut
