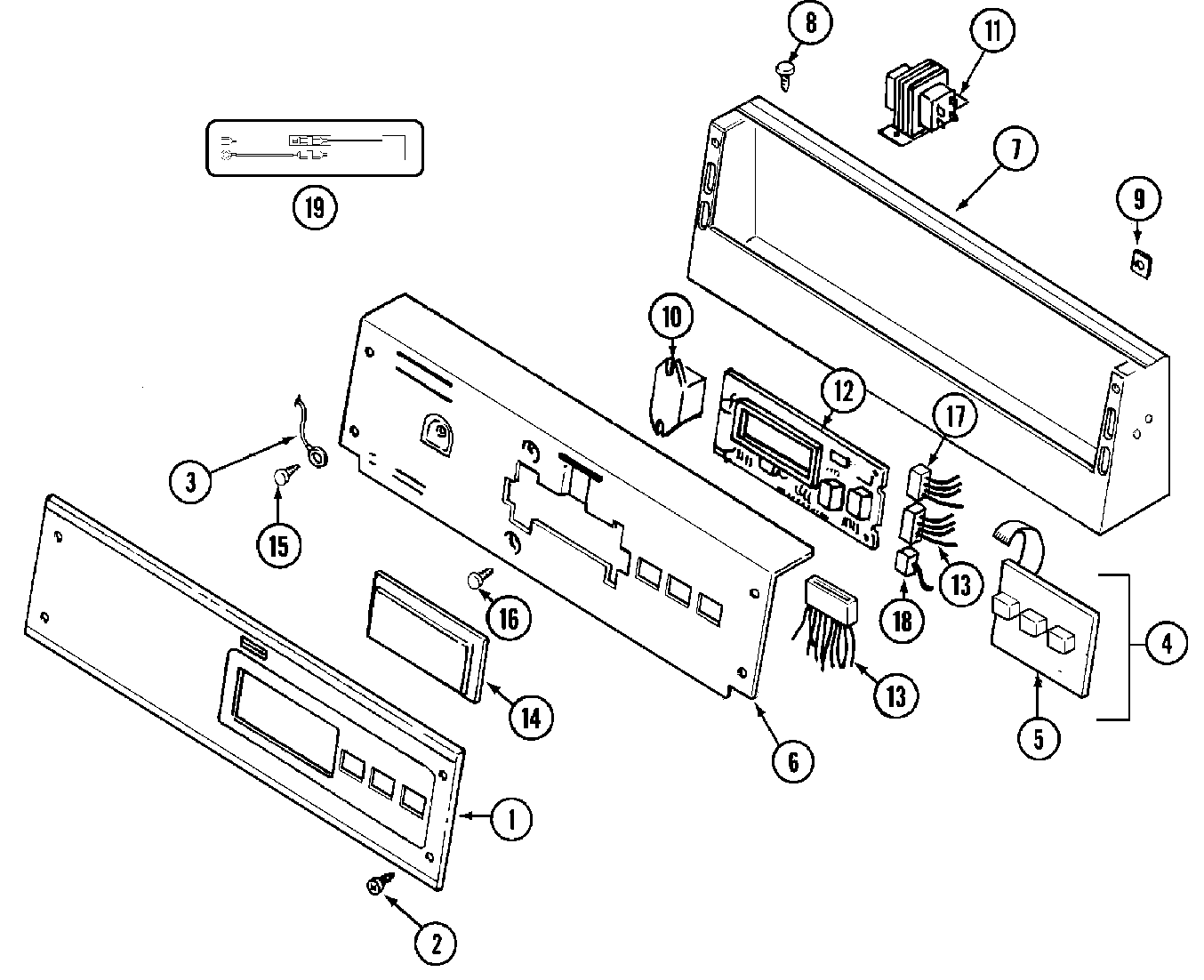

MDE10PDADW 01 – CONTROL PANEL

Products

Position	Product
001	MAY 33001020
002	WPW10131119 Whirlpool Screw
003	MAY 205810
004	W10756178 Whirlpool Screw
004	BACKUP PLATE W/SWITCH
005	WPW10424308 Whirlpool Push Button
008	MAY 212276
009	MAY 215003
010	MAY 206824
010	SCREW, BUSHINGS
011	WP90767 Whirlpool Screw
011	MAY 207766
012	M0282005 Whirlpool Nut
012	SPACER CIRCUIT BOARD
012	MAY 33001249
013	MAY 314531
014	MAY 33001208
015	WP489399 Whirlpool Refrigerator Screw
016	SCREW, CIRCUIT BOARD
017	MAY 206799
017	DOWEL PIN FOR HANDLE
018	MAY 22001361
018	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
019	MAY 12001279
