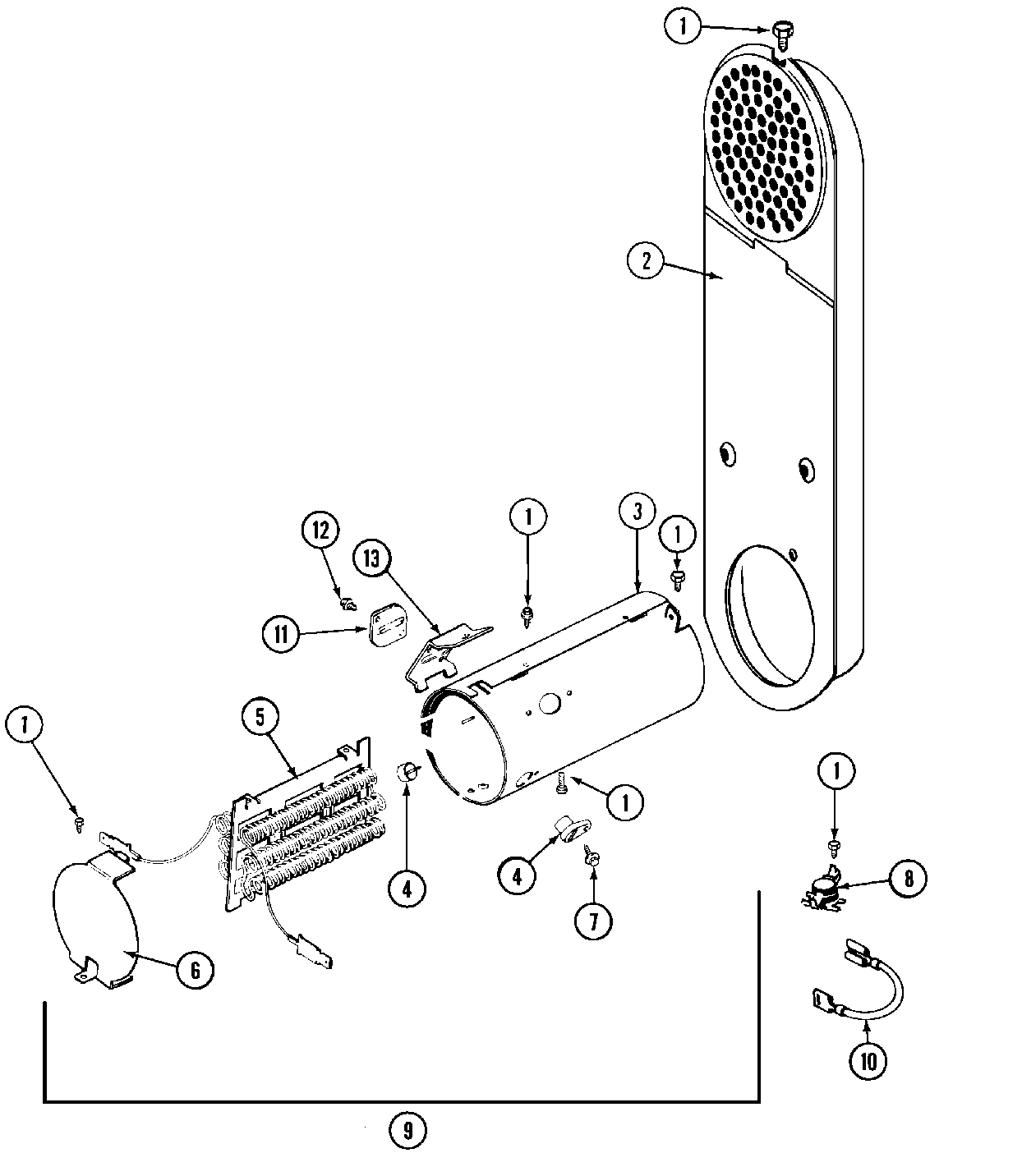

MDE10PDAEW 07 – HEATER
Products
| Position | Product |
|---|---|
| 001 | WP90767 Whirlpool Screw |
| 002 | MAY 308503 |
| 003 | MAY 314995 |
| 004 | MAY 314998 |
| 005 | MAY Y308613 |
| 006 | MAY 314999 |
| 007 | DOWEL PIN FOR HANDLE |
| 008 | WP303396 Whirlpool Thermostat |
| 009 | MAY 307181 |
| 009 | HEATER ASSY. COMPLETE (208V) |
| 010 | WPY307173 Whirlpool Wire Jumper |
| 011 | MAY Y308590 |
