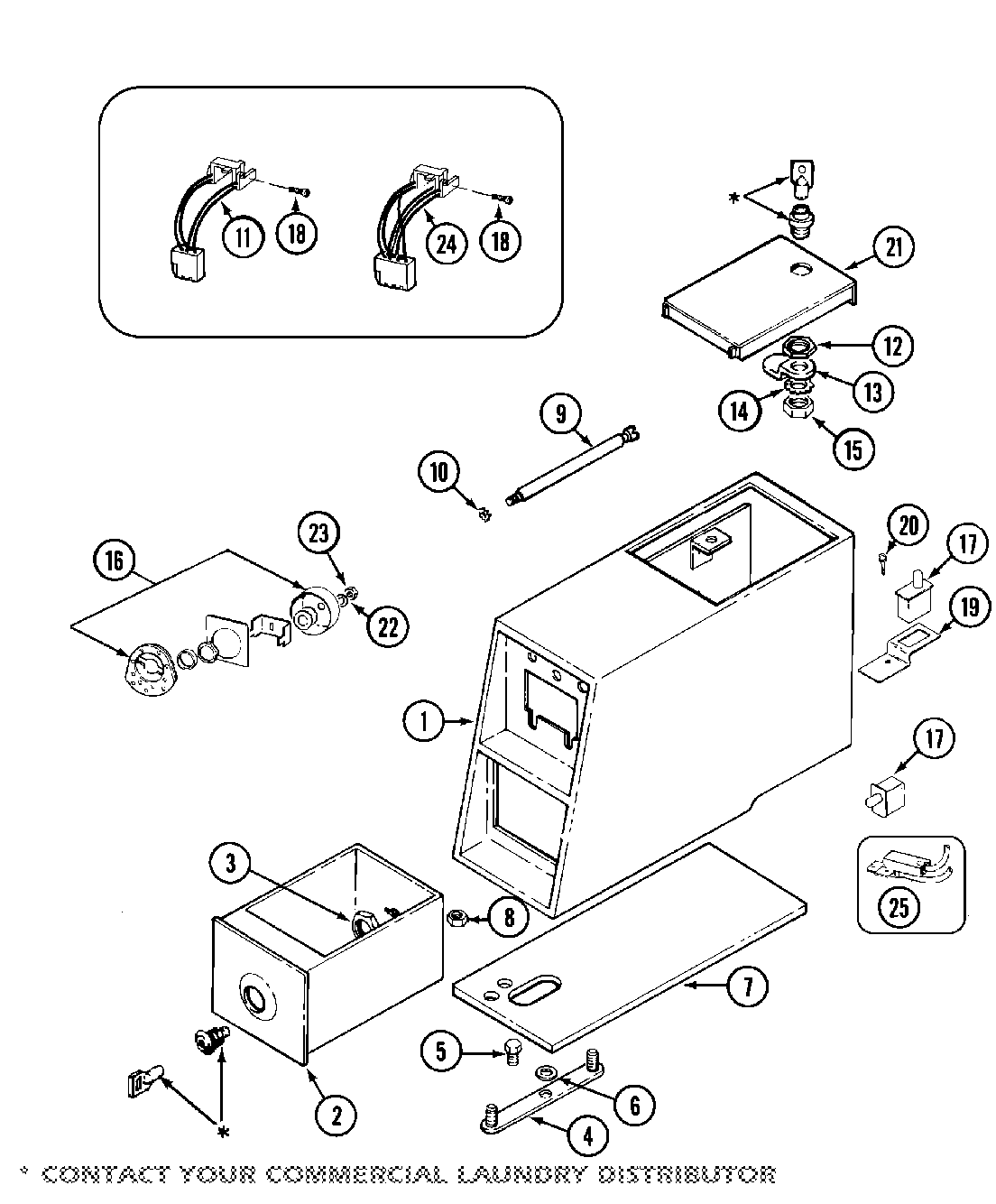

MDE10PDEGL 02 – CONTROL CENTER

Products

Position	Product
001	MAY 22001408
001	COIN METER CASE (WHT)
002	(ALM)
002	BOX, COIN (WHT)
005	WP90767 Whirlpool Screw
006	MAY 910309
007	MAY 214660
008	WP62739 Whirlpool Nut
009	MAY 211605
009	MAY 213035
010	MAY 910181
011	OPTIC SWITCH ASSY. (4 WIRE)
012	W11395752 Whirlpool Nut
013	W11165684 Whirlpool Cam
016	DOWEL PIN FOR HANDLE
017	WPW10131838 Whirlpool Voltage Switch
018	WP3395530 Whirlpool Screw
019	MAY 22001404
020	MAY 212276
021	MAY 204216L
021	MAY 204216
022	LOCKWASHER, LOCK CAM
023	MAY 22001355
024	MAY 206799
025	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
