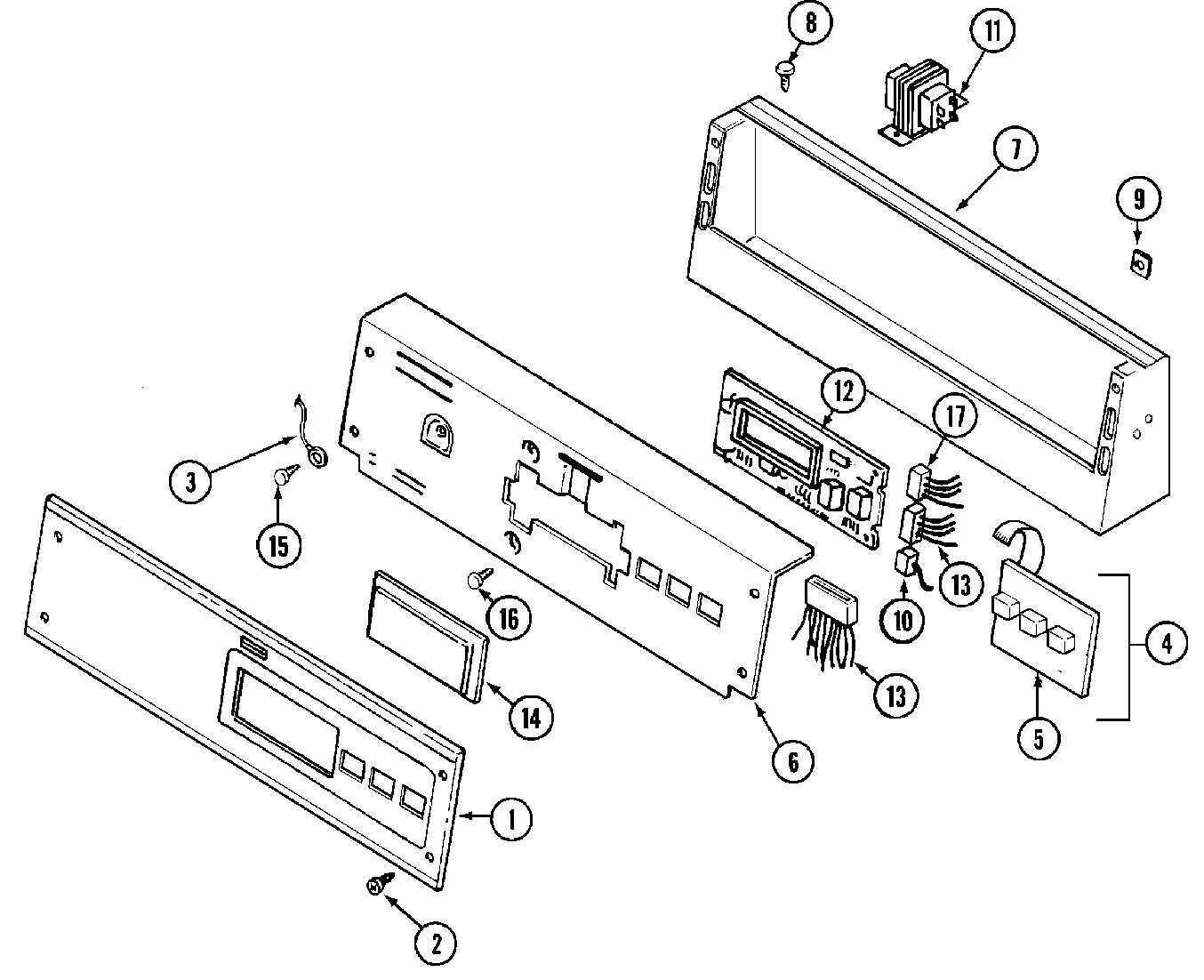

MDE10PDEGW 01 – CONTROL PANEL

MDE10PDEGW 01 – CONTROL PANEL

Written by

in

MDE10PDEGW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 33001020
002WPW10131119 Whirlpool Screw
003MAY 205810
004W10756178 Whirlpool Screw
004BACKUP PLATE W/SWITCH
005WPW10424308 Whirlpool Push Button
008MAY 212276
009MAY 215003
010HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
010MAY 22001361
011WP90767 Whirlpool Screw
011MAY 207766
012MAY 33001249
012SPACER CIRCUIT BOARD
012M0282005 Whirlpool Nut
013MAY 314531
013MAY 33001283
013MAY 33001428
014MAY 33001208
015WP489399 Whirlpool Refrigerator Screw
016SCREW, CIRCUIT BOARD
017MAY 206799
017DOWEL PIN FOR HANDLE
