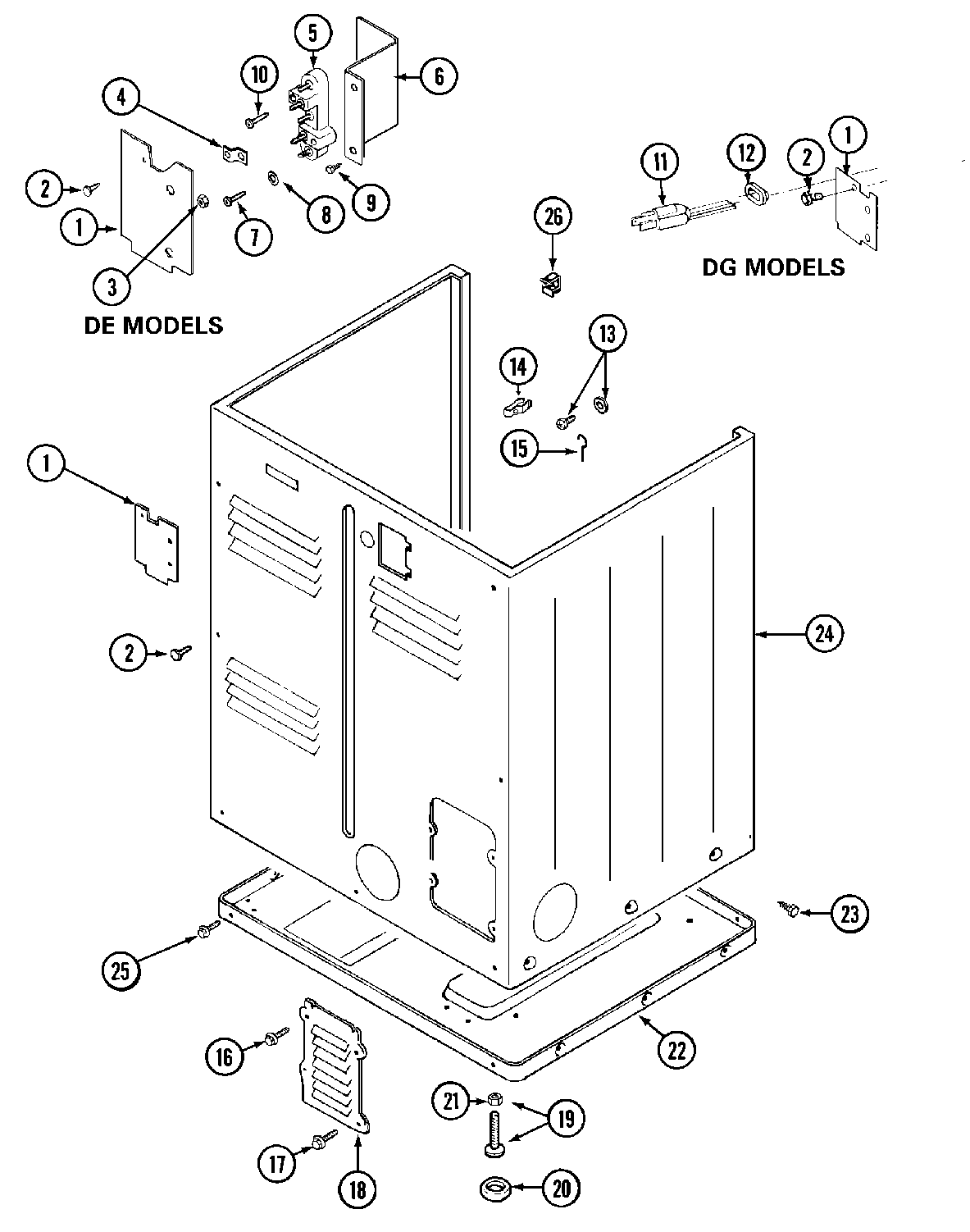

MDE10PDEGW 05 – CABINET-REAR

MDE10PDEGW 05 – CABINET-REAR

Written by

in

MDE10PDEGW 05 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005PART NOT USED
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008MAY 910181
008WPY311270 Whirlpool Washer TE
011MAY 308966
012MAY 216183
014MAY 301548
015MAY 204807
016MAY Y313559
017WP90767 Whirlpool Screw
018MAY Y312951
019W10176519 Whirlpool Leveling Feet
020WPY314137 Whirlpool Rubber Foot
021WP62739 Whirlpool Nut
022MAY Y303361
023213007 Whirlpool Screw #12
024DOWEL PIN FOR HANDLE
025MAY Y310632
025MAY Y313561
026MAY Y310376
