MDE10PRACW 04 – CABINET (REAR) – Aparts

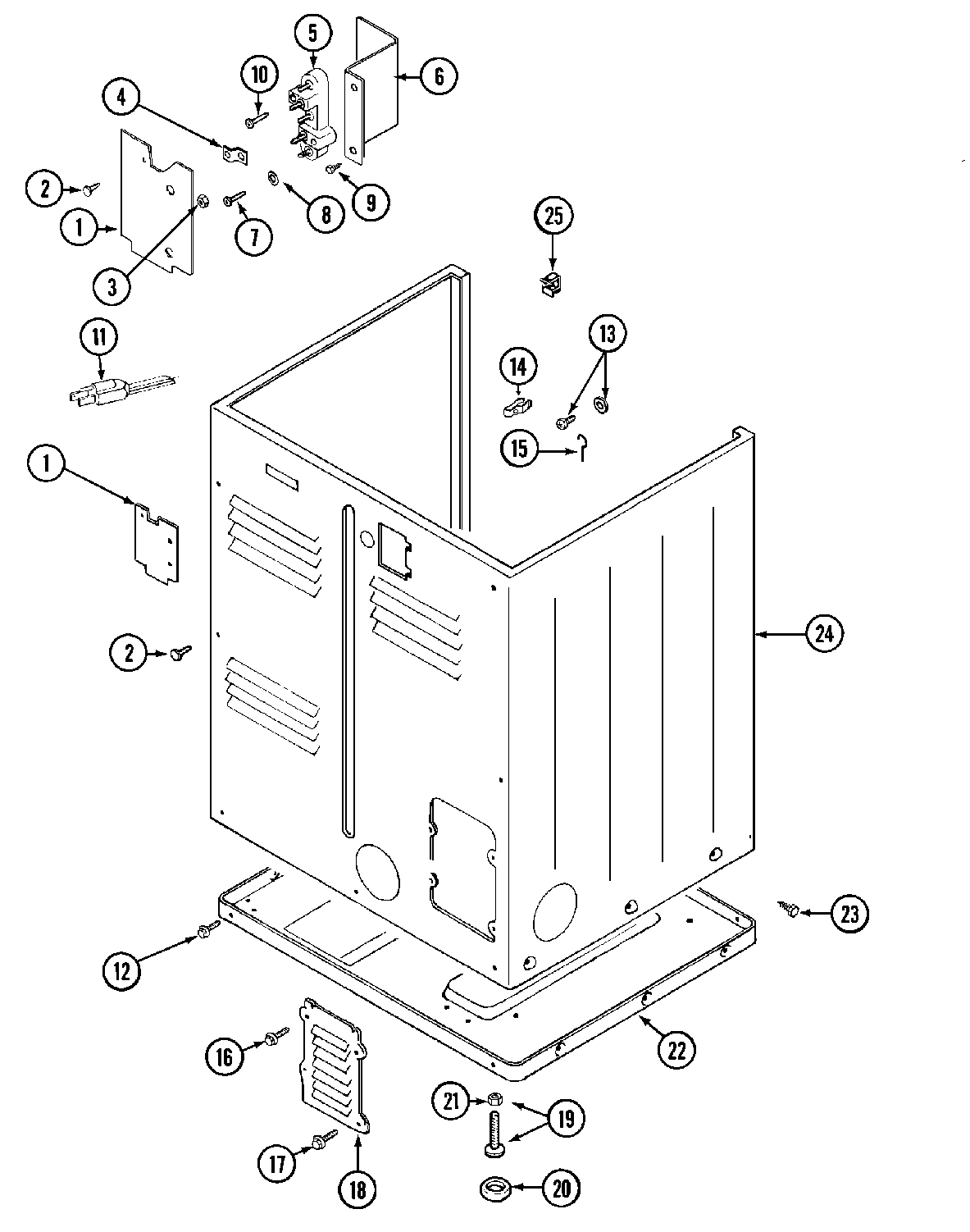

MDE10PRACW 04 – CABINET (REAR)

Products

Position	Product
001	MAY Y312905
003	WP112432 Whirlpool Nut Assembly
004	PART NOT USED
005	W11705611 Whirlpool Block Ter
006	PART NOT USED
007	SCREW, No.10-24 X 3/4 INCH-----O
008	WPY311270 Whirlpool Washer TE
008	MAY 910181
011	GROMMET
011	MAY 33001246
012	MAY Y313561
012	MAY Y310632
014	MAY 301548
015	MAY 204807
016	MAY Y313559
017	WP90767 Whirlpool Screw
018	MAY Y312951
019	W10176519 Whirlpool Leveling Feet
020	WPY314137 Whirlpool Rubber Foot
021	WP62739 Whirlpool Nut
022	MAY Y303361
023	213007 Whirlpool Screw #12
024	DOWEL PIN FOR HANDLE
025	MAY Y310376
