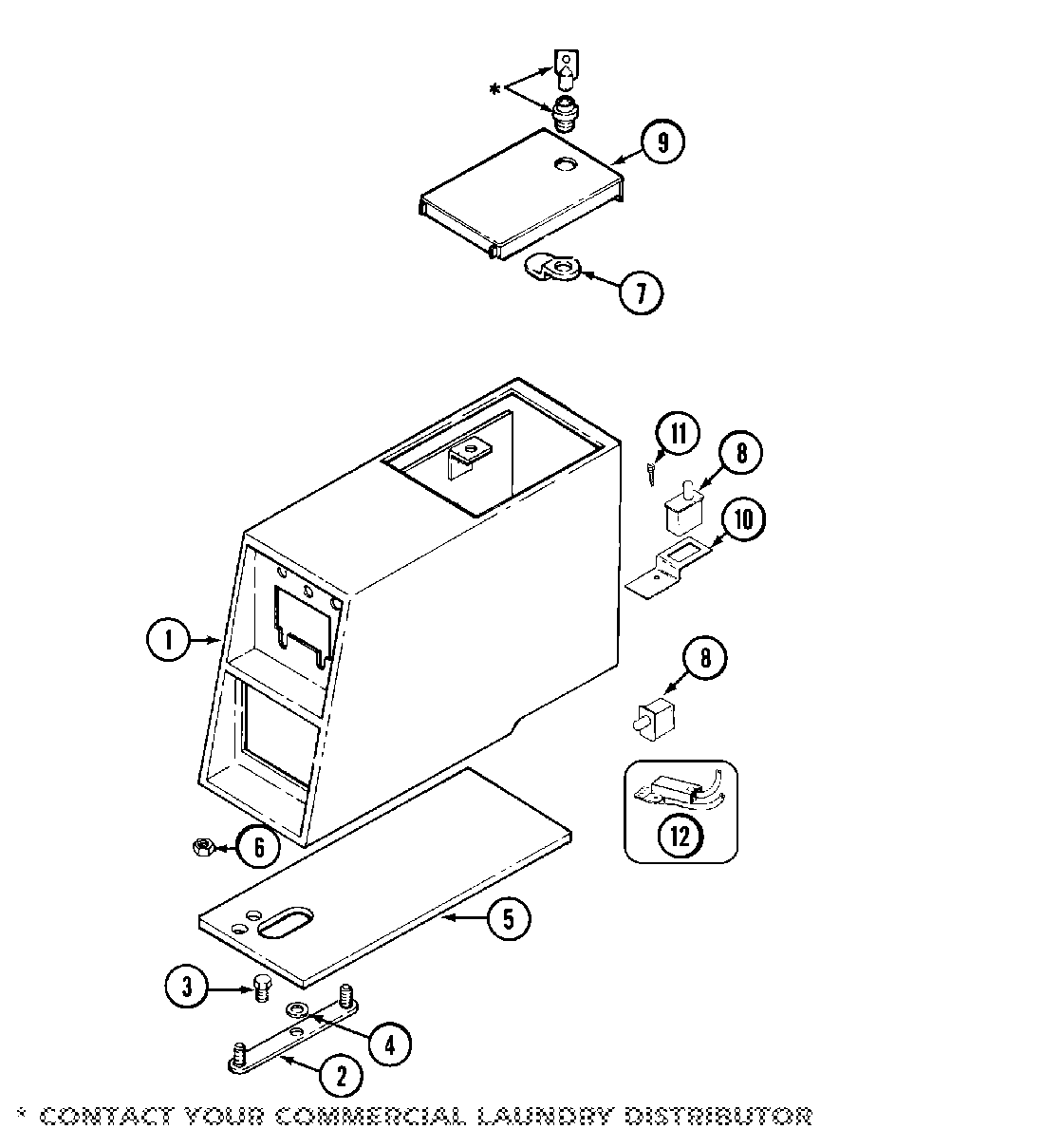

MDE10PRACW 08 – CONTROL CENTER

Written by

Products

Position	Product
001	COIN METER CASE (WHT)
003	WP90767 Whirlpool Screw
004	MAY 910309
005	MAY 214660
006	WP62739 Whirlpool Nut
007	W11165684 Whirlpool Cam
008	WPW10131838 Whirlpool Voltage Switch
009	MAY 204216
010	MAY 22001404
011	MAY 212276
012	DOWEL PIN FOR HANDLE
