MDE10PSAGL 02 – CONTROL CENTER

MDE10PSAGL 02 – CONTROL CENTER

Written by

in

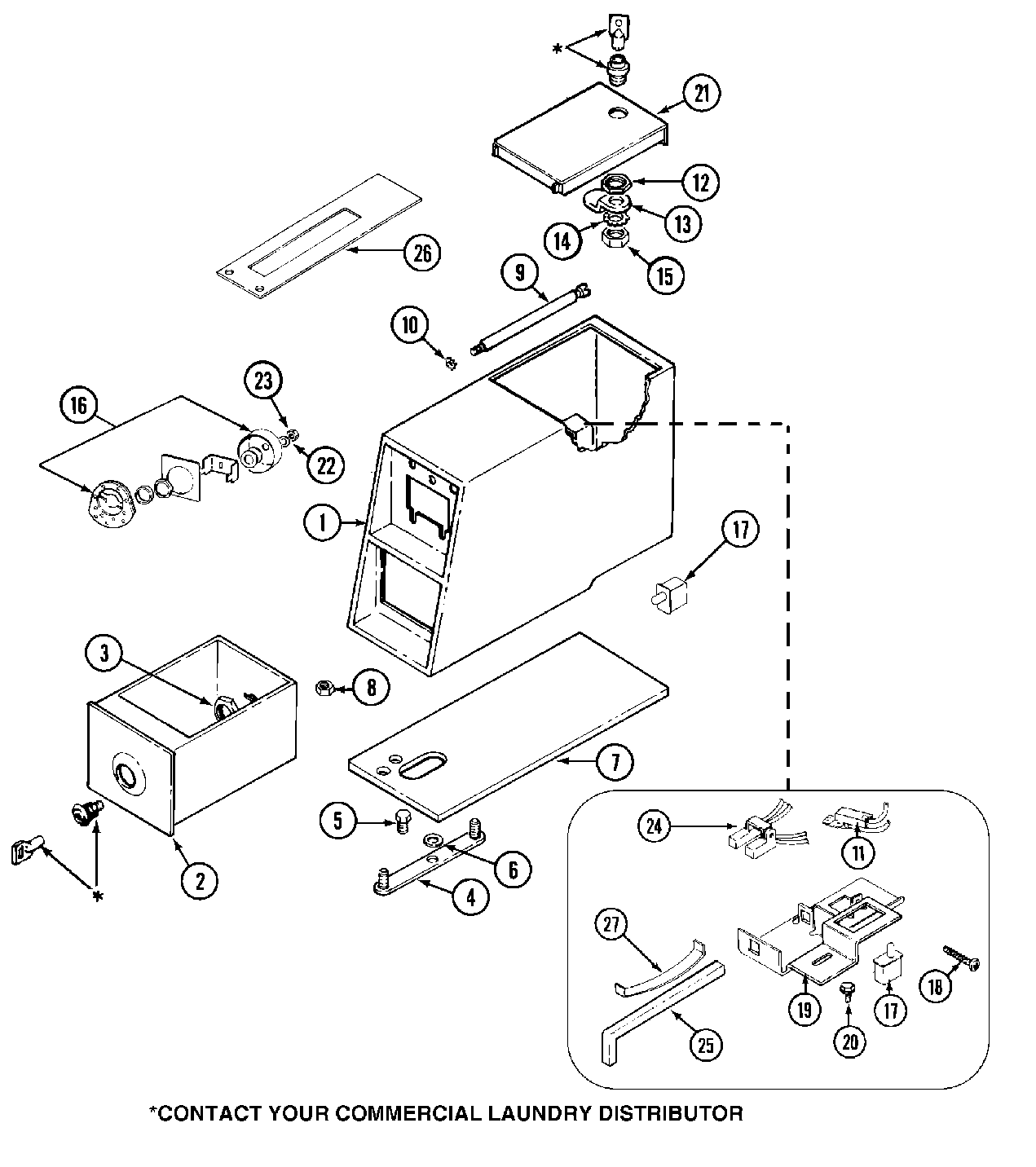

MDE10PSAGL 02 – CONTROL CENTER

Products

PositionProduct
001MAY 22001406
001MAY 22001405
002MAY 207913
005WP90767 Whirlpool Screw
006MAY 910309
007MAY 214660
008WP62739 Whirlpool Nut
009MAY 215559
010MAY 910387
011HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
012W11395752 Whirlpool Nut
013W11165684 Whirlpool Cam
017WPW10131838 Whirlpool Voltage Switch
018WP3395530 Whirlpool Screw
019MAY 33001253
020MAY 212276
020MAY 211605
021MAY 204216
021MAY 204216L
022LOCKWASHER, LOCK CAM
023MAY 22001355
023LOCKWASHER, DOUBLE “D“
024MAY 206799
025MAY 216442
026DOWEL PIN FOR HANDLE
027SPRING, SWITCH ROD
