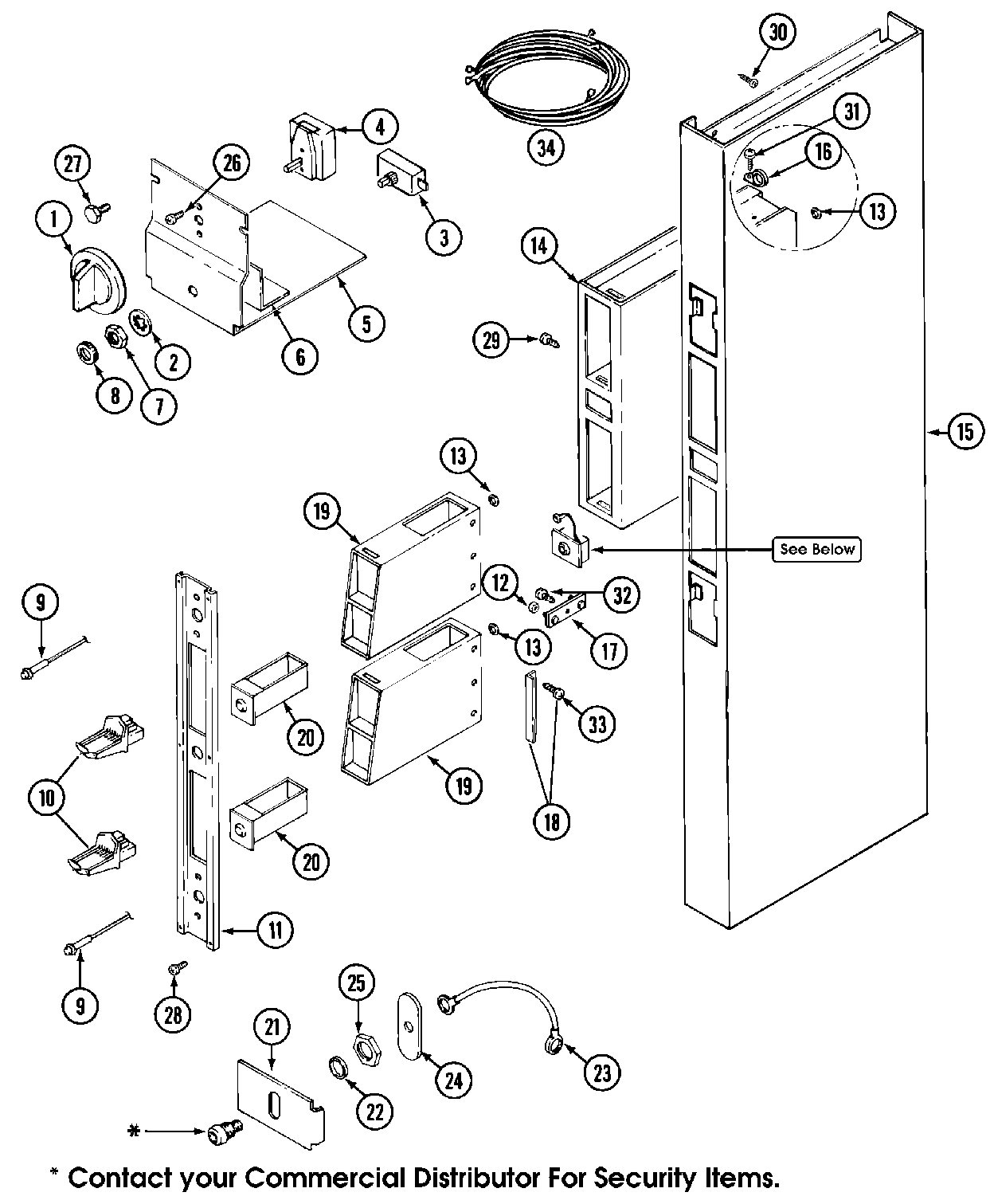

MDE11CSADW 01 – CONTROL CENTER SHROUD

Products

Position	Product
001	MAY 205663
002	WPW10139799 Whirlpool Washer
003	WPW10149462 Whirlpool Push-to-Start Switch
004	MAY 307253
005	MAY Y314261
007	MAY Y312706
008	MAY Y312702
009	INDICATOR LIGHT
011	MAY 315037
012	WP62739 Whirlpool Nut
013	MAY Y313671
014	MAY 305534
016	CABLE STRAP-HARNESS TO BASE
019	MAY Y307081
020	COIN BOX-WHITE
020	COIN BOX-ALMOND
021	MAY 313428
023	MAY Y303981
024	MAY Y313427
025	W11395752 Whirlpool Nut
026	WP488234 Whirlpool Air Conditioner Screw
028	MAY Y313424
029	WP90767 Whirlpool Screw
029	MAY Y313559
030	WP98165 Whirlpool Screw
031	WPW10139210 Whirlpool Screw
032	MAY 212276
033	MAY Y014872
034	MAY 33001558
034	MAY 33001516
034	MAY 33001515
034	(UPPER-DE) (CAN)
034	MAY Y308313
034	DOWEL PIN FOR HANDLE
034	MAY 33001559
