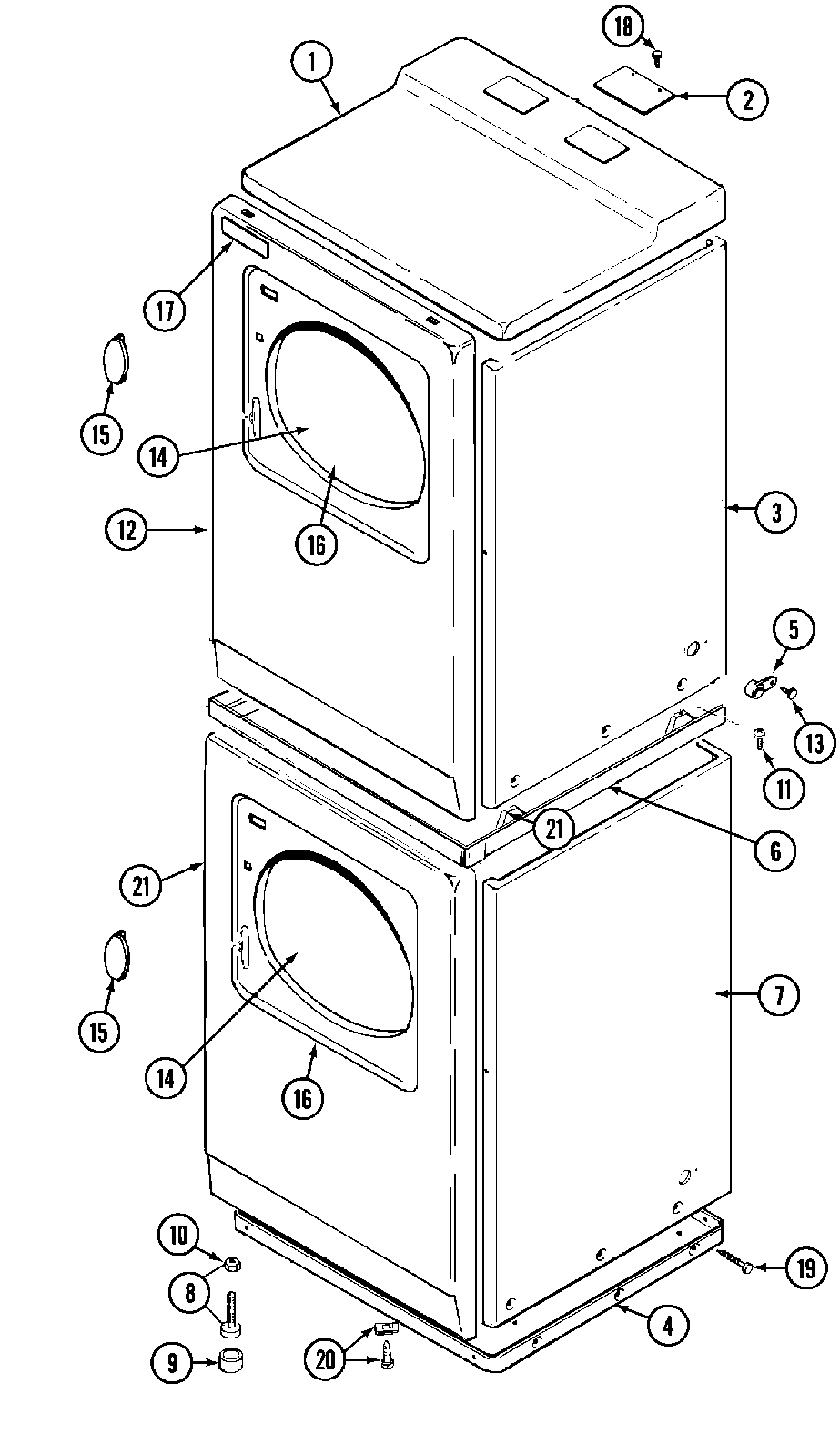

MDE11CSAGL 03 – FRONT VIEW

Products

PositionProduct
001MAY 33001165
004MAY 306530
005CABLE STRAP-HARNESS TO BASE
006MAY 33001302
006MAY Y310632
006MAY 911050
008LEG, ADJUSTABLE (W/NUT)—S
009WP210684 Whirlpool Dishwasher Leveling Leg Pad
010WP210385 Whirlpool Lock Nut
011MAY 314663
013WPW10139210 Whirlpool Screw
014MAY 33001203
015MAY 314939
015MAY 314974
016MAY 314967
017DOWEL PIN FOR HANDLE
018MAY Y313559
019213007 Whirlpool Screw #12
020SCREW & FSTNER ASSY (FT. PNL)
021MAY 310933
