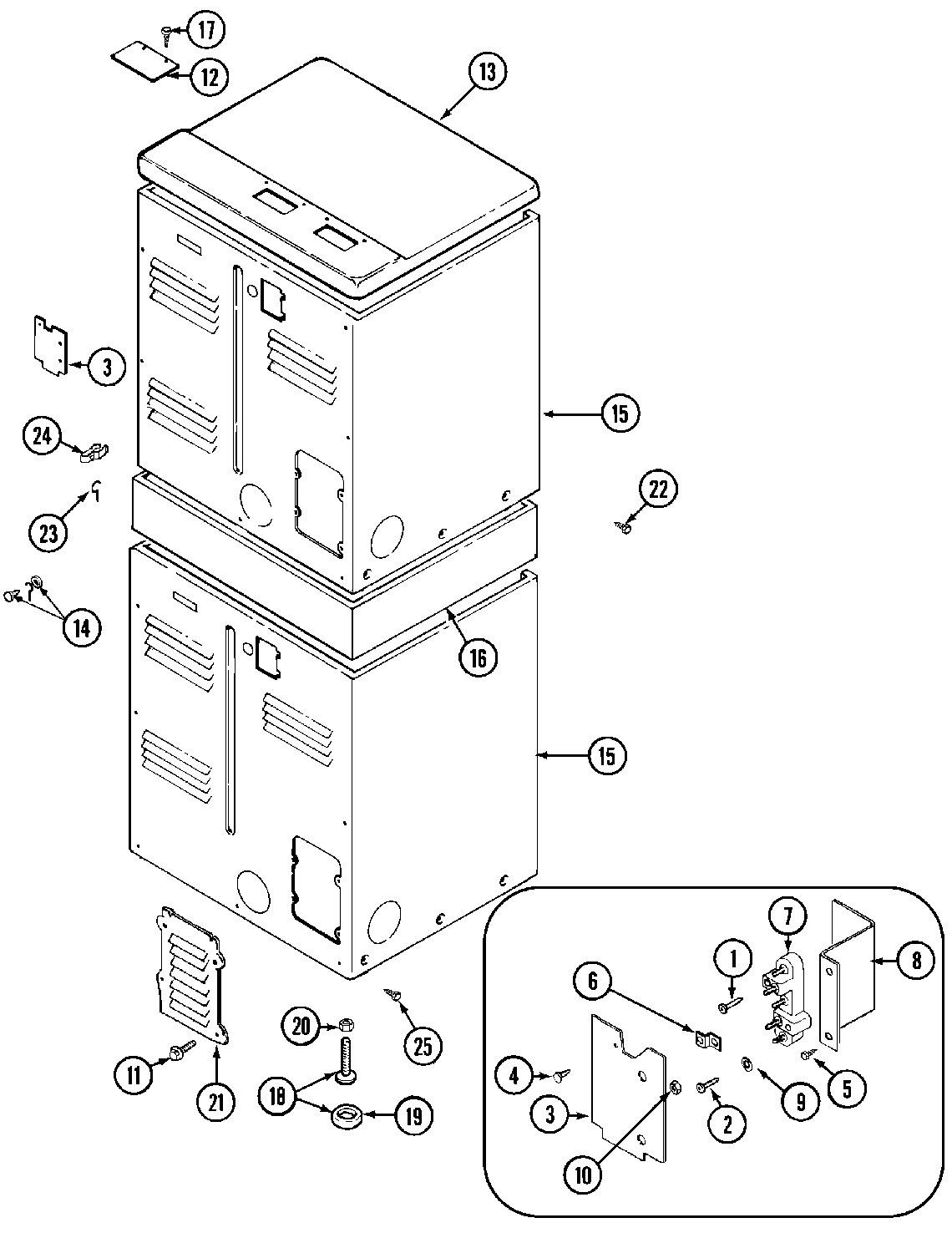

MDE11MNADW 05 – REAR

Products

Position	Product
003	MAY Y312905
004	MAY Y313561
005	SCREW, No.10-24 X 3/4 INCH—–O
006	PART NOT USED
007	PART NOT USED
008	PART NOT USED
009	WP311093 Whirlpool Washer 7
009	WPY311270 Whirlpool Washer TE
010	WP112432 Whirlpool Nut Assembly
011	WP90767 Whirlpool Screw
013	MAY 33001165
013	MAY 33001161
017	MAY Y313559
018	LEG, ADJUSTABLE (W/NUT)—S
019	WP210684 Whirlpool Dishwasher Leveling Leg Pad
020	WP210385 Whirlpool Lock Nut
021	MAY Y312951
022	MAY Y310632
022	DOWEL PIN FOR HANDLE
023	WP311155 Whirlpool Wire Assembly
024	MAY 301548
024	MAY 313122
025	213007 Whirlpool Screw #12
