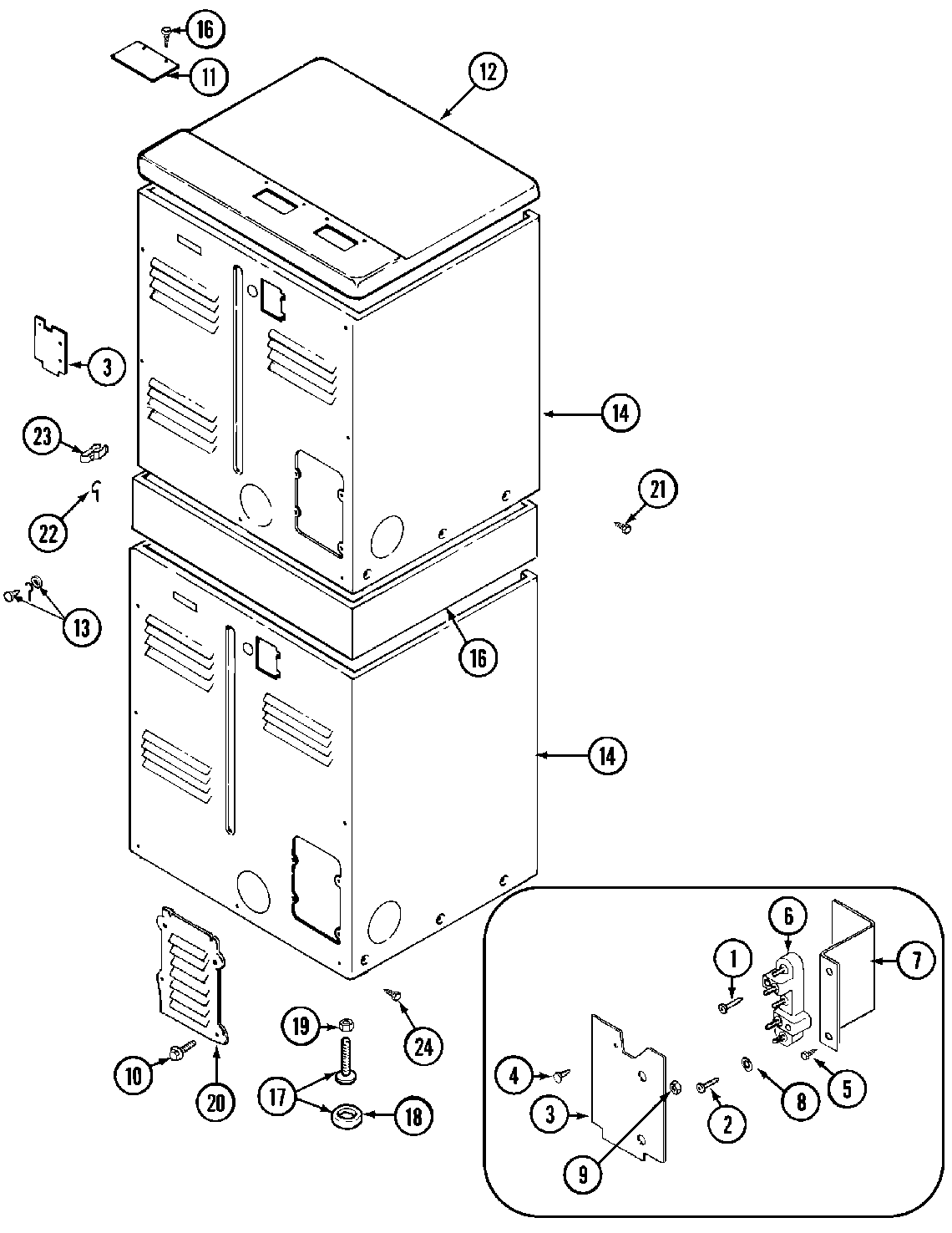

MDE11MNAGW 04 – REAR

Products

Position	Product
003	MAY Y312905
004	MAY Y313561
005	SCREW, No.10-24 X 3/4 INCH—–O
006	PART NOT USED
007	PART NOT USED
008	WP311093 Whirlpool Washer 7
008	WPY311270 Whirlpool Washer TE
008	MAY 910181
009	WP112432 Whirlpool Nut Assembly
010	WP90767 Whirlpool Screw
012	MAY 33001165
016	MAY Y313559
017	LEG, ADJUSTABLE (W/NUT)—S
018	WP210684 Whirlpool Dishwasher Leveling Leg Pad
019	WP210385 Whirlpool Lock Nut
020	MAY Y312951
021	MAY Y310632
021	DOWEL PIN FOR HANDLE
022	WP311155 Whirlpool Wire Assembly
023	MAY 301548
023	MAY 313122
024	213007 Whirlpool Screw #12
