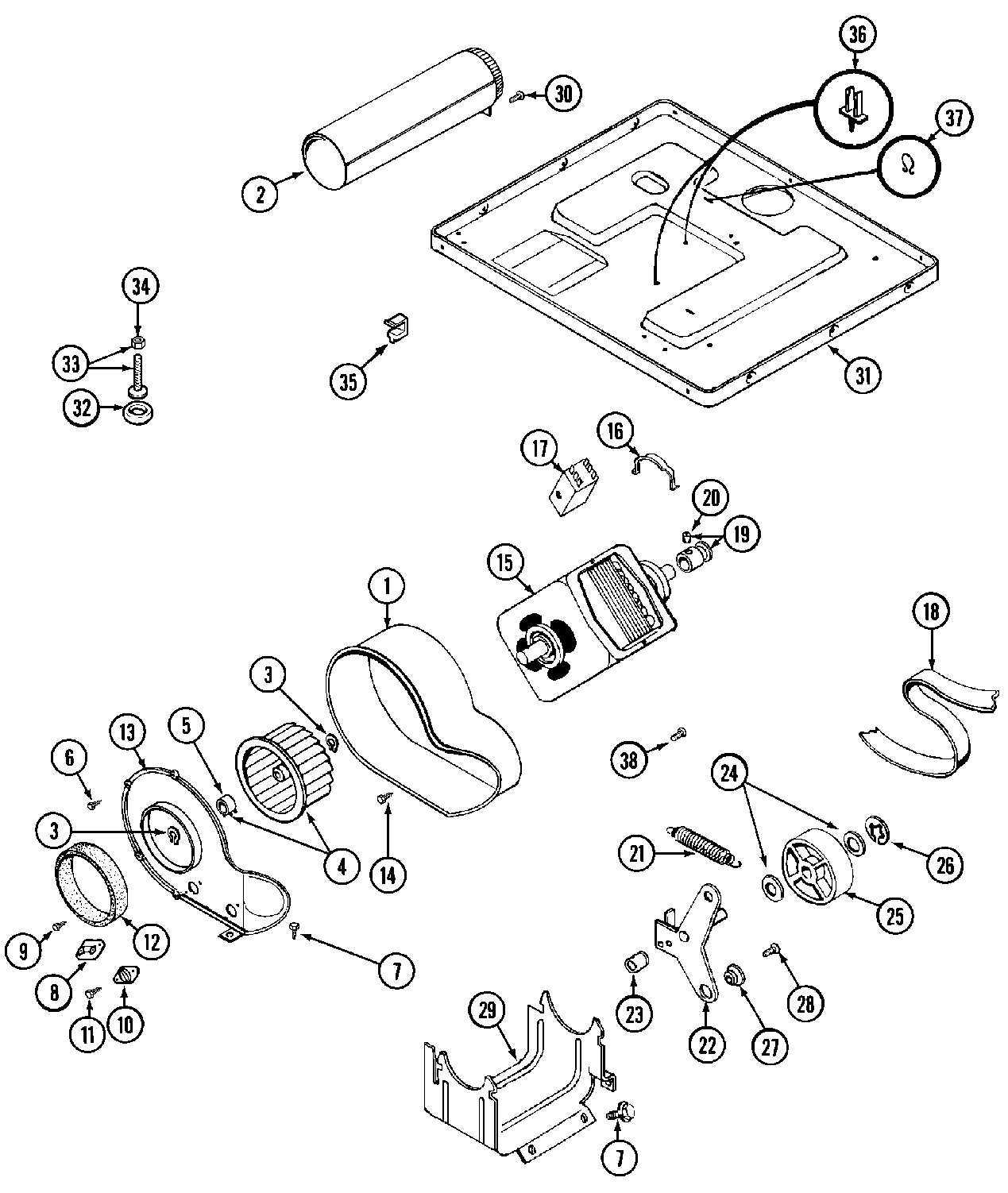

MDE11MNAGW 07 – MOTOR DRIVE

Products

Position	Product
001	MAY Y312893
002	MAY Y303442
003	WP9703438 Whirlpool Snap Retaining Ring
004	Y303836 Whirlpool Dryer Blower Wheel
005	WP312967 Whirlpool Clamp
007	MAY Y313561
008	WP694674 Whirlpool Cycling Thermostat
008	PART NOT USED
008	MAY 33001306
009	WP90767 Whirlpool Screw
010	WP306604 Whirlpool Cut-off
012	WPY312901 Whirlpool Blow Seal
013	COVER, BLOWER
014	MAY 314818
015	MAY Y304656
016	WPY015825 Whirlpool Motor Clip
017	MAY Y303879
017	MAY 306207
017	MAY Y303877
018	WPY312959 Whirlpool Dryer Drum Belt
019	MAY 305186
020	MAY Y053241
021	MAY Y303945
022	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
023	WPW10116756 Whirlpool Spacer
024	MAY Y312527
025	WP6-3037050 Whirlpool Idler Pulley
026	WP354987 Whirlpool C-Clip
027	SLEEVE, IDLER ARM —-S
028	WPY014874 Whirlpool Screw
029	DOWEL PIN FOR HANDLE
030	MAY Y310632
031	MAY Y307482
031	MAY 306530
032	WP210684 Whirlpool Dishwasher Leveling Leg Pad
033	LEG, ADJUSTABLE (W/NUT)—S
034	WP210385 Whirlpool Lock Nut
035	MAY Y310376
036	MAY 315471
037	MAY 410490
038	WPW10116751 Whirlpool Screw
