MDE11PDACL 03 – DOOR

MDE11PDACL 03 – DOOR

Written by

in

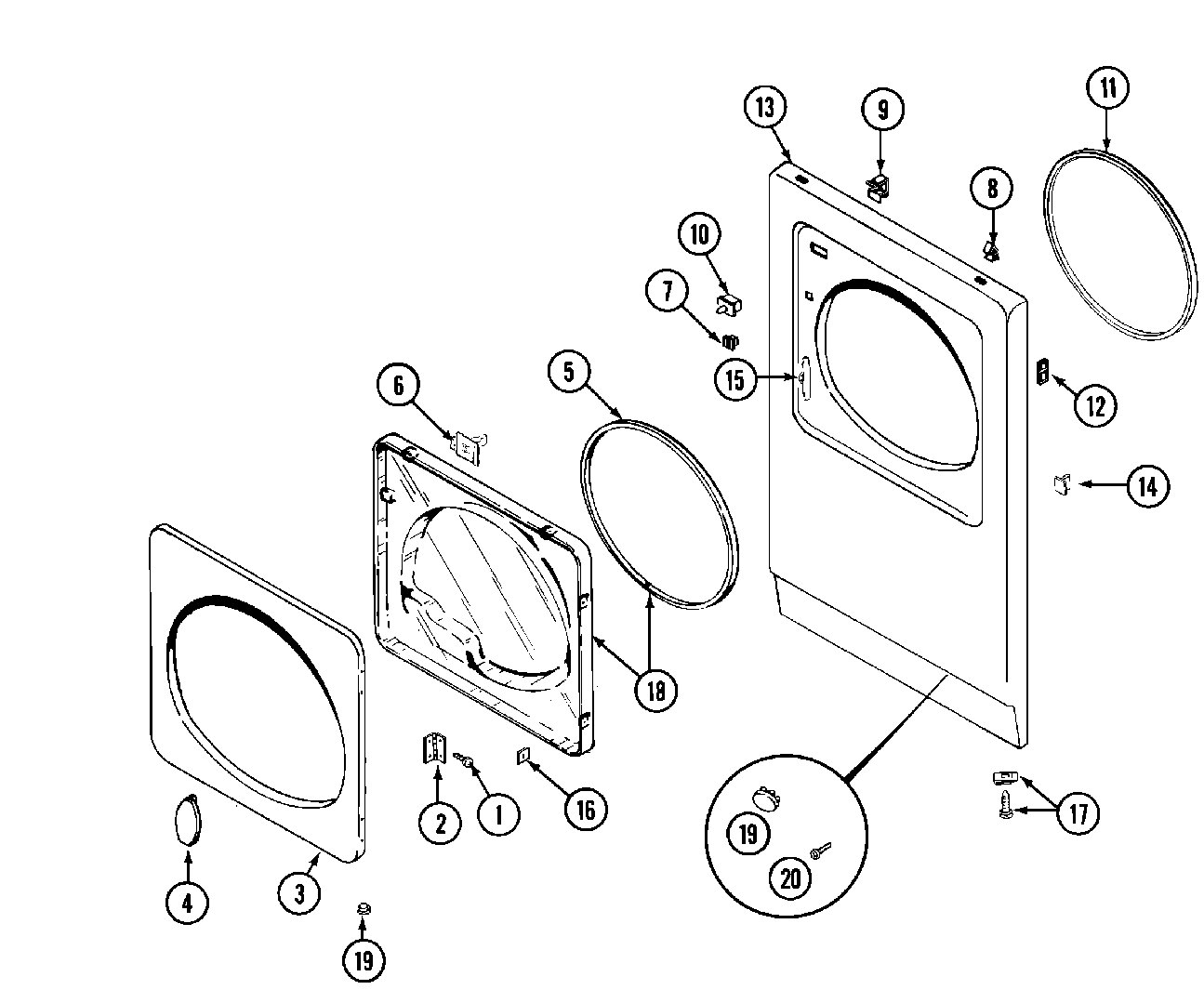

MDE11PDACL 03 – DOOR

Products

PositionProduct
002MAY 33001230
003MAY 314967
004MAY 314939
004MAY 314974
005MAY 33001192
006WP33001305 Whirlpool Door Strike Assembly
007MAY Y304578
008MAY 212982
009MAY Y310376
010MAY 33001420
010W10169313 Whirlpool Door Switch Kit
011MAY 314937
013(WHT)
015MAY 33001175
015MAY 33001176
016CLIP, DOOR LINER
017MAY 314666
017DOWEL PIN FOR HANDLE
017SCREW & FSTNER ASSY (FT. PNL)
018MAY 33001203
019MAY 33001132
019MAY 33001168
020SCREW, FRONT & EXTRUSION
