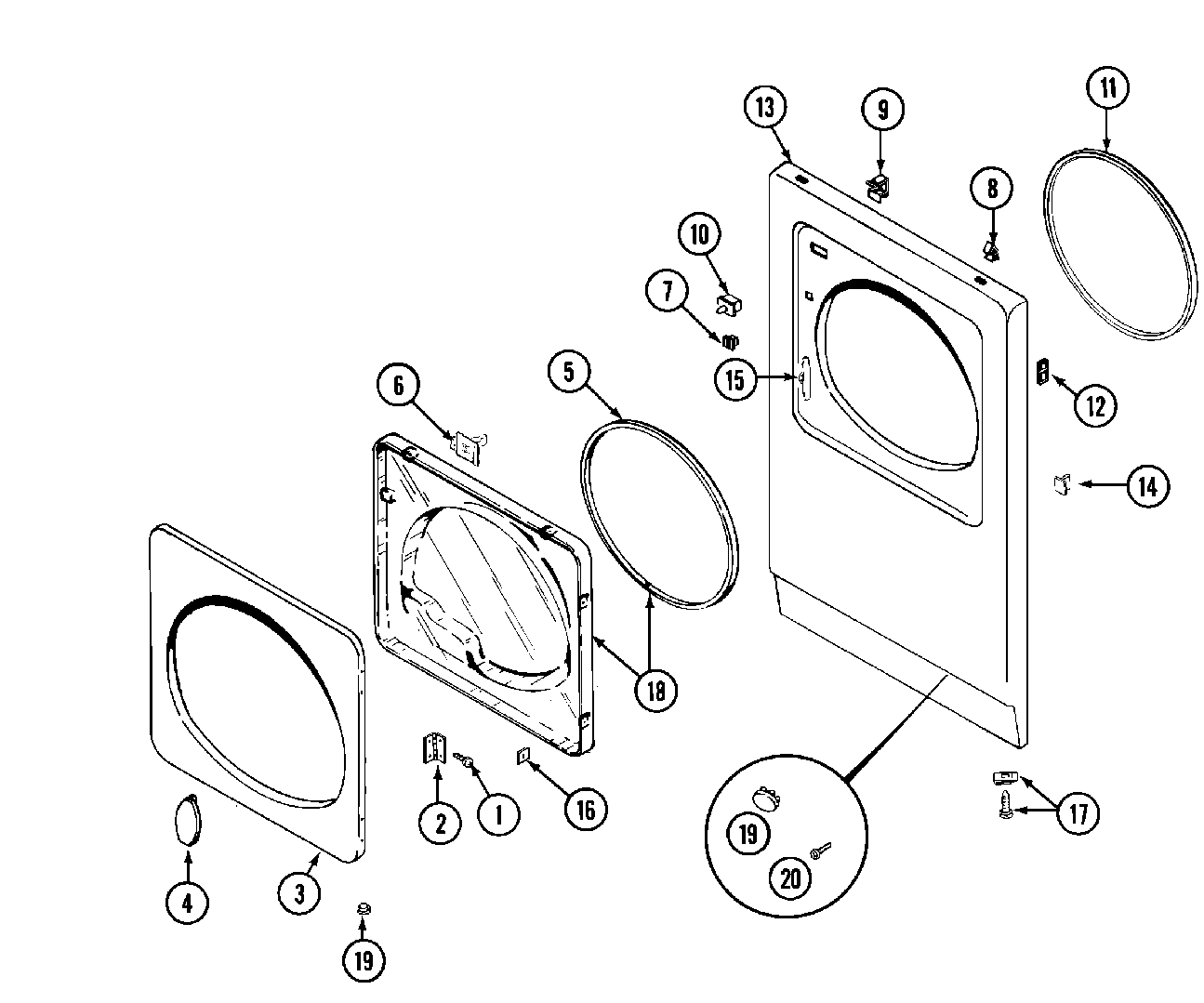

MDE11PDADL 04 – DOOR

Products

Position	Product
002	MAY 33001230
003	MAY 314967
004	MAY 314939
004	MAY 314974
005	MAY 33001192
006	WP33001305 Whirlpool Door Strike Assembly
007	MAY Y304578
008	MAY 212982
009	MAY Y310376
010	MAY 33001420
010	W10169313 Whirlpool Door Switch Kit
011	MAY 314937
013	(WHT)
015	MAY 33001175
015	MAY 33001176
016	CLIP, DOOR LINER
017	MAY 314666
017	DOWEL PIN FOR HANDLE
017	SCREW & FSTNER ASSY (FT. PNL)
018	MAY 33001203
019	MAY 33001132
019	MAY 33001168
020	SCREW, FRONT & EXTRUSION
