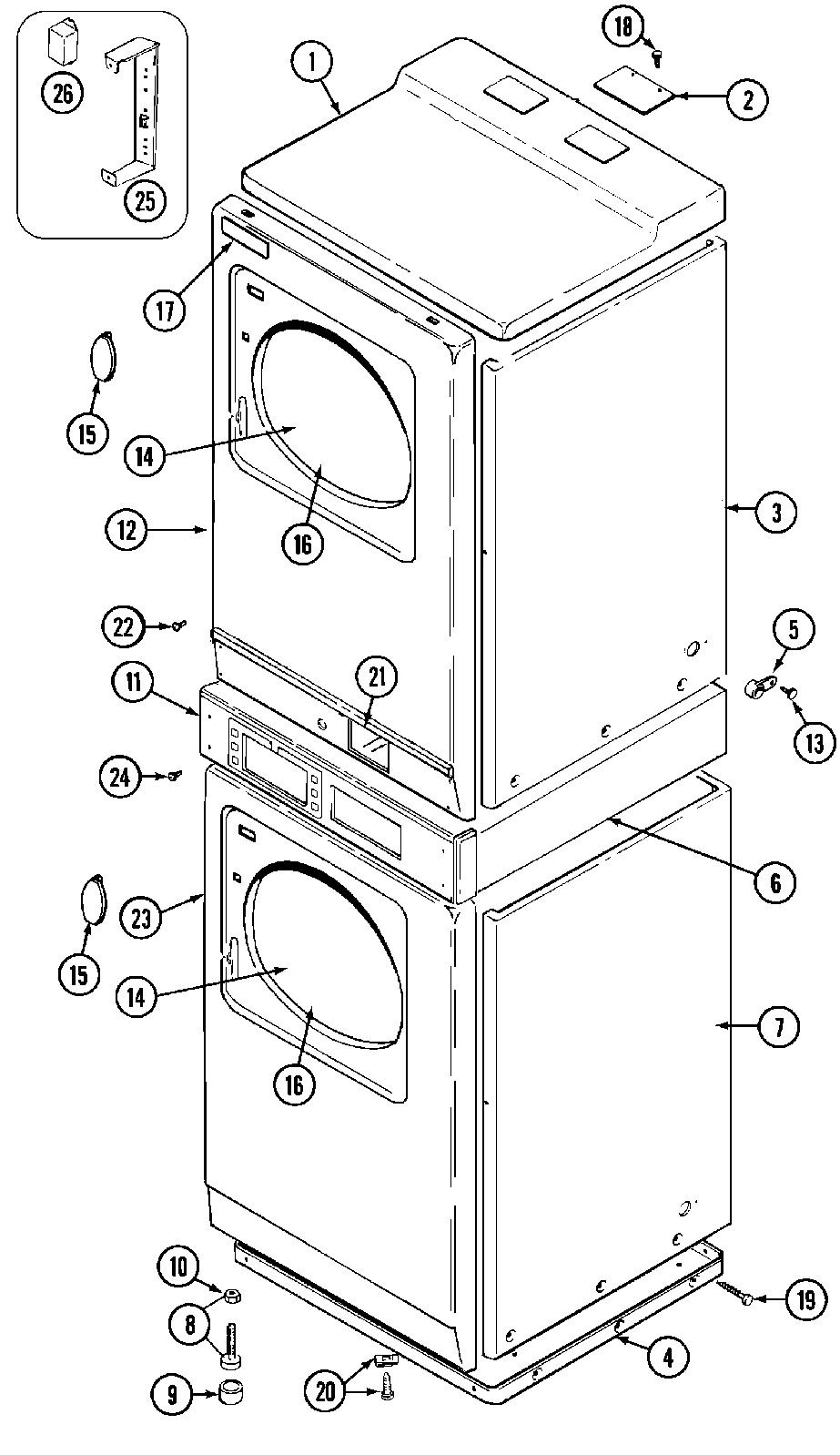

MDE11PDAEL 02 – FRONT VIEW

Products

Position	Product
001	MAY 33001165
004	MAY 306530
004	MAY 306261
005	CABLE STRAP-HARNESS TO BASE
006	MAY 314663
006	MAY 911050
006	MAY 310933
008	LEG, ADJUSTABLE (W/NUT)---S
009	WP210684 Whirlpool Dishwasher Leveling Leg Pad
010	WP210385 Whirlpool Lock Nut
011	EXTRUSION, CONTROL (LWR)
012	MAY 314666
012	(WHT)
013	WPW10139210 Whirlpool Screw
014	MAY 33001203
015	MAY 314939
015	MAY 314974
016	MAY 314967
018	MAY Y313559
019	213007 Whirlpool Screw #12
020	SCREW & FSTNER ASSY (FT. PNL)
022	SCREW, FRONT & EXTRUSION
023	MAY 33001168
023	MAY 33001132
023	DOWEL PIN FOR HANDLE
024	WPW10131119 Whirlpool Screw
025	MAY 314627
025	MAY Y310632
026	WP3177991 Whirlpool Screw
026	MAY 306398
026	MAY 206824
