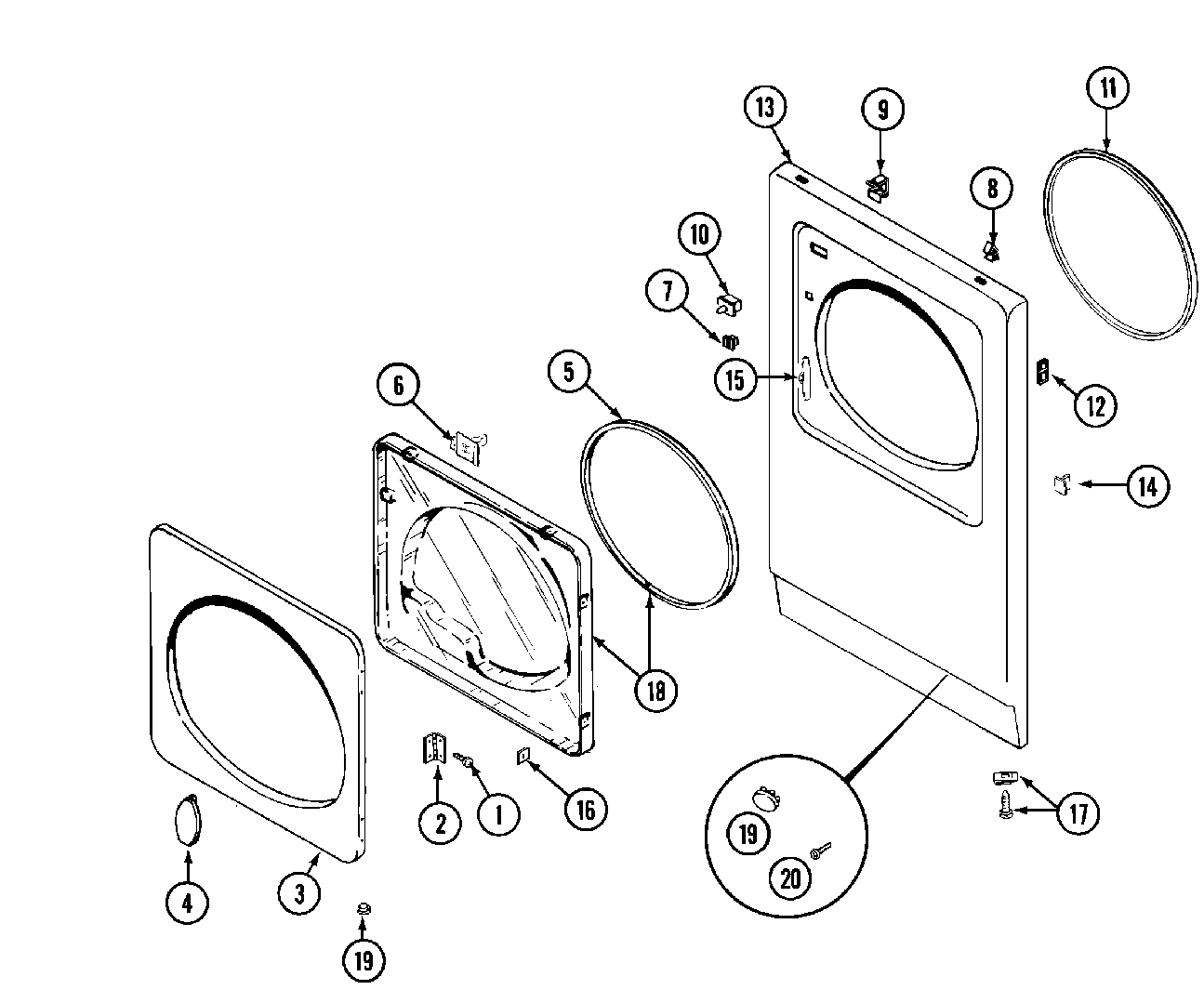

MDE11PDAGL 03 – DOOR
Products
| Position | Product |
|---|---|
| 002 | MAY 33001230 |
| 003 | MAY 314967 |
| 004 | MAY 314974 |
| 004 | MAY 314939 |
| 005 | MAY 33001304 |
| 006 | WP33001305 Whirlpool Door Strike Assembly |
| 007 | MAY Y304578 |
| 008 | MAY 212982 |
| 009 | MAY Y310376 |
| 010 | MAY 33001420 |
| 011 | MAY 314937 |
| 013 | MAY 33001419 |
| 015 | MAY 33001176 |
| 015 | MAY 33001175 |
| 016 | CLIP, DOOR LINER |
| 017 | DOWEL PIN FOR HANDLE |
| 017 | MAY 314666 |
| 017 | SCREW & FSTNER ASSY (FT. PNL) |
| 018 | MAY 33001203 |
| 019 | MAY 33001168 |
| 019 | MAY 33001132 |
| 020 | SCREW, FRONT & EXTRUSION |
