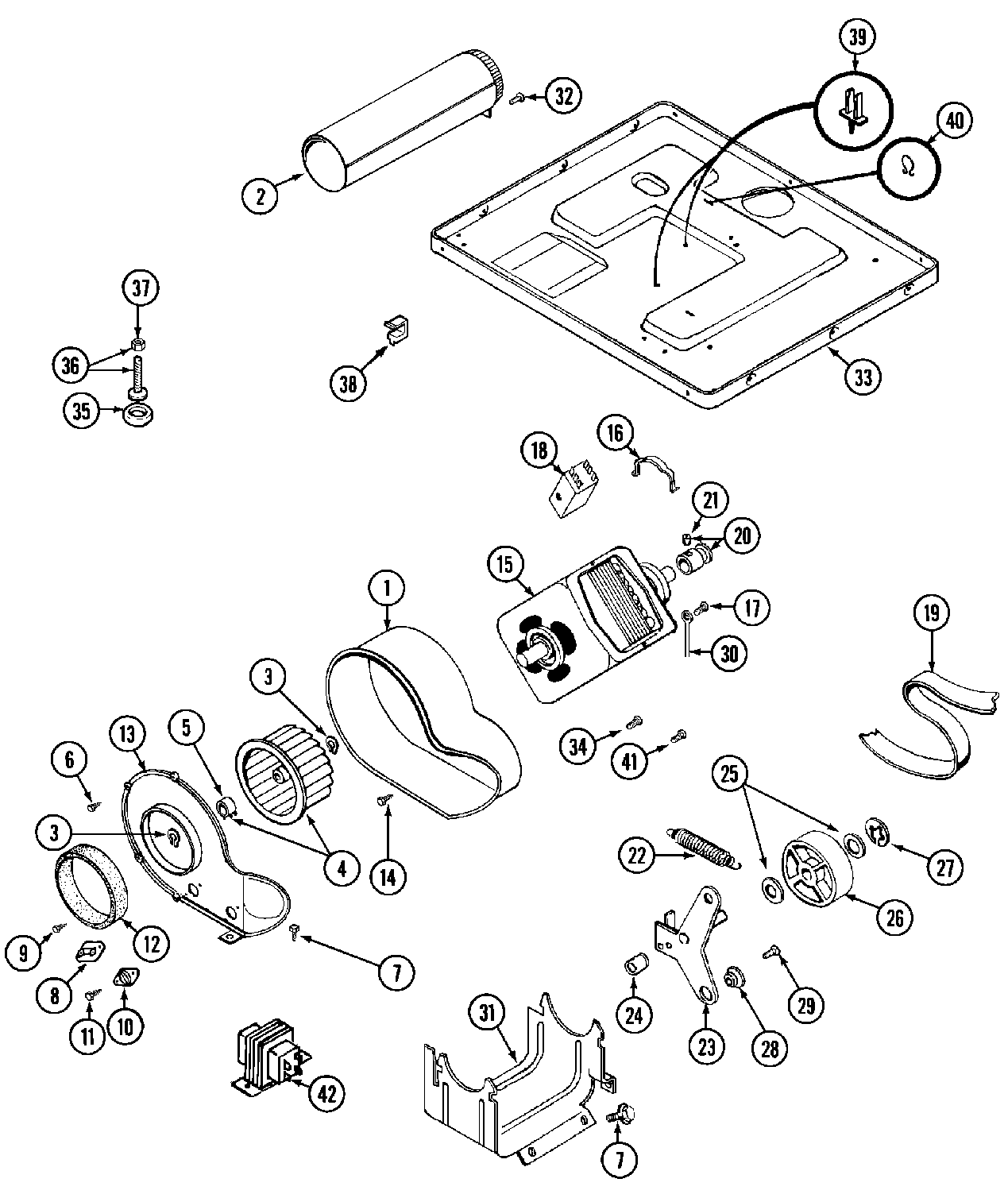

MDE12CSAGW 06 – MOTOR DRIVE

Products

Position	Product
001	MAY Y312893
002	MAY Y303442
003	WP9703438 Whirlpool Snap Retaining Ring
004	Y303836 Whirlpool Dryer Blower Wheel
005	WP312967 Whirlpool Clamp
007	MAY Y313561
008	WP694674 Whirlpool Cycling Thermostat
008	PART NOT USED
008	THERMOSTAT, MULTI-TEMPERATURE
010	WP306604 Whirlpool Cut-off
012	WPY312901 Whirlpool Blow Seal
013	COVER, BLOWER
014	MAY 314818
015	MAY Y304656
016	WPY015825 Whirlpool Motor Clip
017	MAY 910343
018	MAY Y303879
018	MAY Y303877
018	MAY 306207
019	WPY312959 Whirlpool Dryer Drum Belt
020	MAY 305186
021	MAY Y053241
022	MAY Y303945
023	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
024	WPW10116756 Whirlpool Spacer
025	MAY Y312527
026	WP6-3037050 Whirlpool Idler Pulley
027	WP354987 Whirlpool C-Clip
028	SLEEVE, IDLER ARM ----S
029	WPY014874 Whirlpool Screw
030	MAY 901220
031	DOWEL PIN FOR HANDLE
032	MAY Y310632
033	MAY Y305084
035	WPY314137 Whirlpool Rubber Foot
036	W10176519 Whirlpool Leveling Feet
037	WP62739 Whirlpool Nut
038	MAY Y310376
039	MAY 315471
040	MAY 410490
041	WPW10116751 Whirlpool Screw
042	MAY 307928
042	WP90767 Whirlpool Screw
