MDE12PDBCW 03 – CABINET-FRONT

MDE12PDBCW 03 – CABINET-FRONT

Written by

in

MDE12PDBCW 03 – CABINET-FRONT

Products

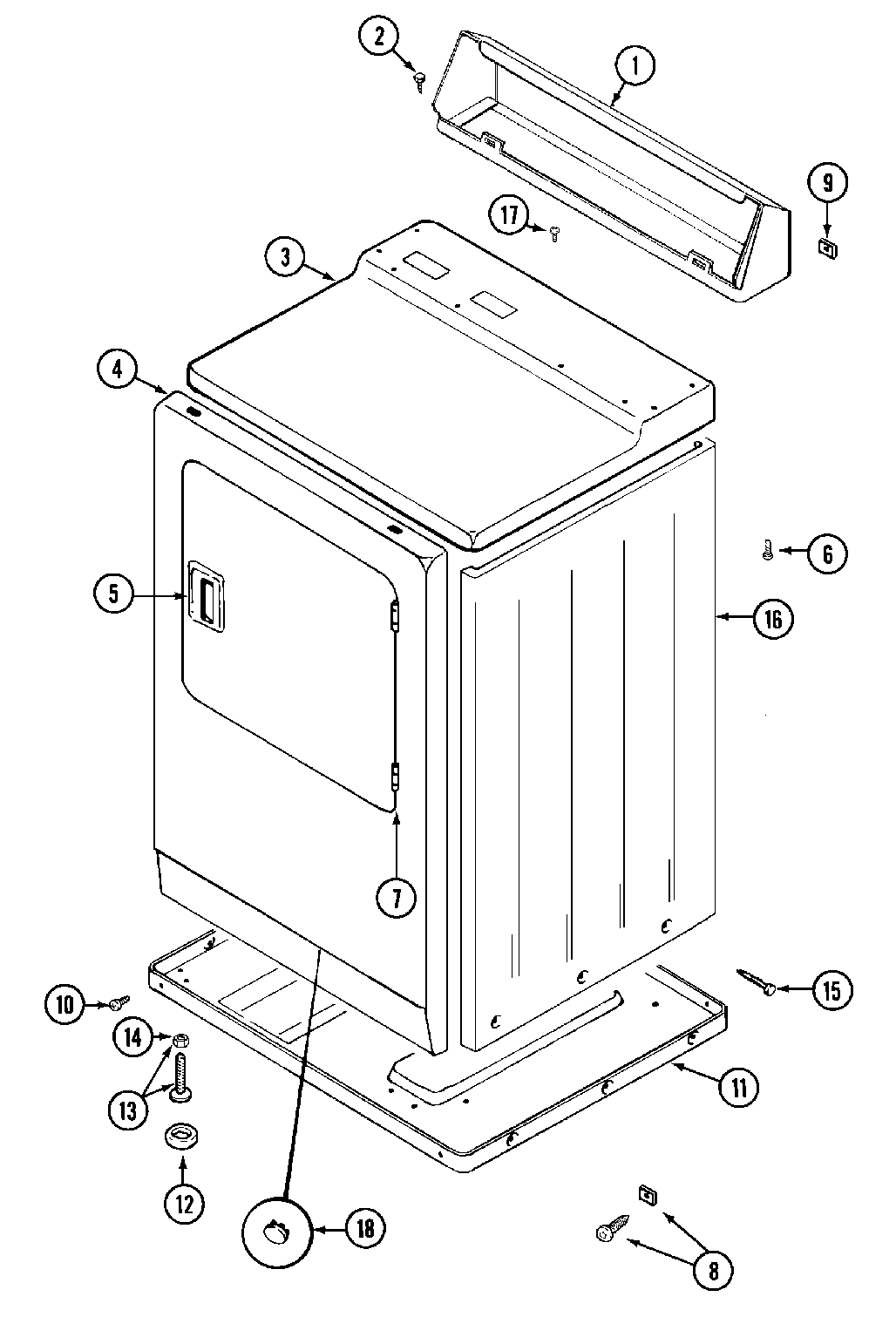

PositionProduct
002MAY 212276
003MAY 33001740
004WP98008544 Whirlpool Screw Assembly
005MAY 33001254
006MAY 214354
007MAY 33001230
008WP22001496 Whirlpool Screw
009MAY 215075
010MAY Y310632
010MAY Y313561
011MAY Y303361
012WPY314137 Whirlpool Rubber Foot
013W10176519 Whirlpool Leveling Feet
014WP62739 Whirlpool Nut
015213007 Whirlpool Screw #12
016DOWEL PIN FOR HANDLE
017MAY 210186
018MAY 33001614
018MAY 33001615
