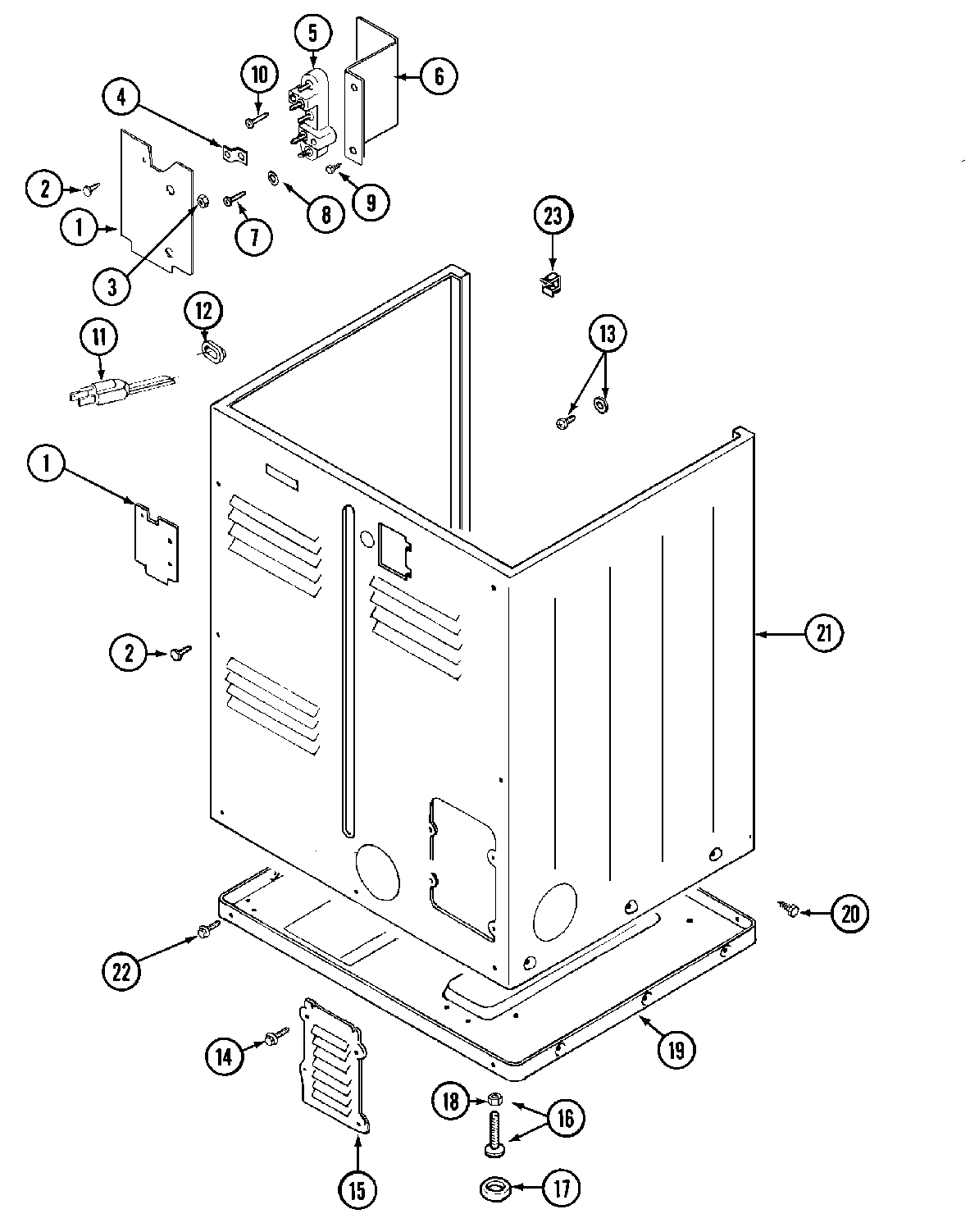

MDE12PRACW 09 – CABINET-REAR

MDE12PRACW 09 – CABINET-REAR

Written by

in

MDE12PRACW 09 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005W11705611 Whirlpool Block Ter
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008WPY311270 Whirlpool Washer TE
011MAY 33001425
011MAY 33001246
012GROMMET
014MAY 216423
015MAY Y312951
016W10176519 Whirlpool Leveling Feet
017WPY314137 Whirlpool Rubber Foot
018WP62739 Whirlpool Nut
019MAY Y303361
020213007 Whirlpool Screw #12
021DOWEL PIN FOR HANDLE
022MAY Y313561
022MAY Y310632
023MAY Y310376
