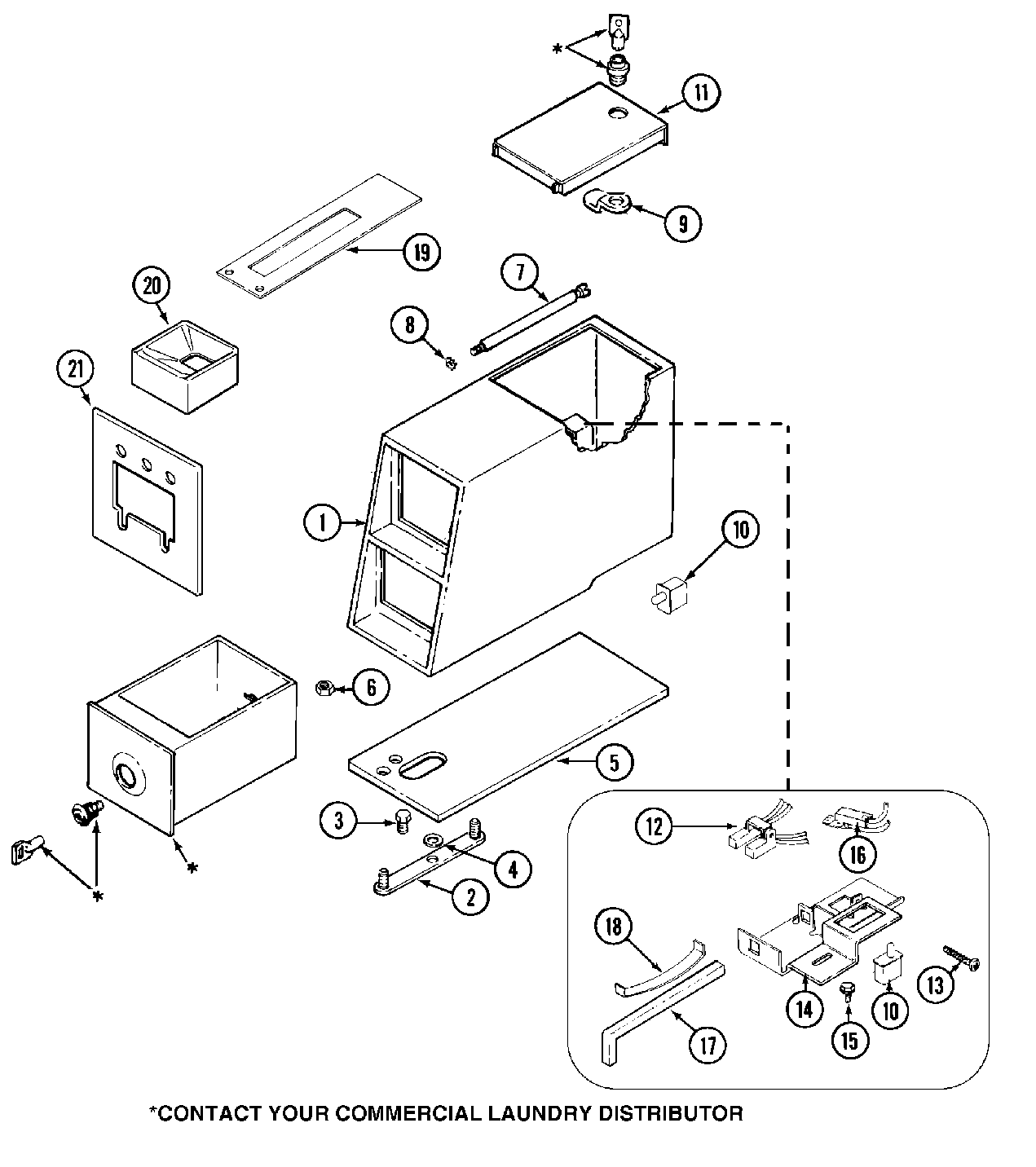

MDE12PSADW 06 – CONTROL CENTER

Products

Position	Product
001	MAY 22001871
002	MAY 22001810
003	WP90767 Whirlpool Screw
004	MAY 910309
005	MAY 22001870
006	WP62739 Whirlpool Nut
007	BOLT, LOCKING
008	MAY 910387
010	MAY 912012
010	WPW10131838 Whirlpool Voltage Switch
011	MAY 22001910
012	MAY 206799
013	WP3395530 Whirlpool Screw
014	MAY 33001253
015	MAY 212276
015	MAY 211605
016	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
017	MAY 216442
018	SPRING, SWITCH ROD
019	MAY 22001812
020	WP22002478 Whirlpool Case
021	PLATE, ADAPTER (WHT)
022	DOWEL PIN FOR HANDLE
