MDE12PSBCW 05 – CABINET-REAR – Aparts

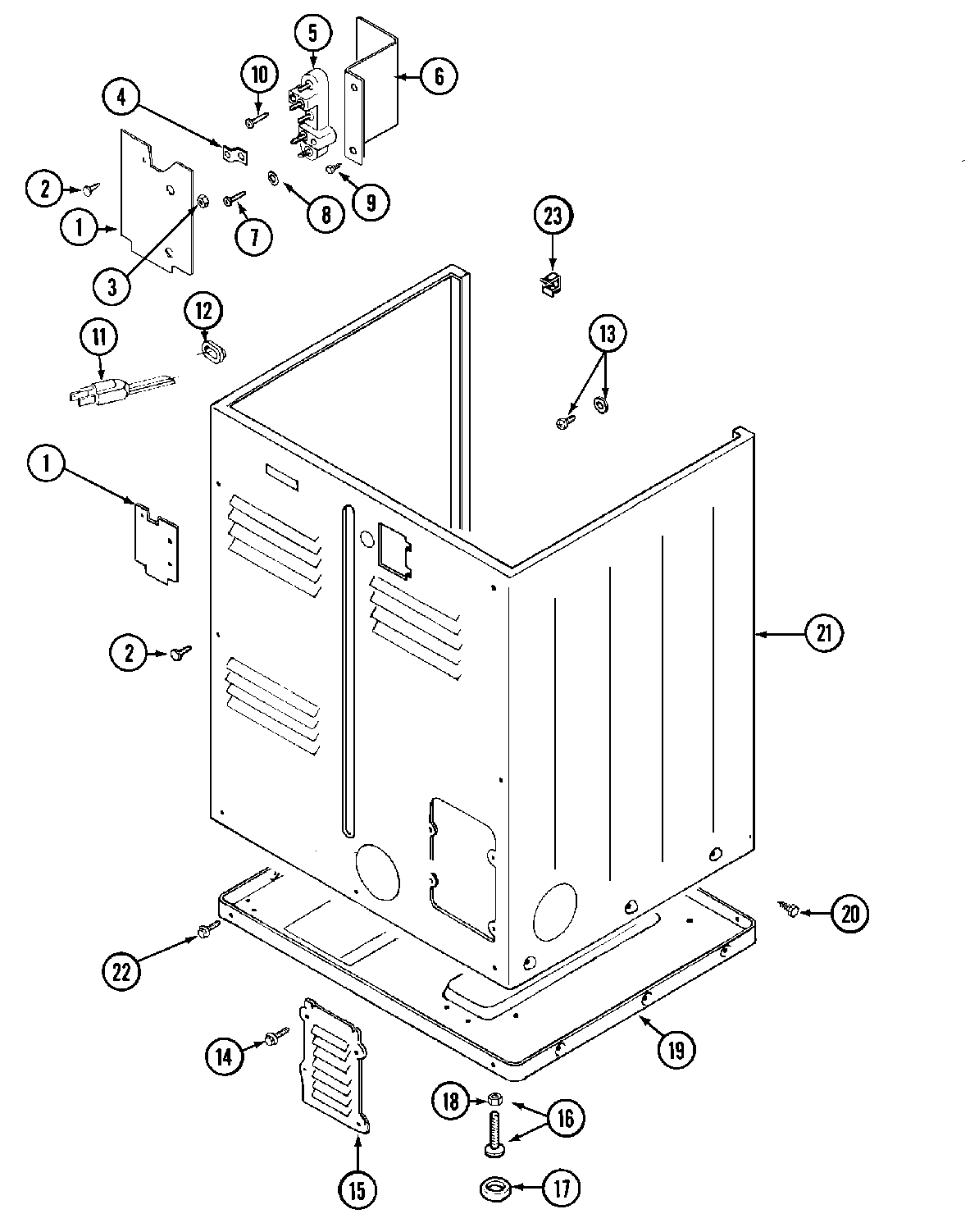

MDE12PSBCW 05 – CABINET-REAR

Products

Position	Product
001	MAY Y312905
003	WP112432 Whirlpool Nut Assembly
004	PART NOT USED
005	W11705611 Whirlpool Block Ter
006	PART NOT USED
007	SCREW, No.10-24 X 3/4 INCH-----O
008	WPY311270 Whirlpool Washer TE
011	MAY 305168
011	MAY 33001425
011	CORD, POWER (GAS MODEL)
012	GROMMET
014	MAY 216423
015	MAY Y312951
016	W10176519 Whirlpool Leveling Feet
017	WPY314137 Whirlpool Rubber Foot
018	WP62739 Whirlpool Nut
019	MAY Y303361
020	213007 Whirlpool Screw #12
021	DOWEL PIN FOR HANDLE
022	MAY Y313561
022	MAY Y310632
023	MAY Y310376
