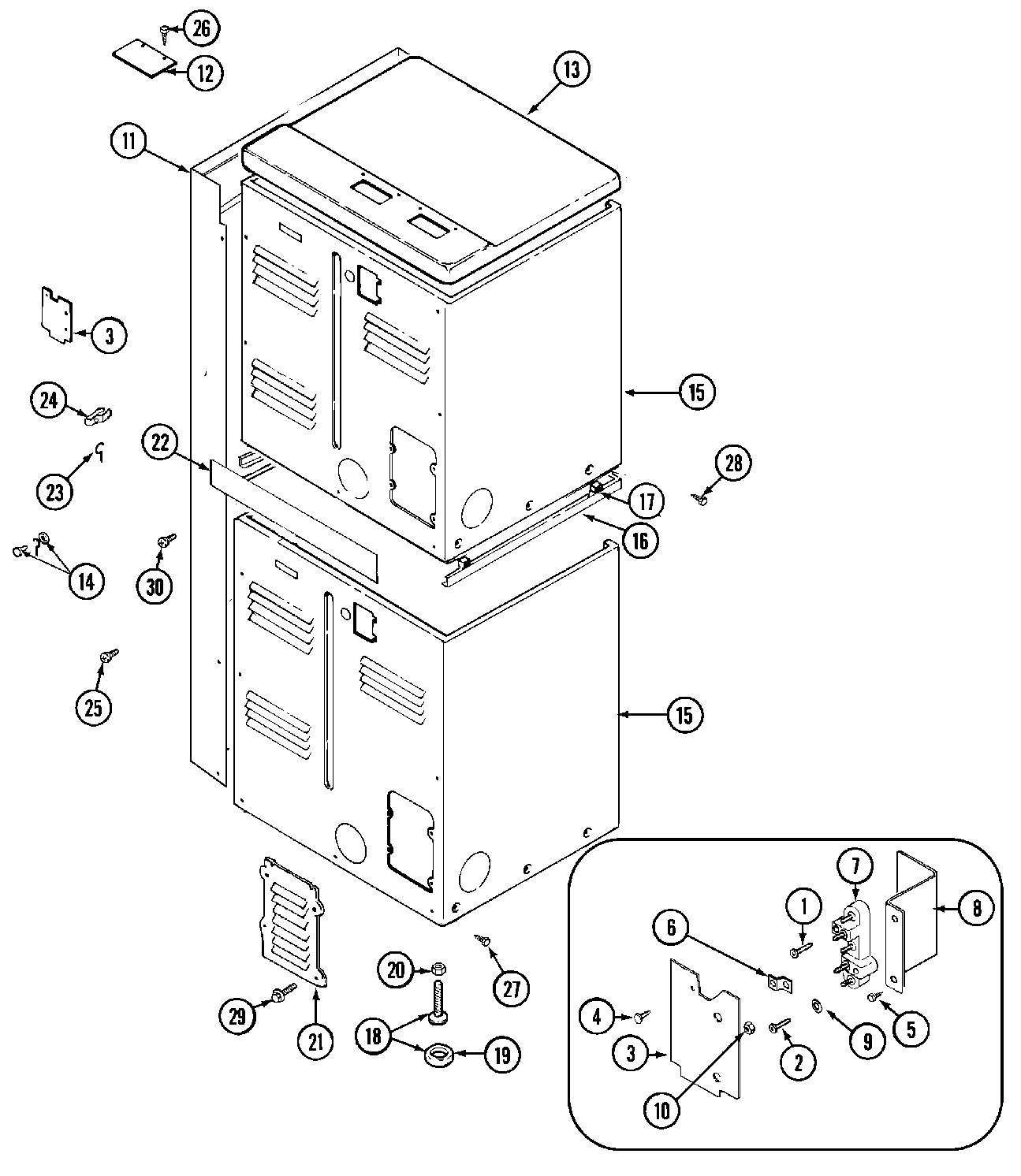

MDE13CSACL 05 – REAR

Products

Position	Product
003	MAY Y312905
005	SCREW, No.10-24 X 3/4 INCH—–O
006	PART NOT USED
007	W11705611 Whirlpool Block Ter
008	PART NOT USED
009	WPY311270 Whirlpool Washer TE
009	WP311093 Whirlpool Washer 7
010	WP112432 Whirlpool Nut Assembly
013	MAY 33001703
016	MAY 33001302
017	MAY 310933
018	LEG, ADJUSTABLE (W/NUT)—S
019	WP210684 Whirlpool Dishwasher Leveling Leg Pad
020	WP210385 Whirlpool Lock Nut
021	MAY Y312951
023	WP311155 Whirlpool Wire Assembly
024	MAY 301548
026	MAY Y313559
027	213007 Whirlpool Screw #12
028	DOWEL PIN FOR HANDLE
029	MAY 216423
030	MAY Y310632
030	MAY Y313561
